NS-3: Testing Fuel Pump Circuit

Fig 1: Circuit Diagram NS-3 (2.4L)

G90H19981

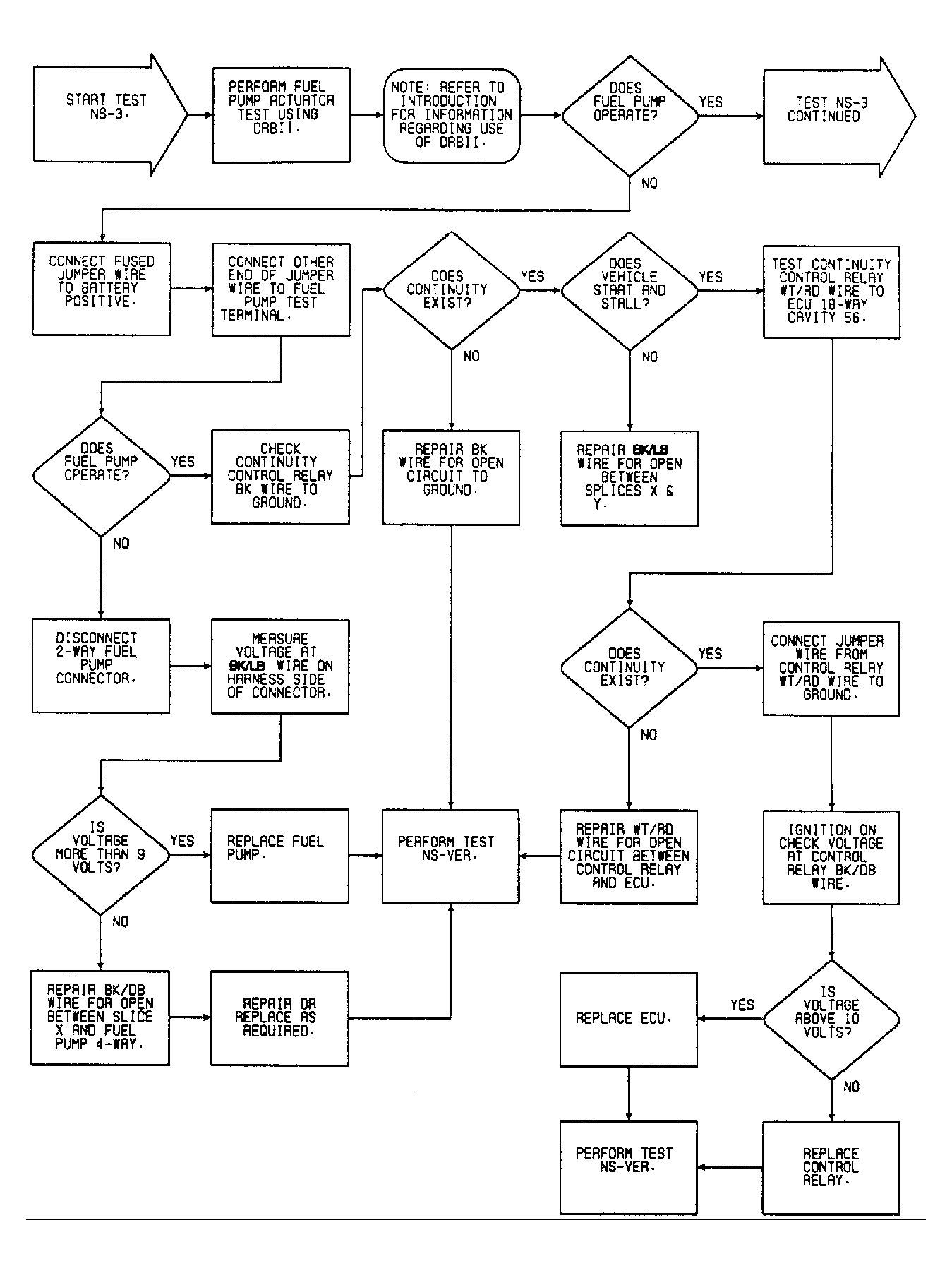

Fig 2: Flow Chart NS-3 (2.4L) (1 of 2)

G90I20014

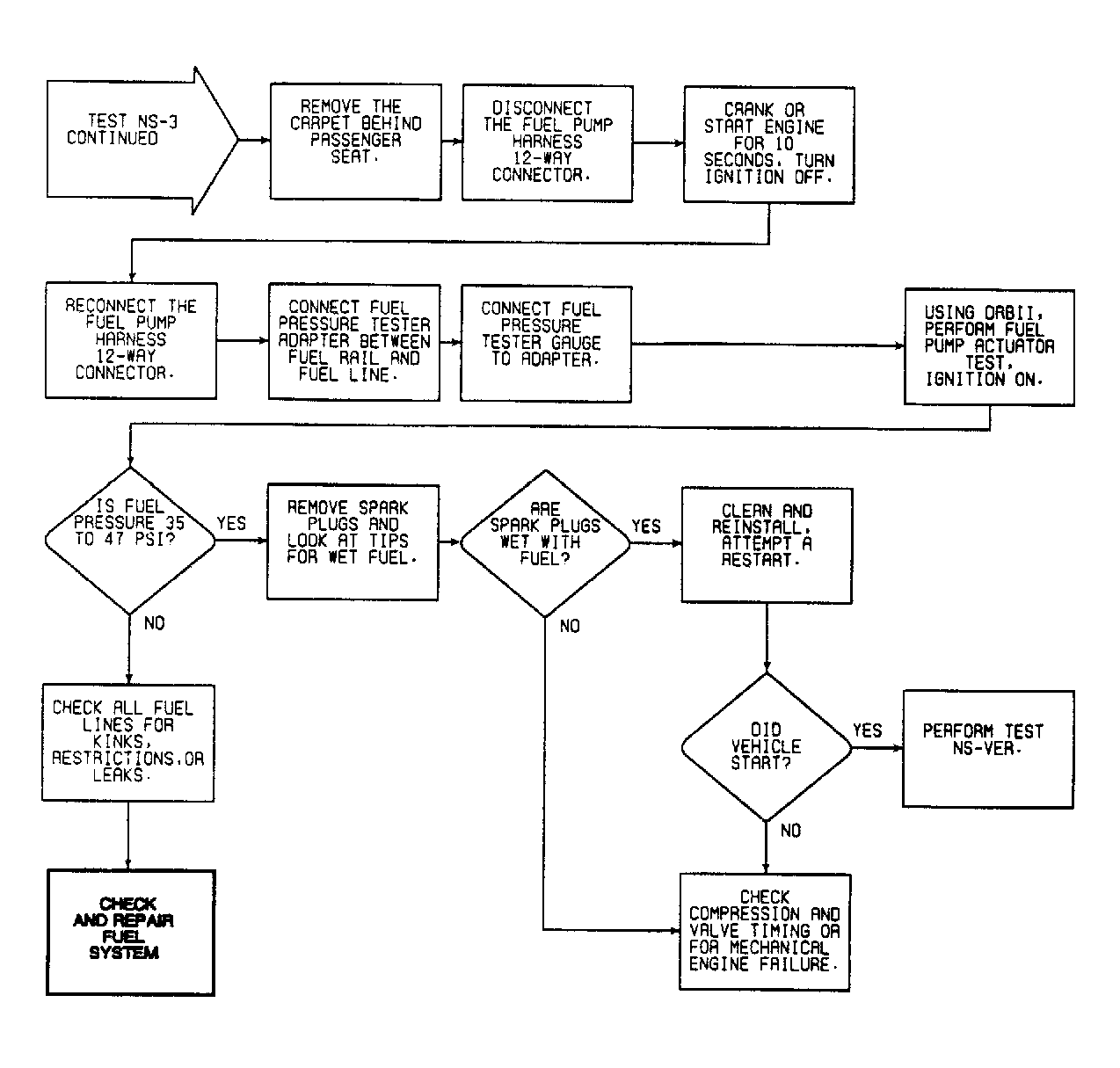

Fig 3: Flow Chart NS-3 (2.4L) (2 of 2)

G90J20015
