Remote Control Mirror Switch

For testing procedure, see Fig 1 .

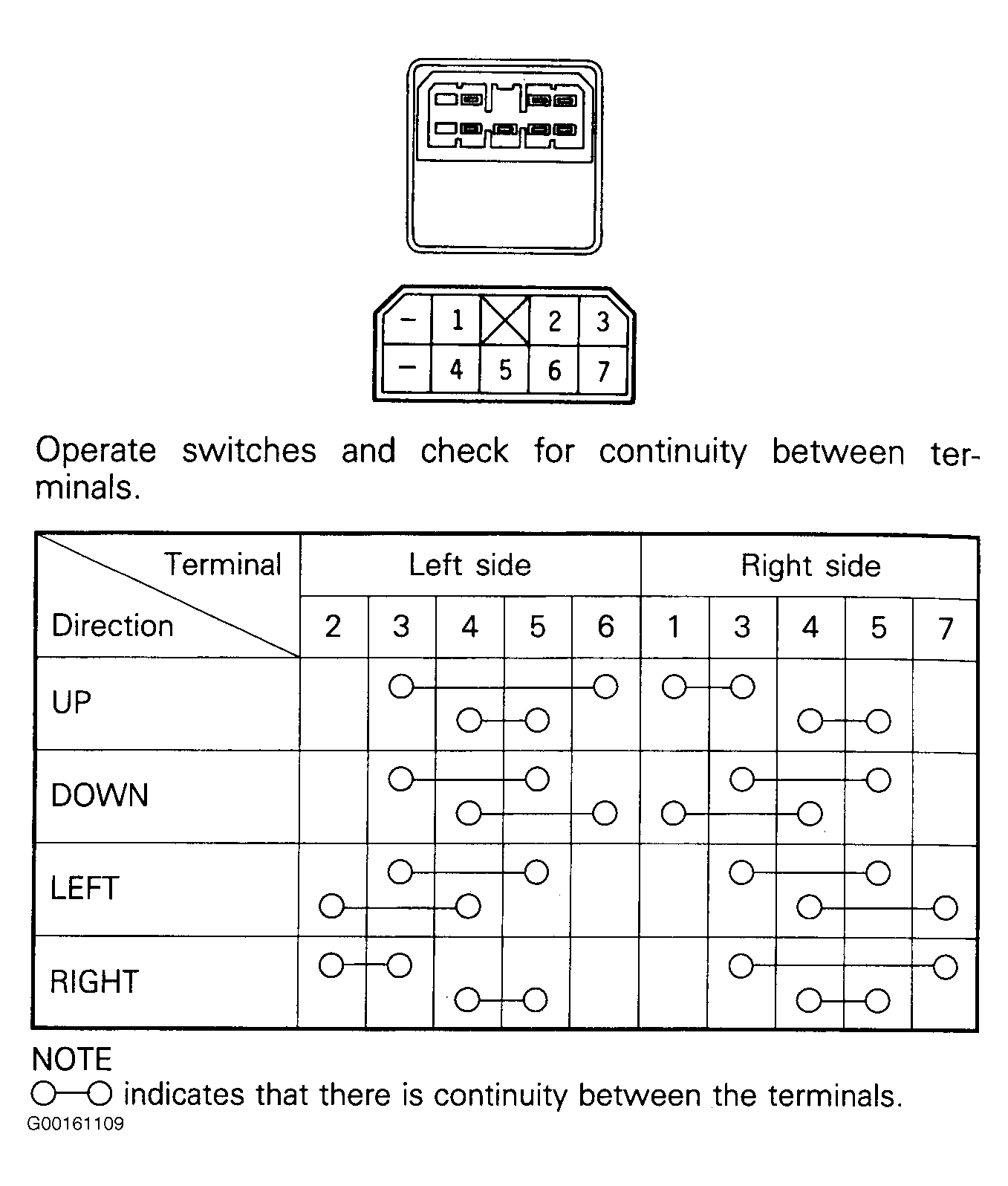

Fig 1: Testing Remote Controlled Mirror Switch
G00161109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
