Component Location

NOTE: The multipurpose (passenger compartment) fuse block is under lower left side of dash.

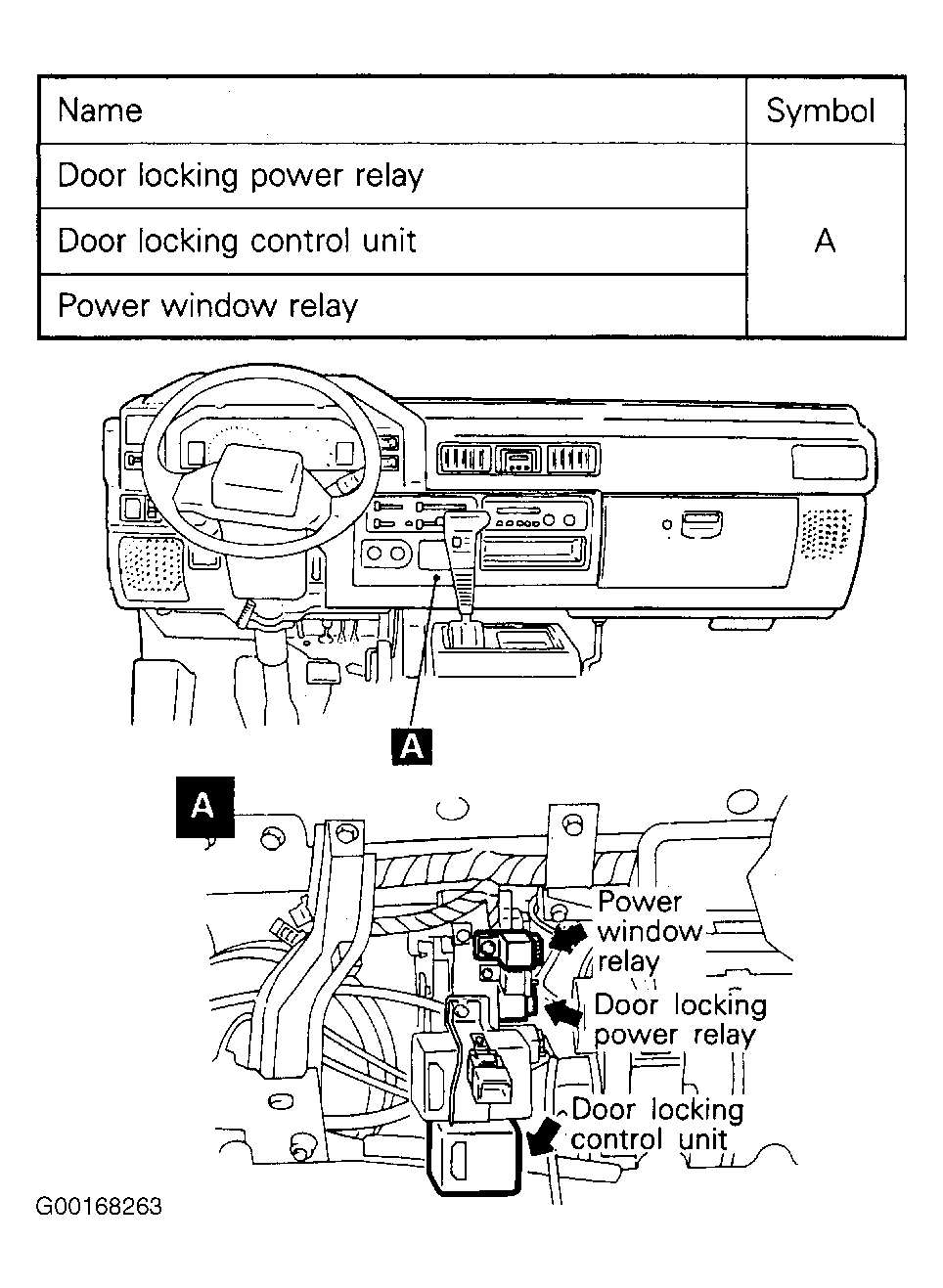

Fig 1: Locating Power Window Relay
G00168263Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
