Circuit Test No. 4: Door Input Switch Circuit

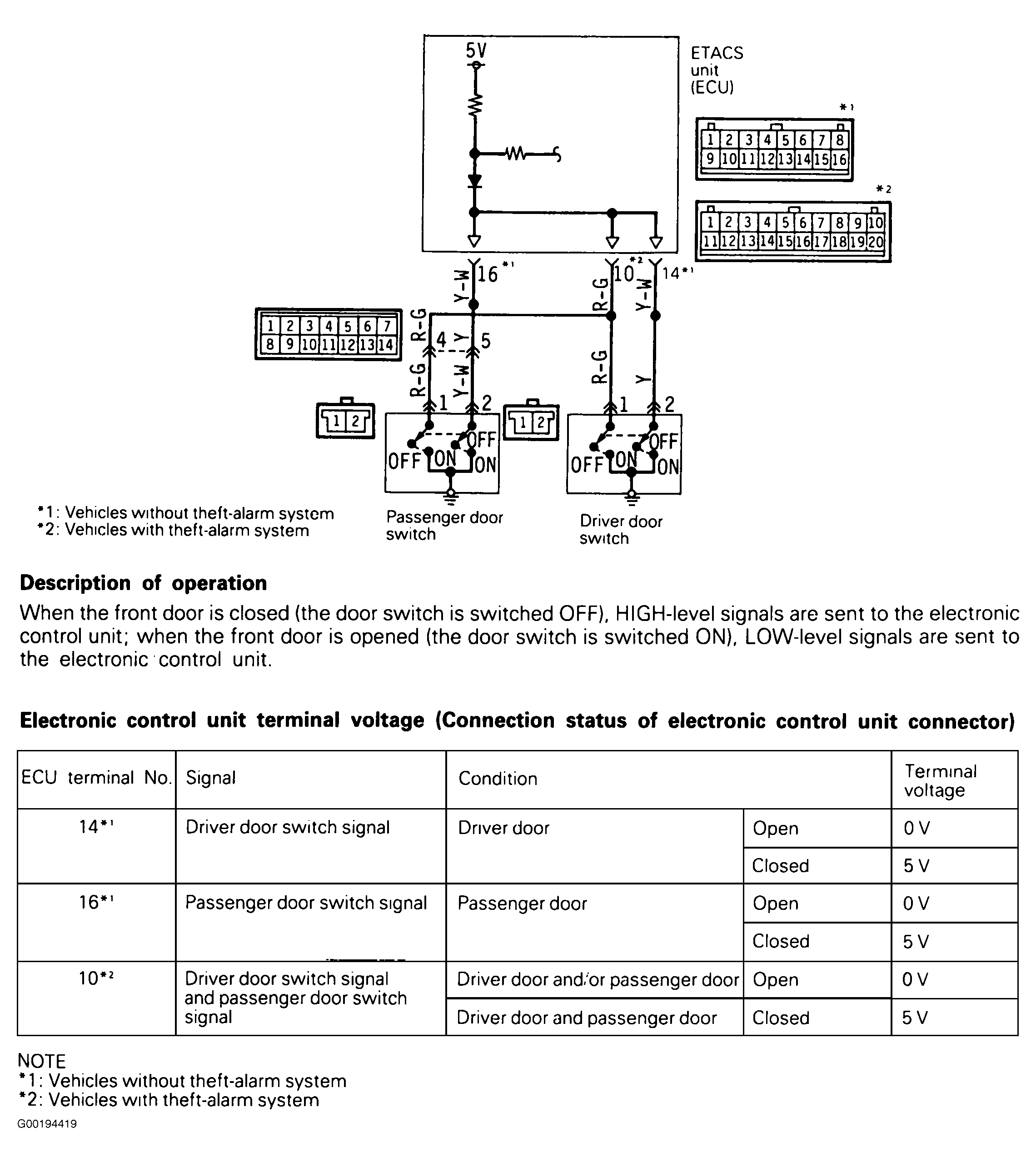

Fig 1: Circuit Test No. 4: Door Input Switch Circuit (1 Of 2)
G00194419Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

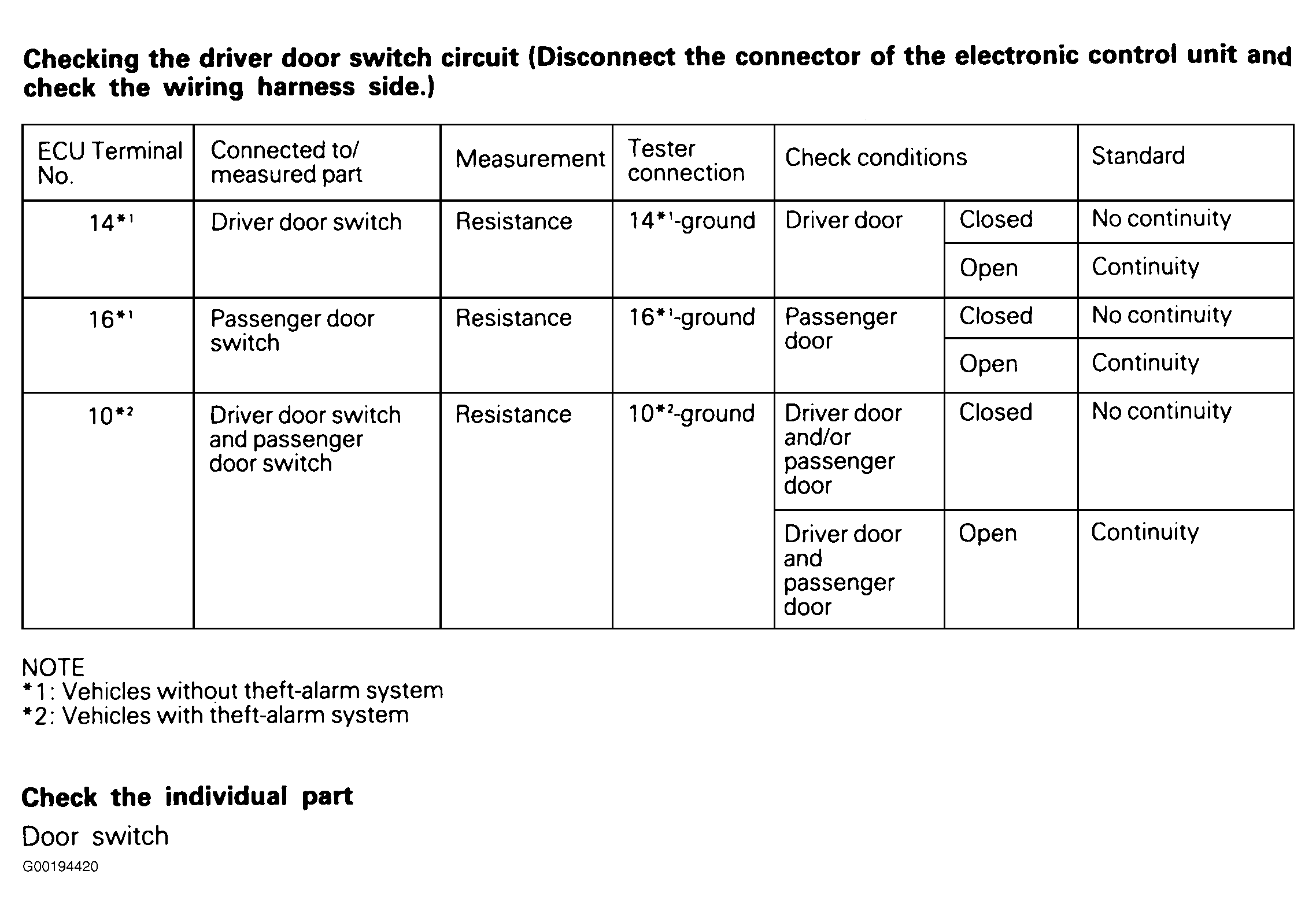

Fig 2: Circuit Test No. 4: Door Input Switch Circuit (2 Of 2)
G00194420Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
