Active Exhaust Control Unit - Turbo

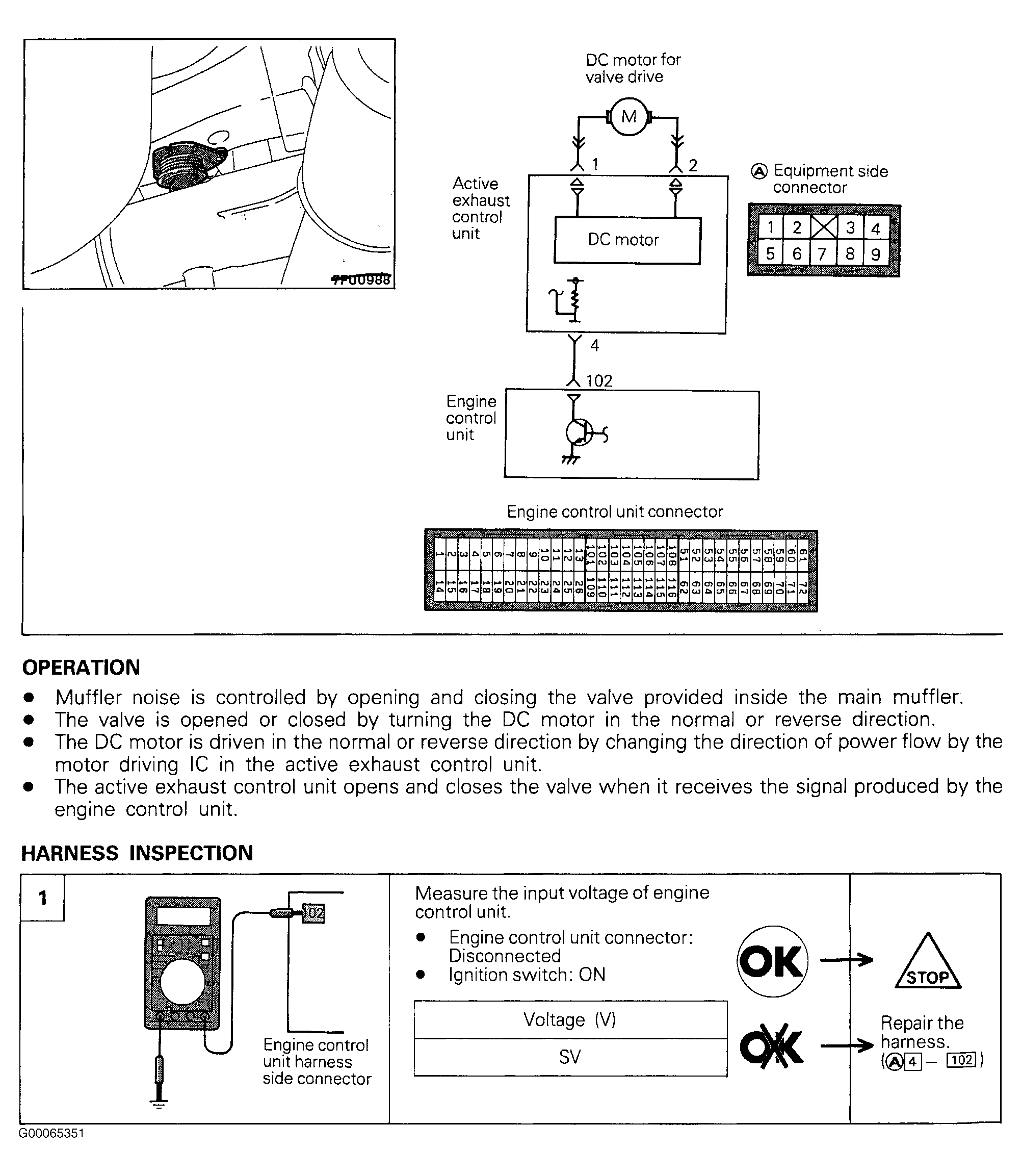

Fig 1: Active Exhaust Control Unit - Turbo
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
