Air Conditioner Switch & Power Relay

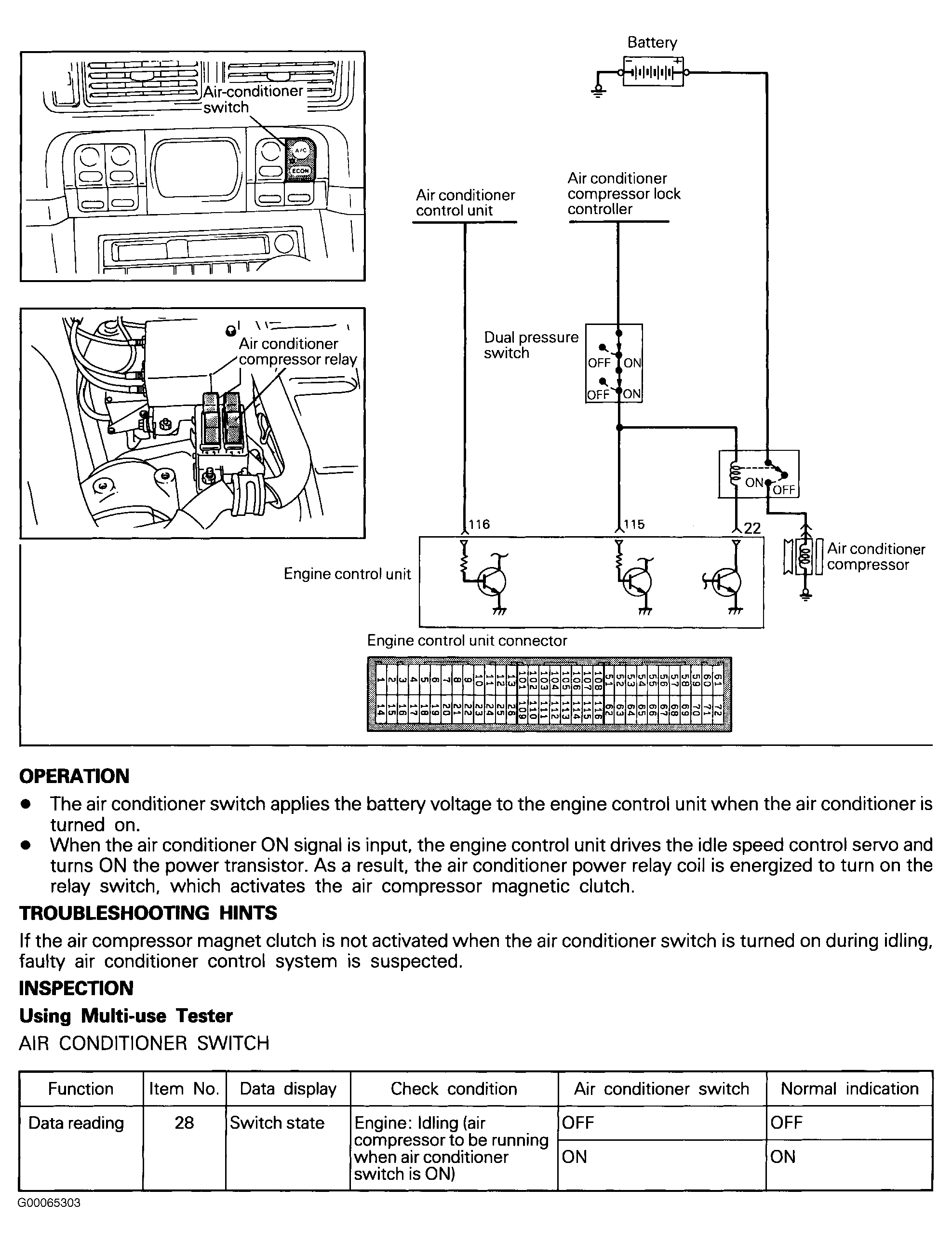

Fig 1: Air Conditioner Switch & Power Relay (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

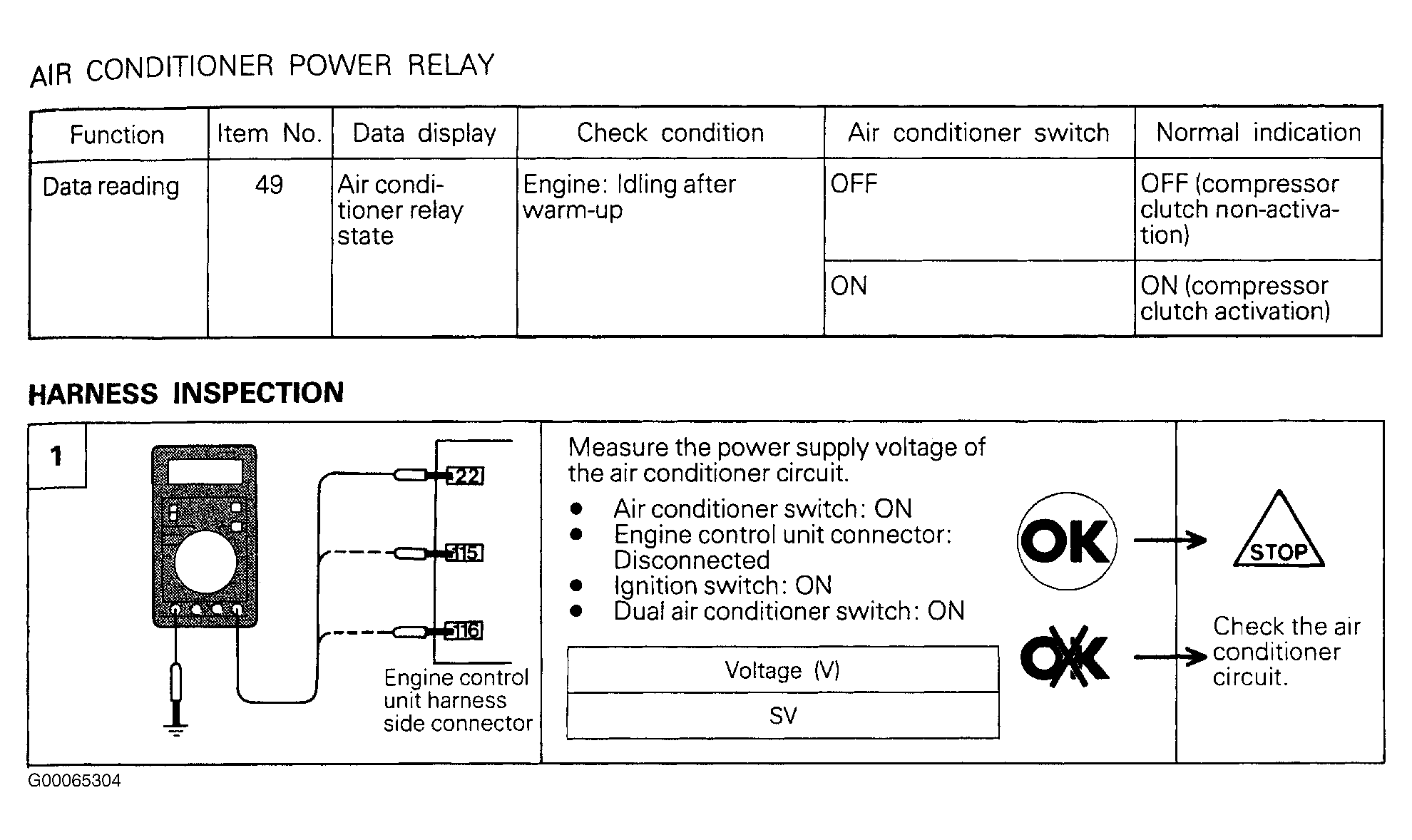

Fig 2: Air Conditioner Switch & Power Relay (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
