Variable Induction Control Servo (Dc Motor) - Non-Turbo

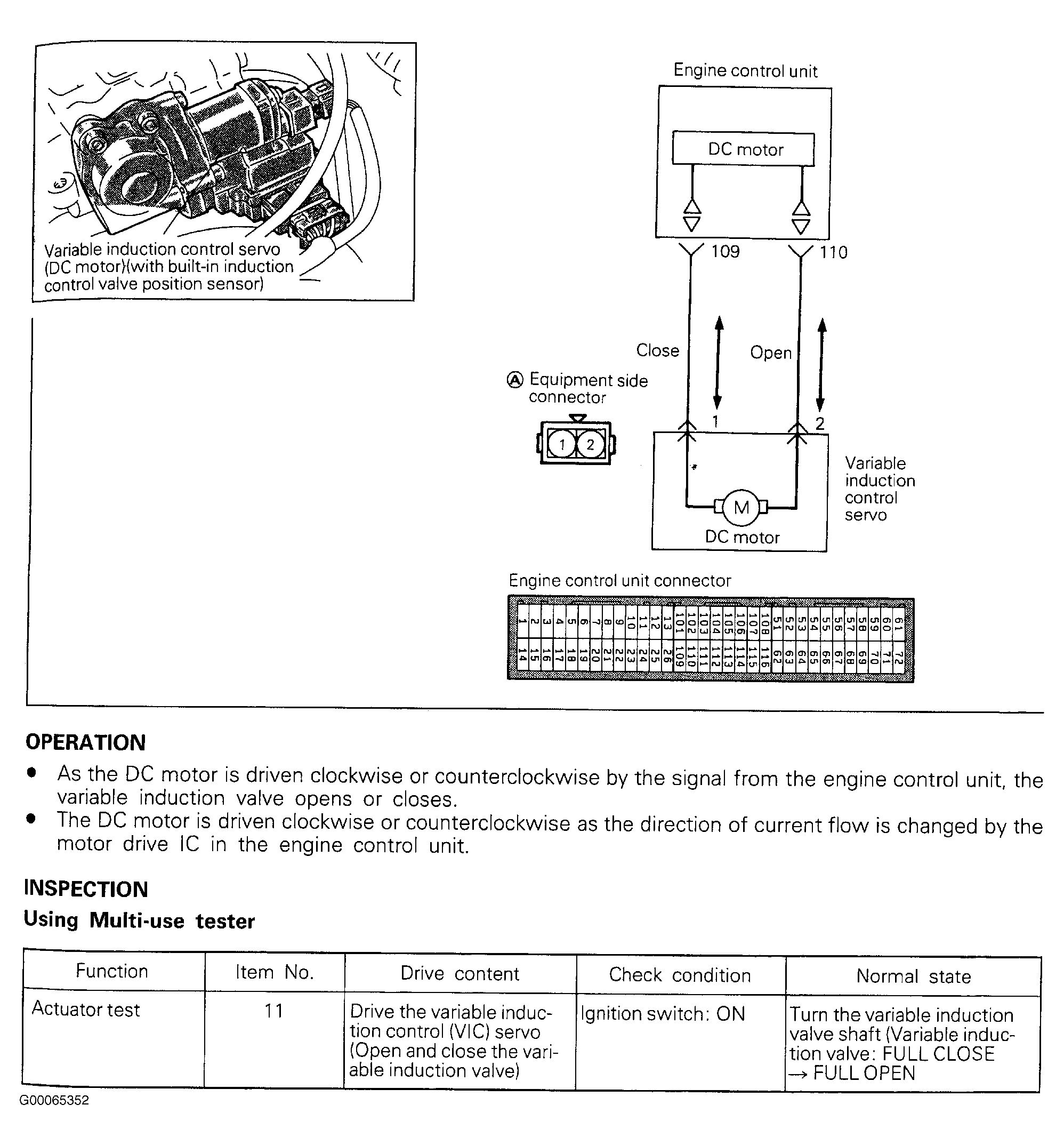

Fig 1: Variable Induction Control Servo (DC Motor) - Non-Turbo (1 Of 2)
G00065352Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

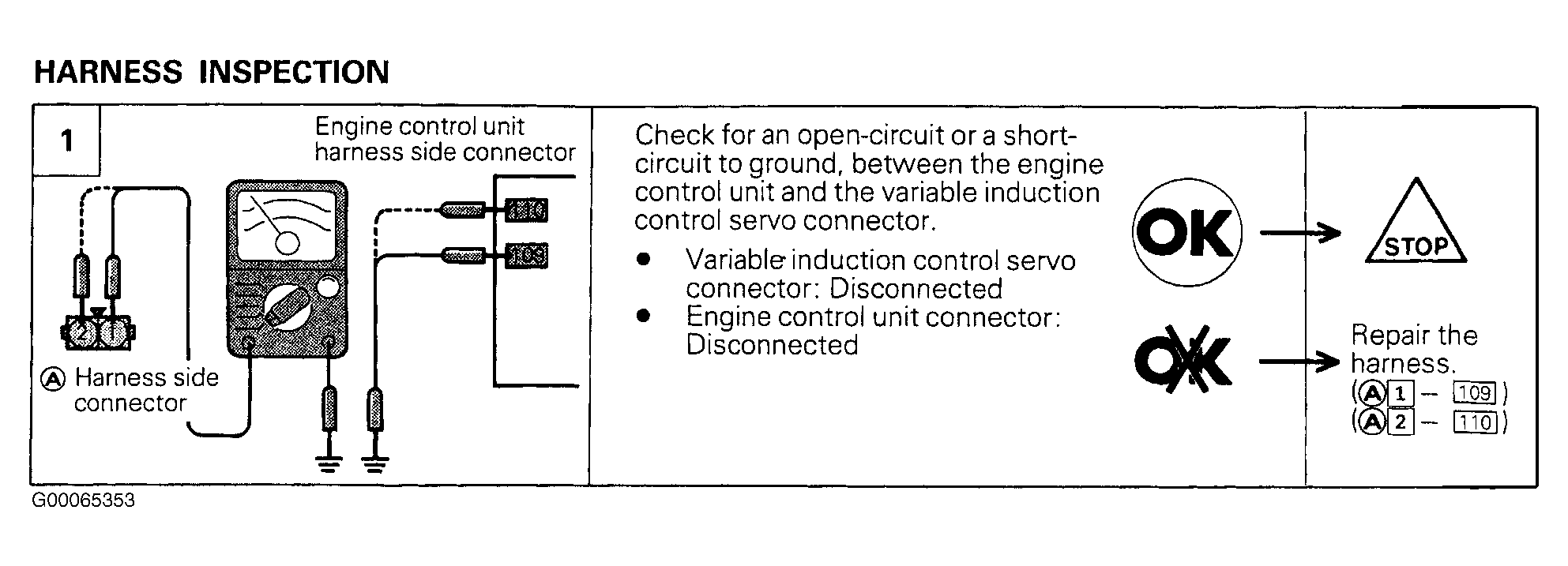

Fig 2: Variable Induction Control Servo (DC Motor) - Non-Turbo - Step 1 (2 Of 2)
G00065353Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
