DTC 21: Engine Coolant Temperature (Etc) Sensor

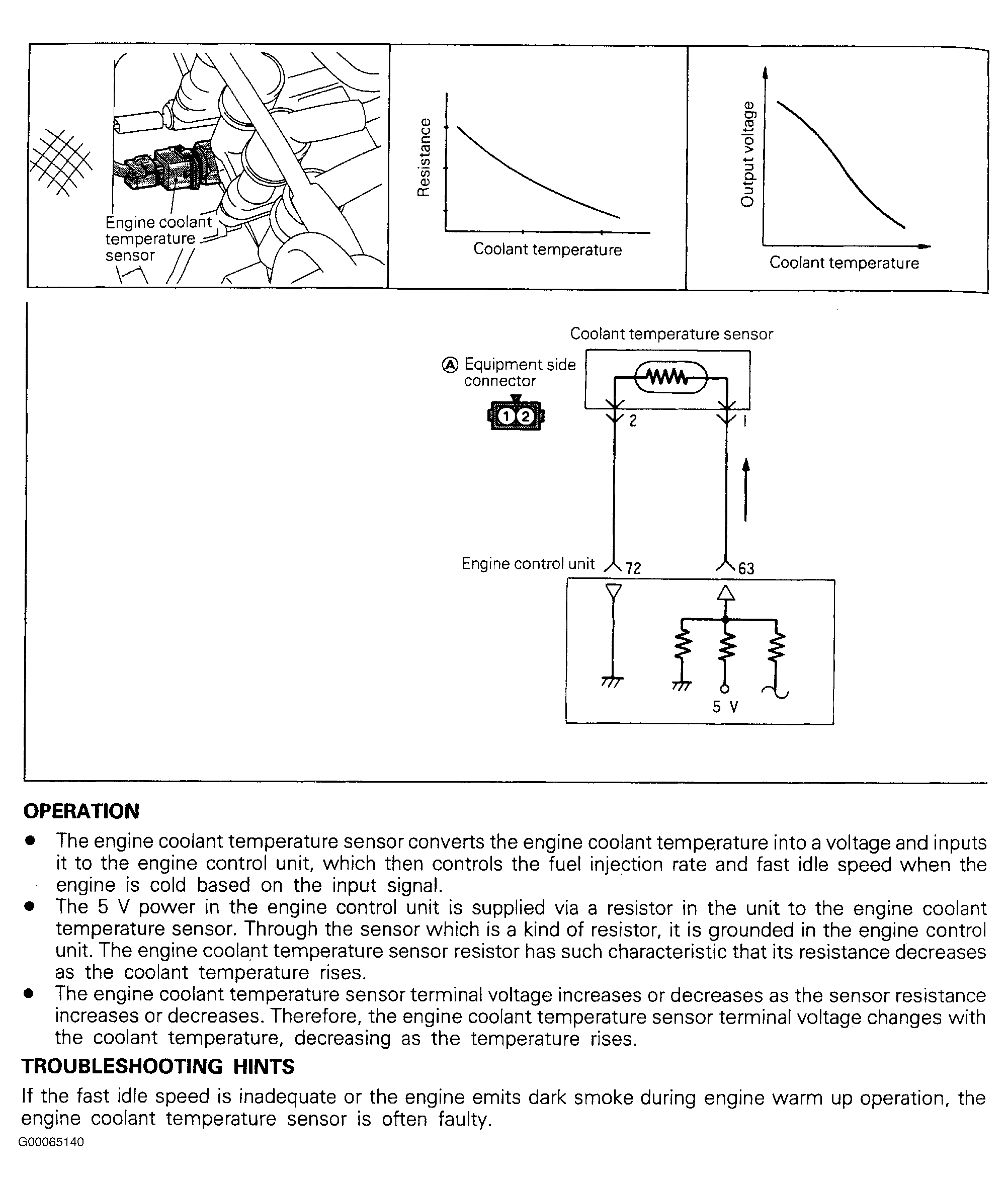

Fig 1: DTC 21: Engine Coolant Temperature (ETC) Sensor (1 Of 3)
G00065140Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

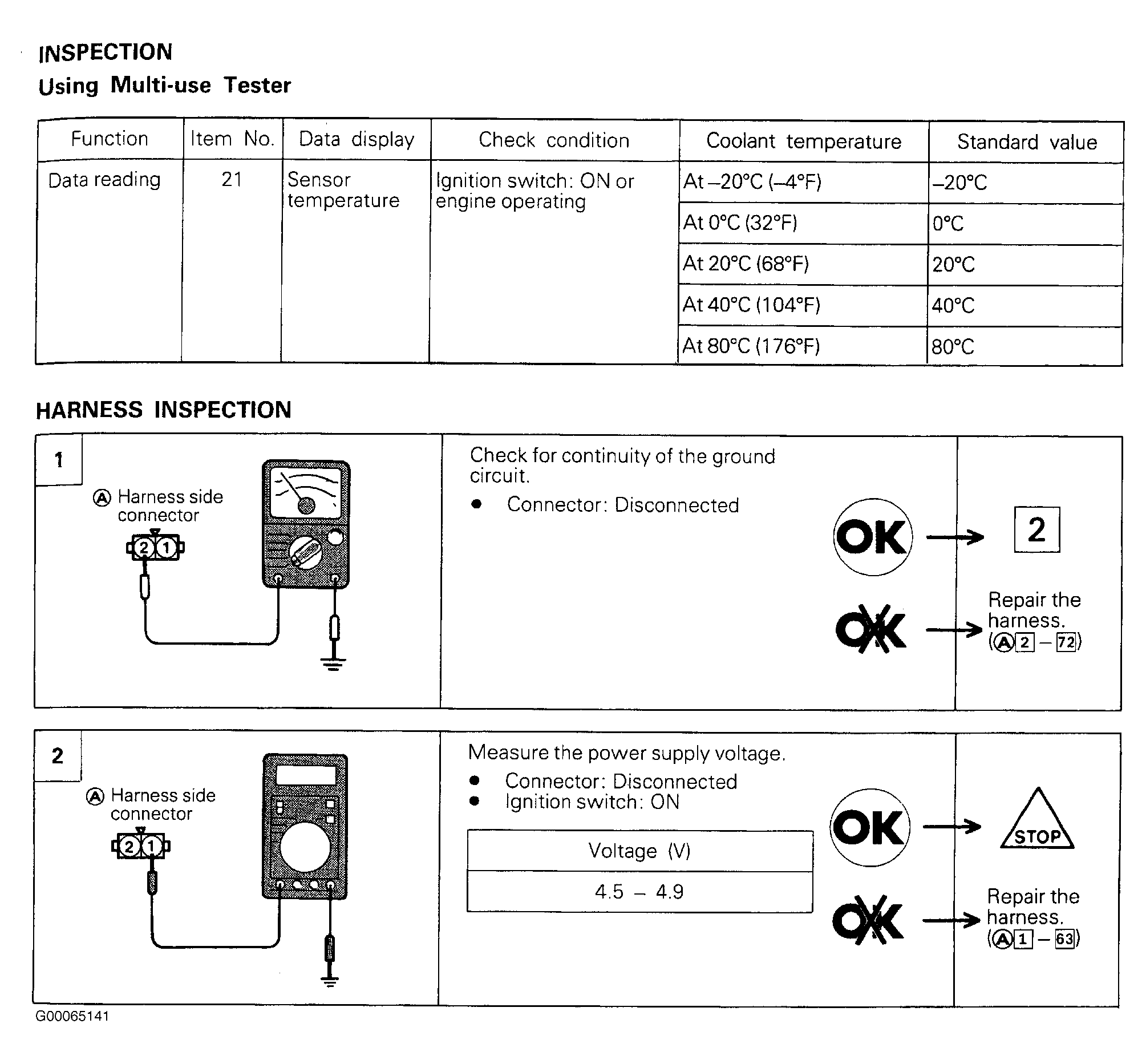

Fig 2: DTC 21: Engine Coolant Temperature (ETC) Sensor - Steps 1 & 2 (2 Of 3)
G00065141Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

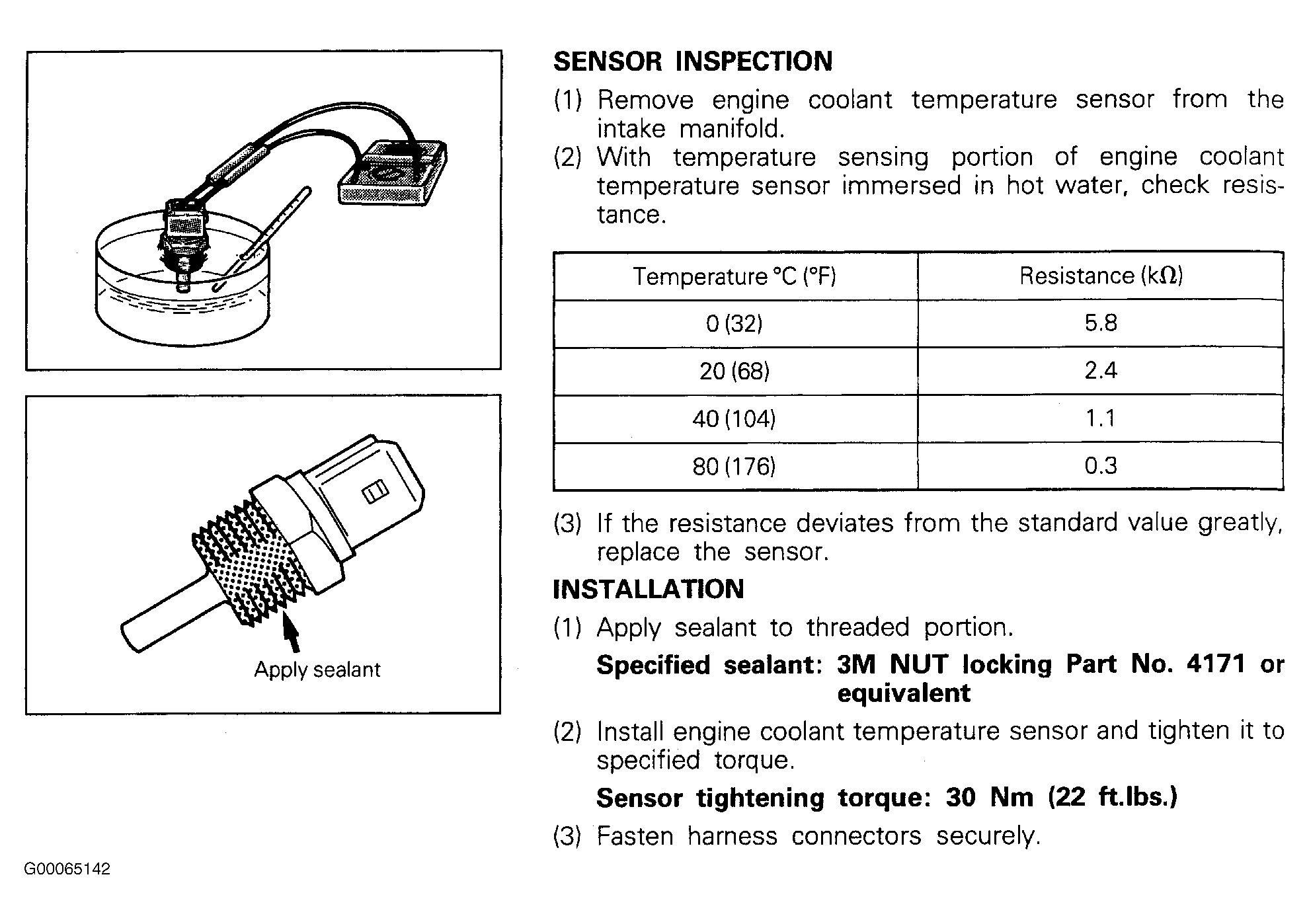

Fig 3: DTC 21: Engine Coolant Temperature (ET) Sensor - Steps 1-3 (3 Of 3)
G00065142Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
