DTC 43: EGR Temperature Sensor - CALIFORNIA Only

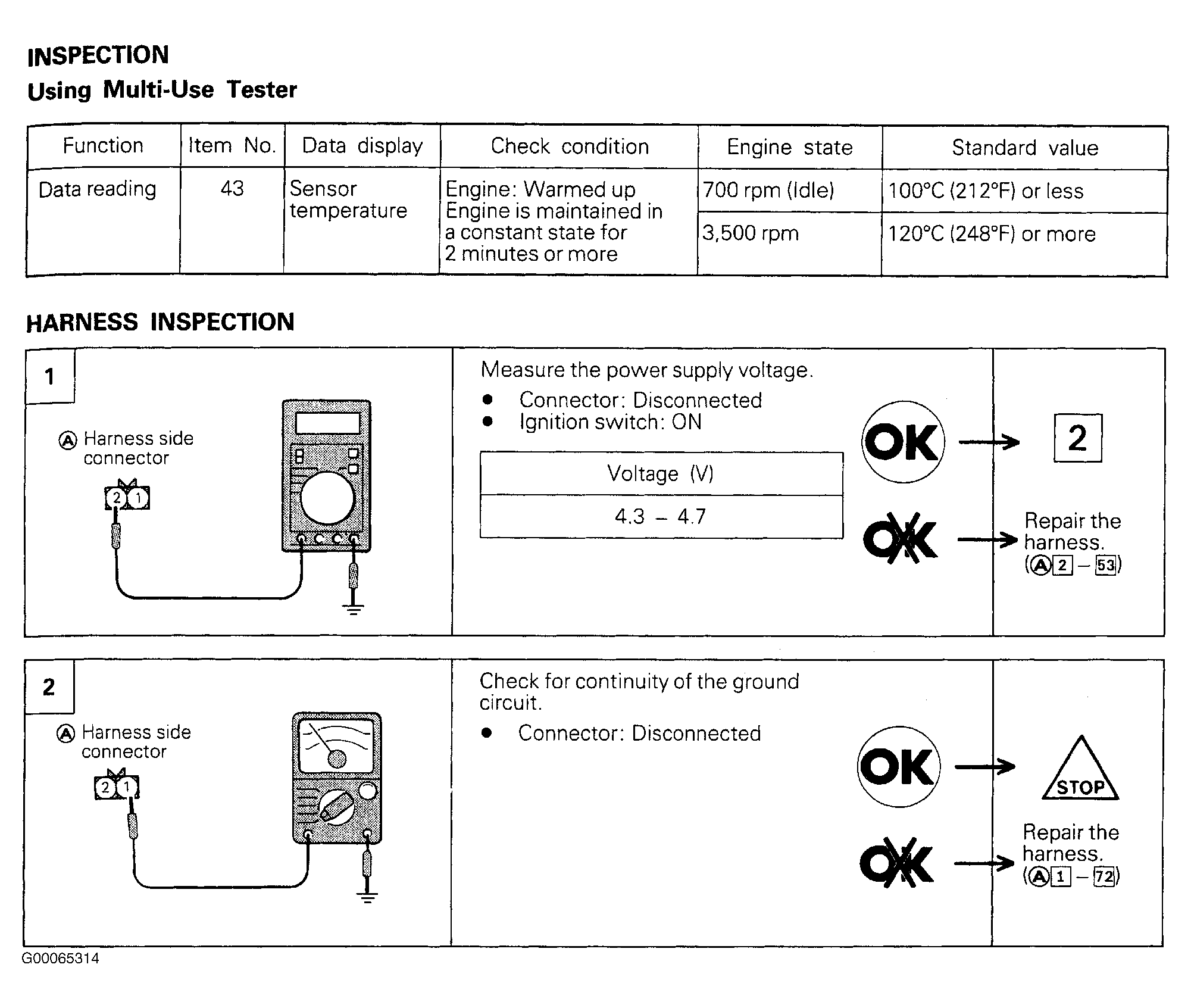

Fig 1: DTC 43: EGR Temperature Sensor - Calif. Only (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

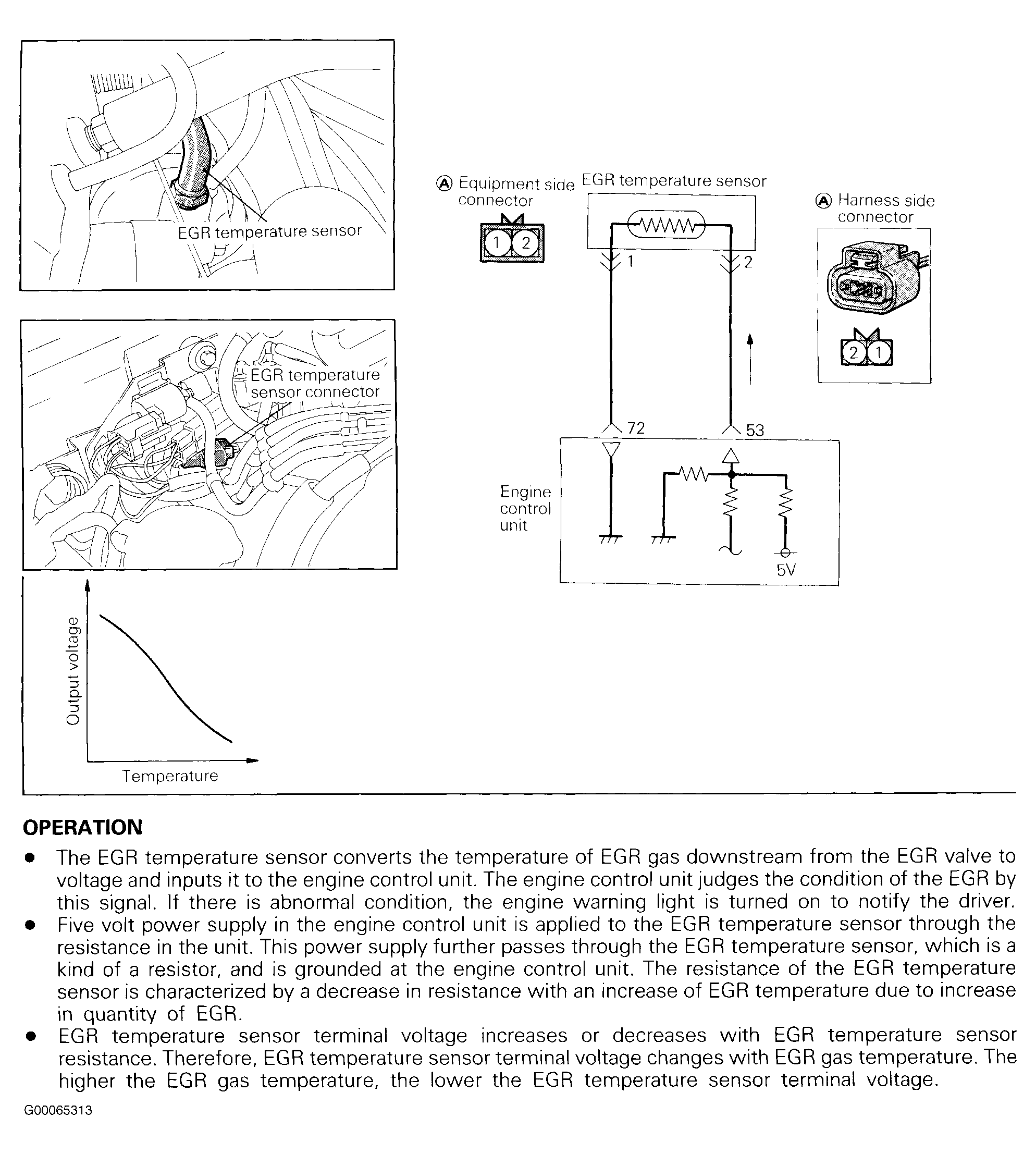

Fig 2: DTC 43: EGR Temperature Sensor - Calif. Only (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
