DTC 61: Engine & Transaxle Total Control Signal - Automatic Transmission

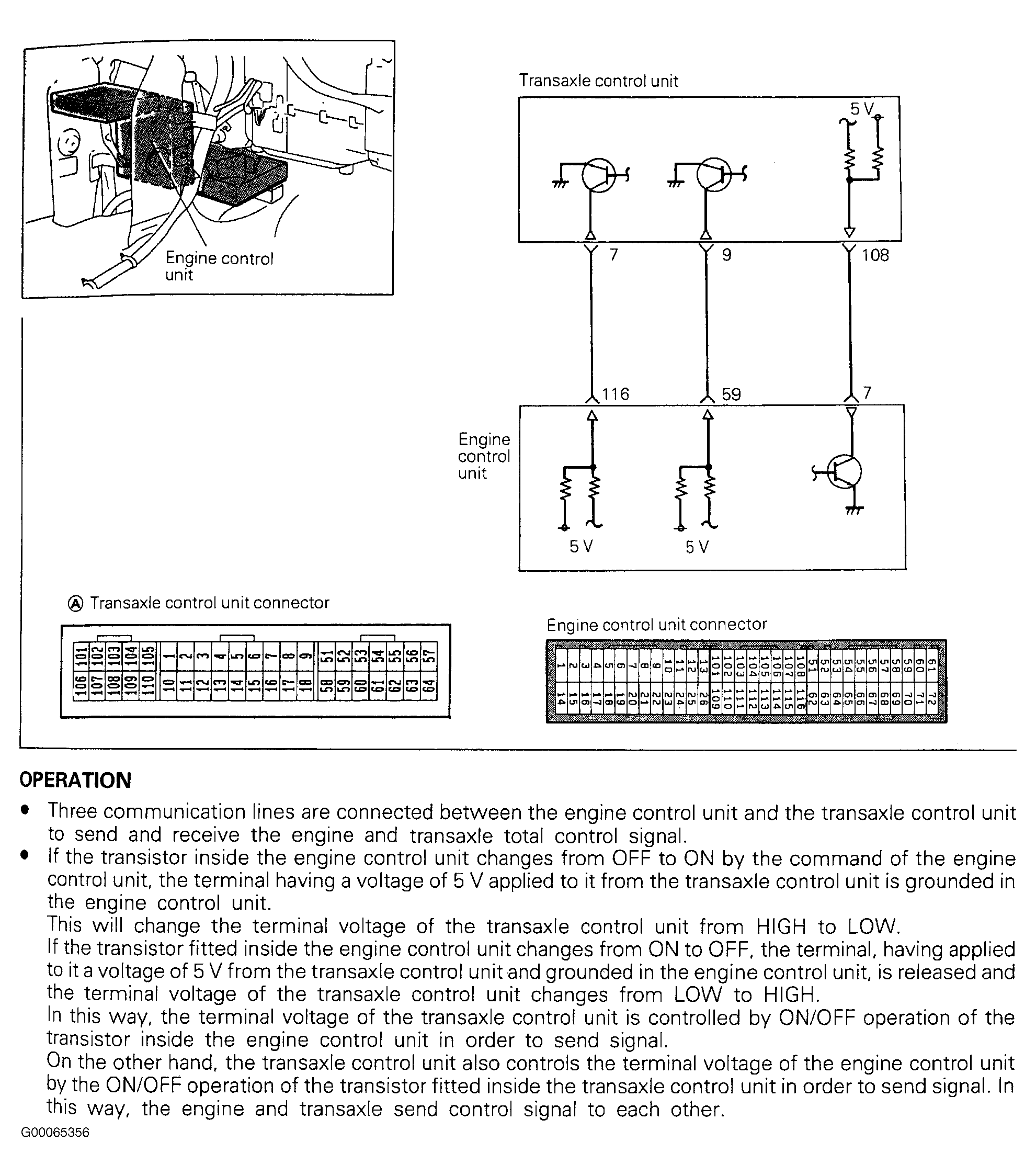

Fig 1: DTC 61: Engine & Transaxle Total Control Signal - Automatic Transmission (1 Of 2)
G00065356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

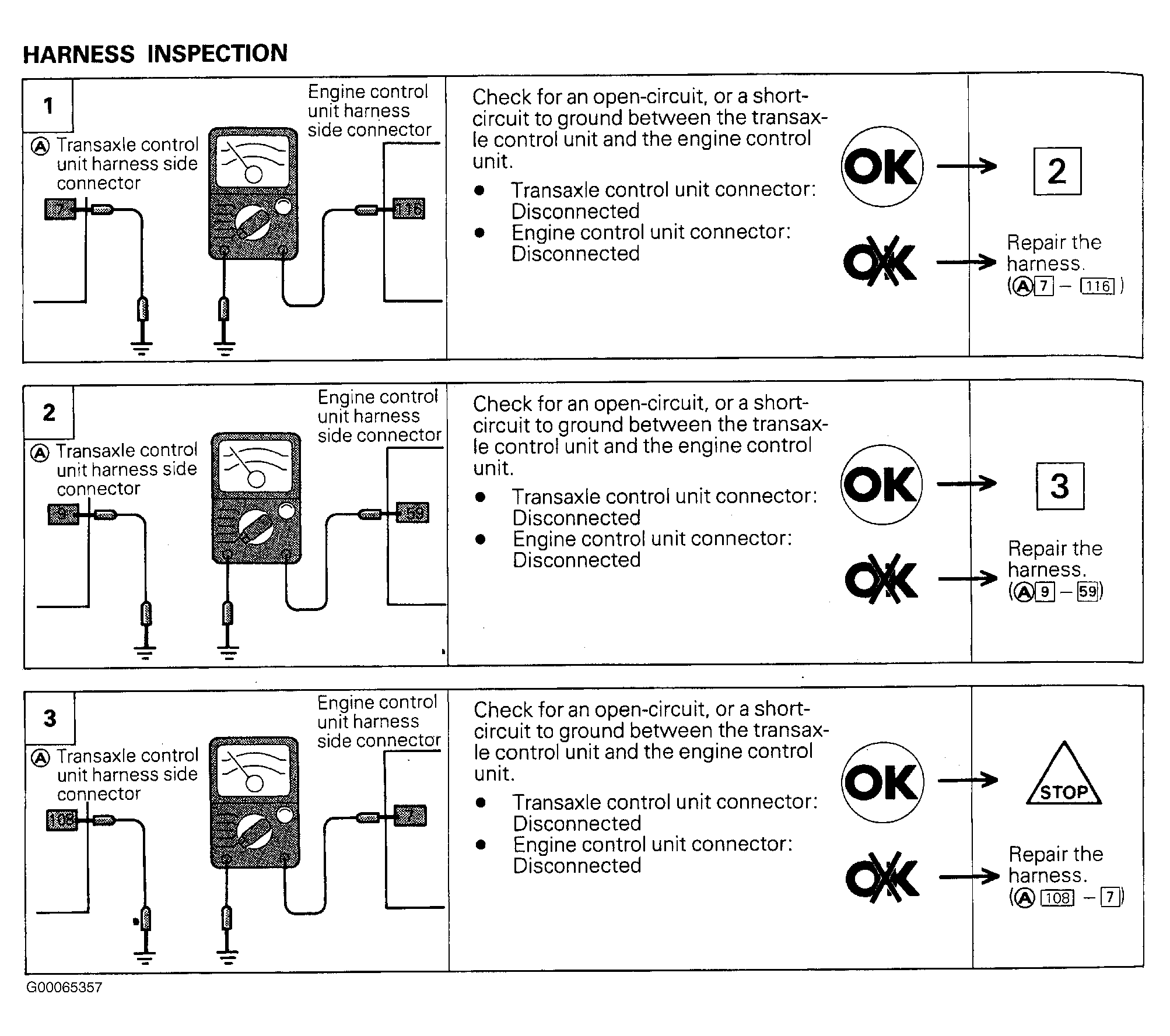

Fig 2: DTC 61: Engine & Transaxle Total Control Signal - Automatic Transmission - Steps 1-3 (2 Of 2)
G00065357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
