Circuit Test No. 2: Ignition Switch Input Circuits

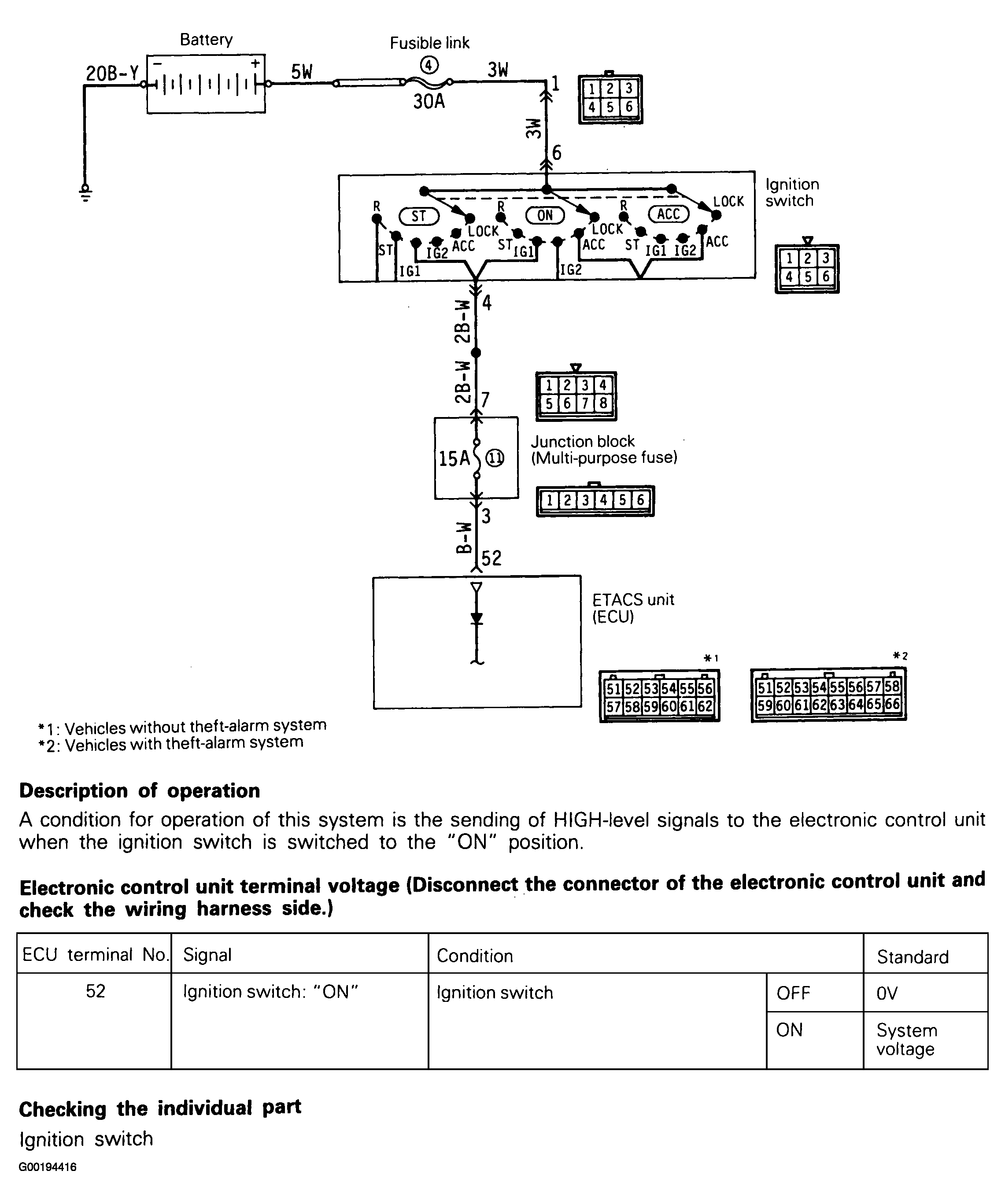

Fig 1: Circuit Test No. 2: Ignition Switch Input Ciruits
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
