Diagnostic Fault Charts: Notes

NOTE: Replace ECU if a malfunction code exists and inspection reveals no problem with check items.

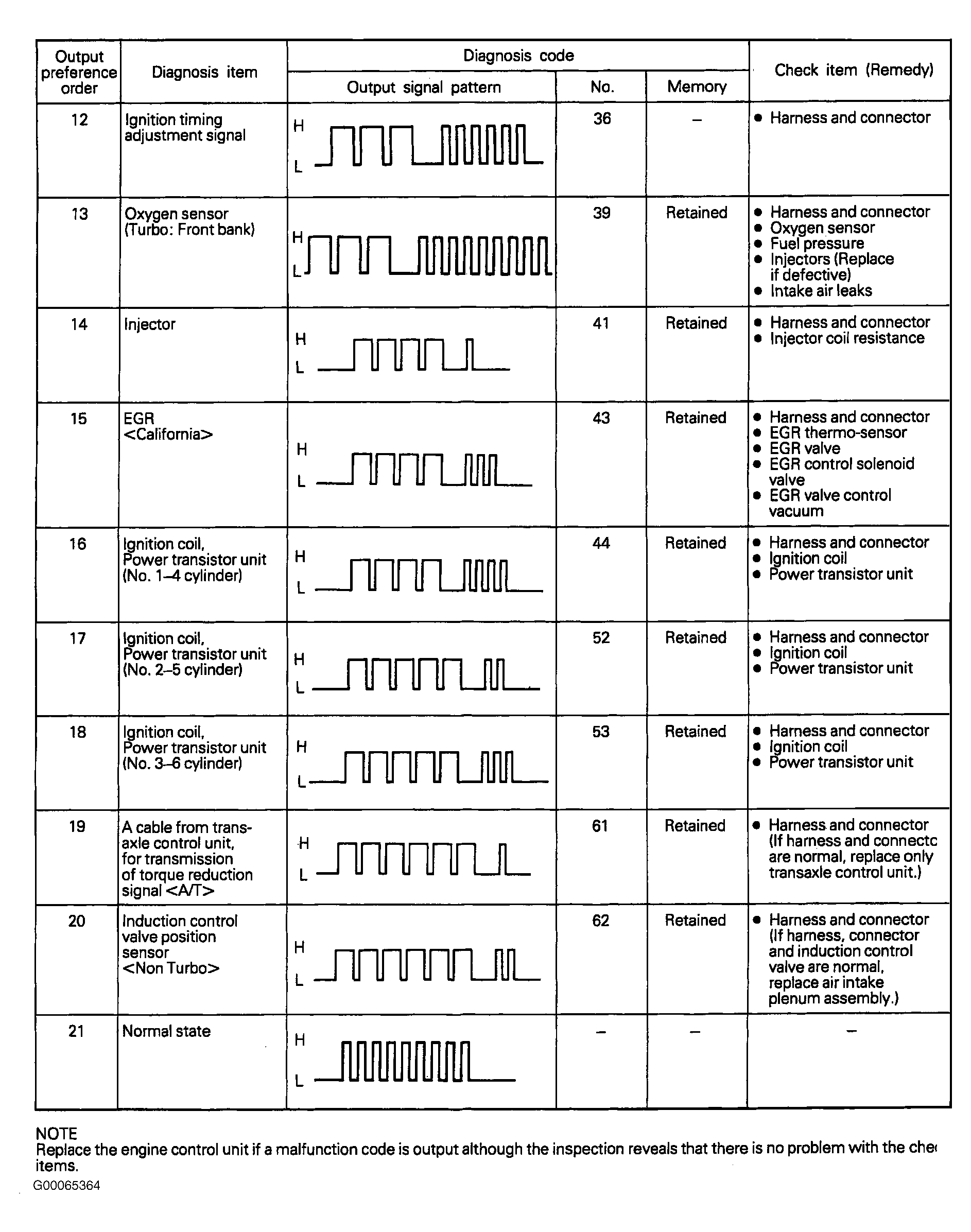

See Figure and Figure . for Diagnostic Fault Charts.
