Speed Adjustment Screw (SAS) Fixed Position

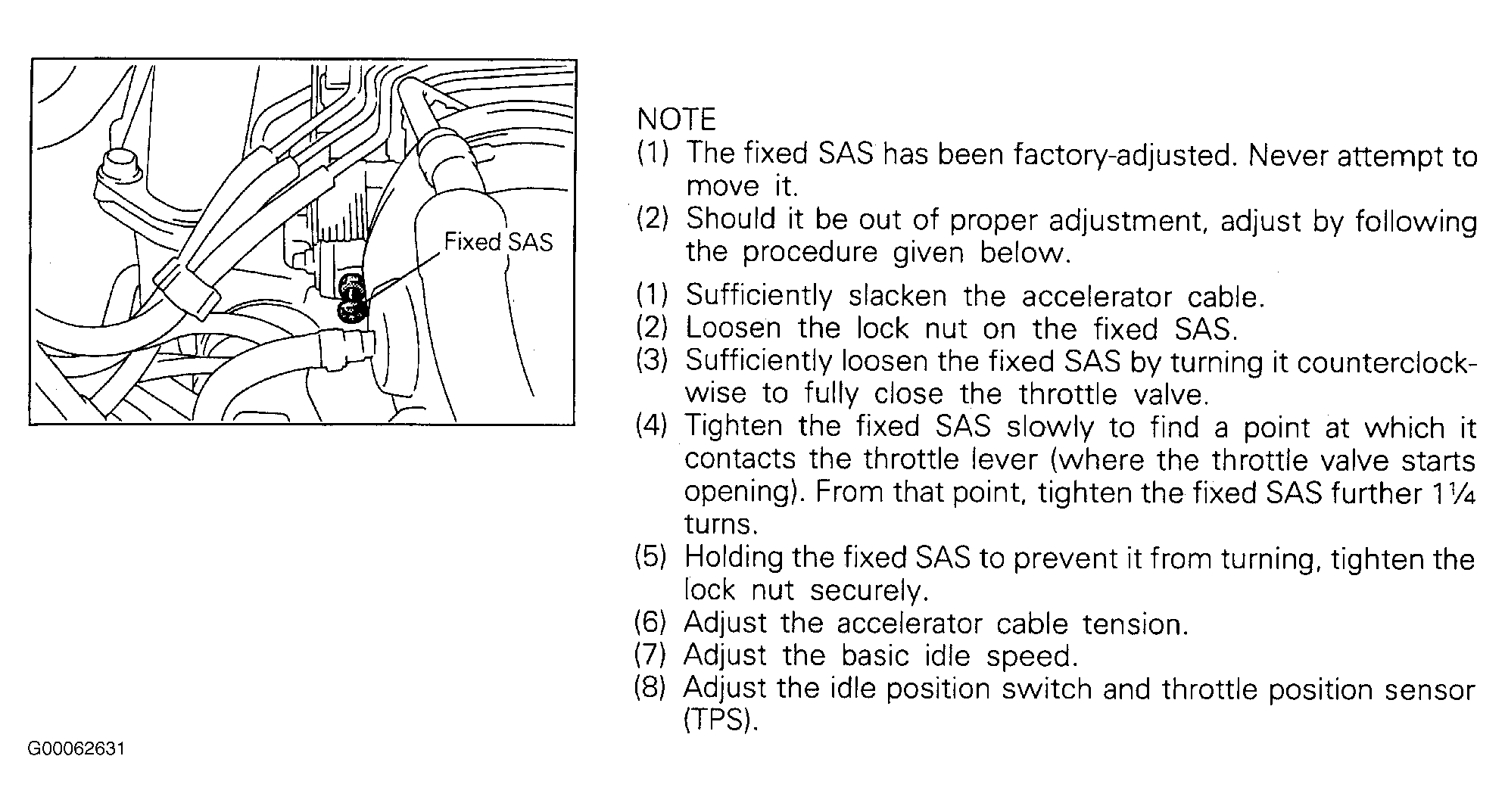

Fig 1: Speed Adjustment Screw (SAS) Fixed Position - Steps 1-8
G00062631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
