TPS Adjustment

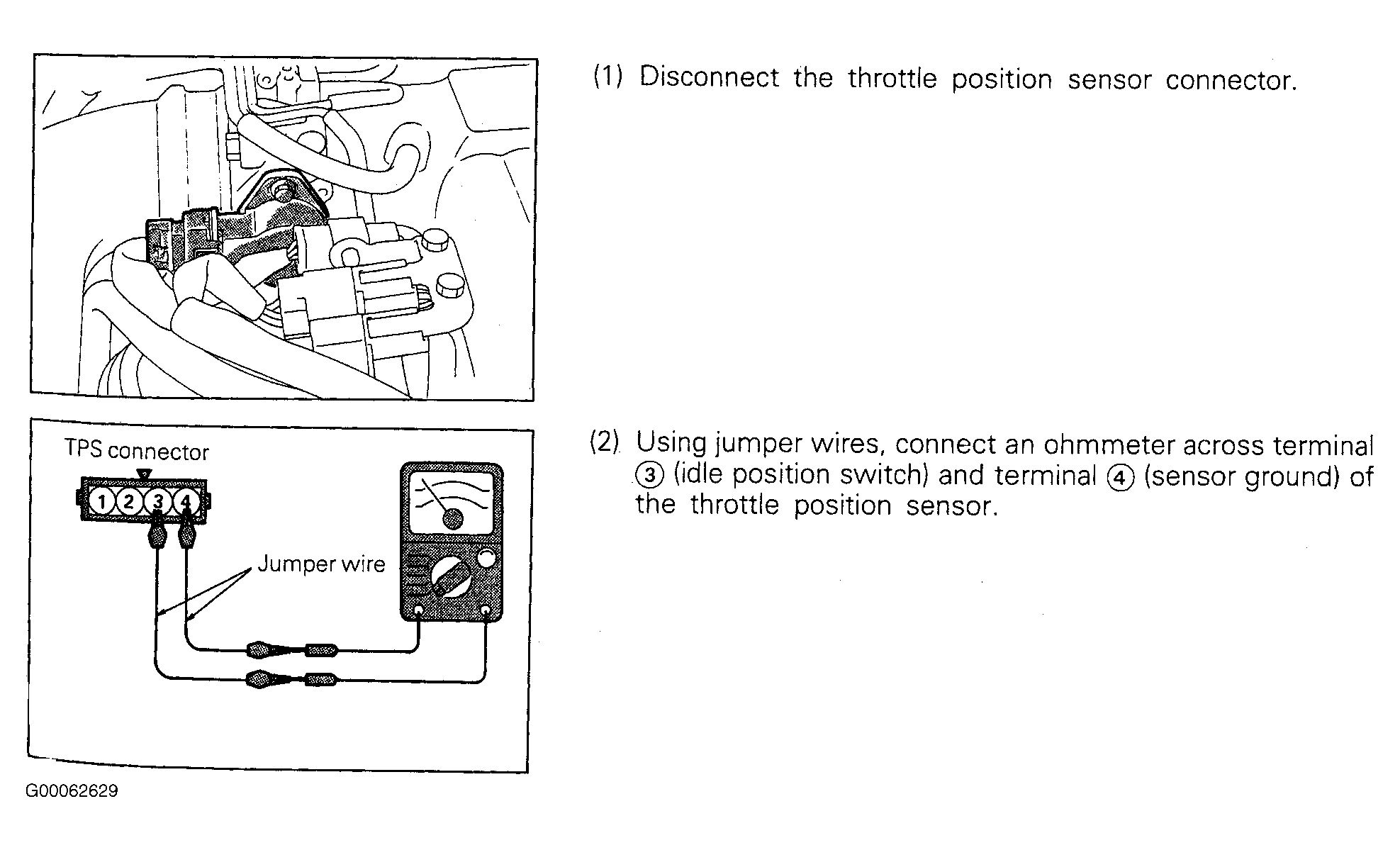

Fig 1: TPS Adjustment - Steps 1 & 2 (1 Of 2)
G00062629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: TPS Adjustment - Steps 3-14 (2 Of 2)
G00062630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
