DTC 14: Throttle Position Sensor

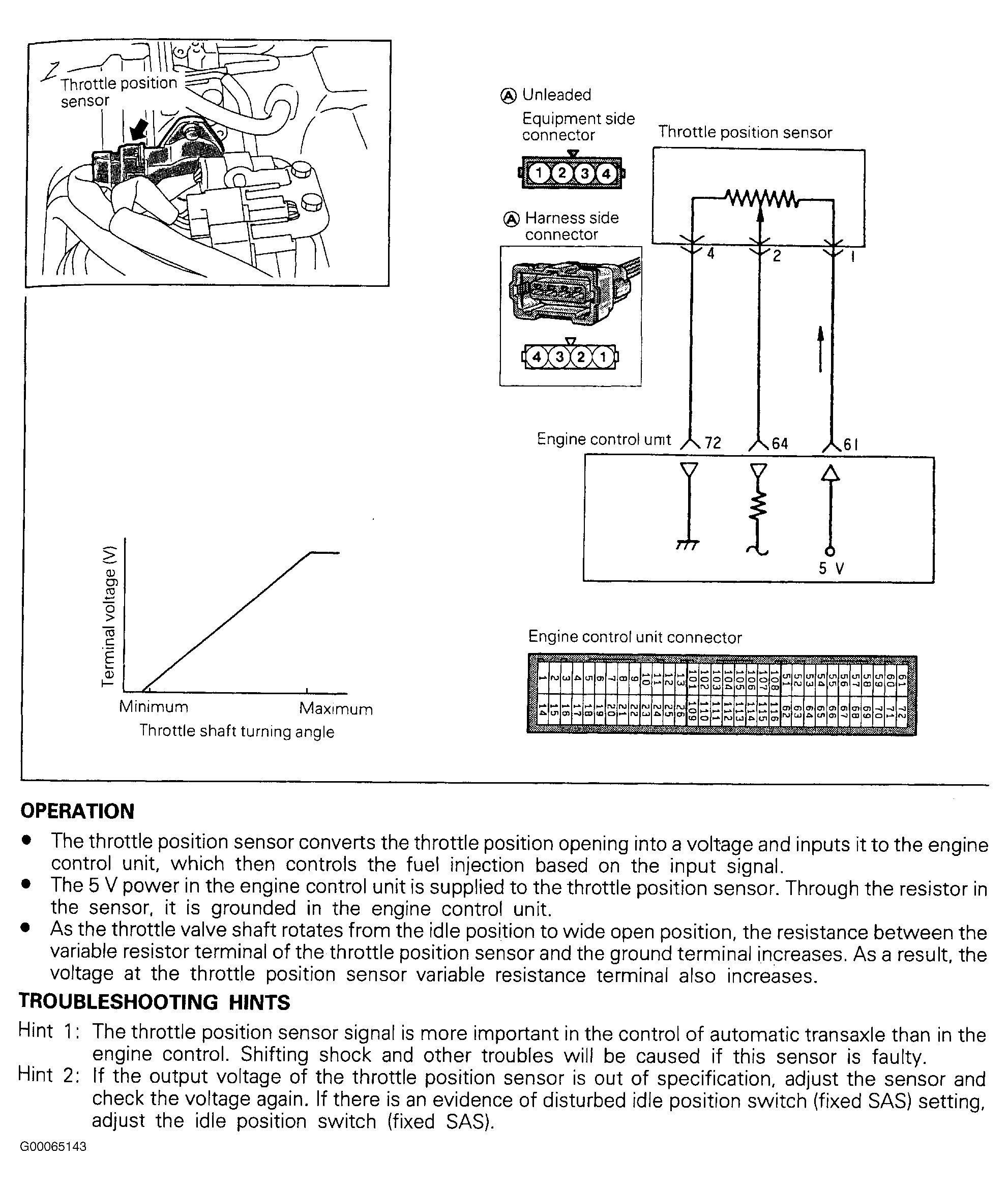

Fig 1: DTC 14: Throttle Position Sensor (1 Of 3)
G00065143Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

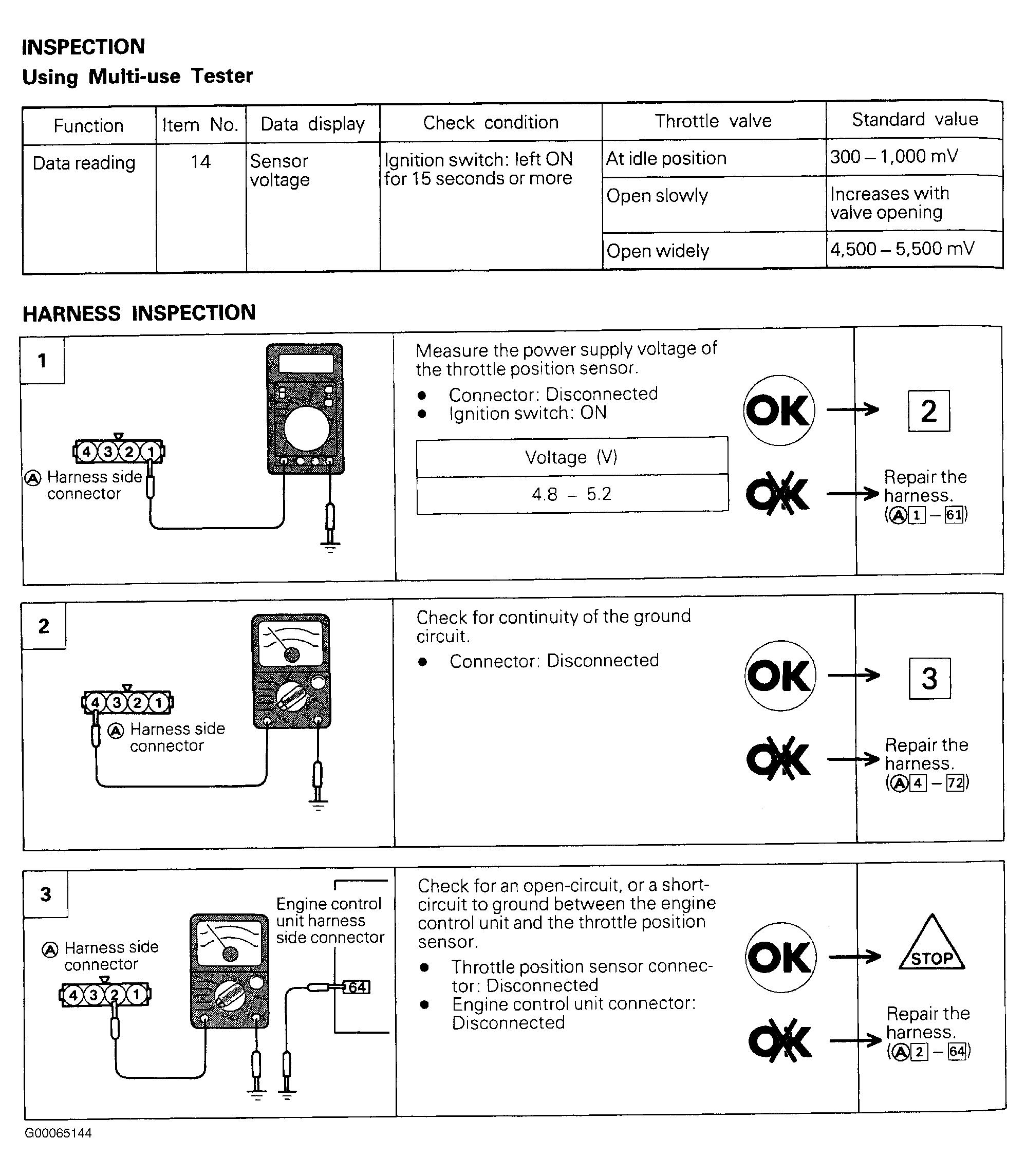

Fig 2: DTC 14: Throttle Temperature Sensor - Steps 1-3 (2 Of 3)
G00065144Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

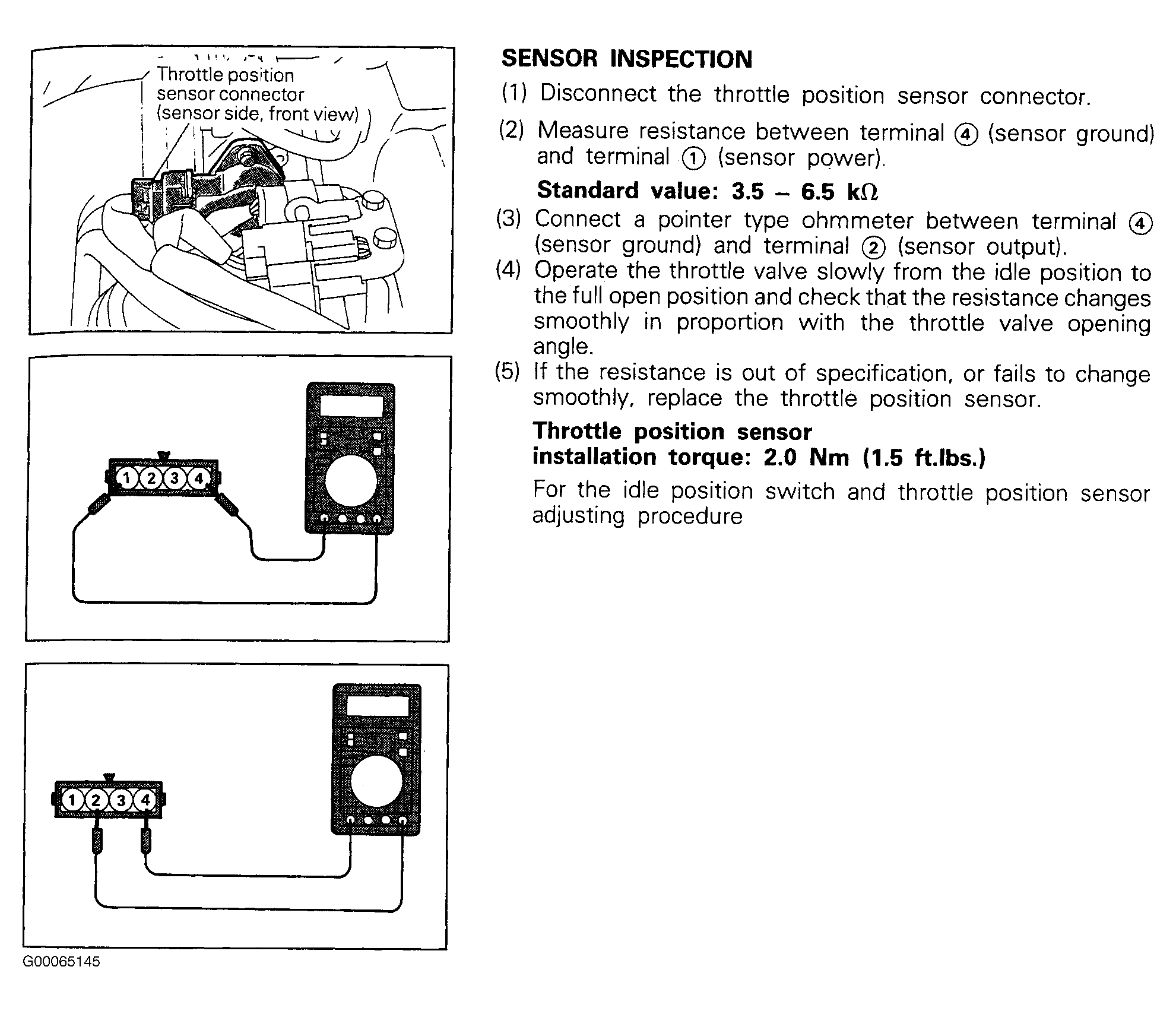

Fig 3: DTC 14: Throttle Temperature Sensor - Steps 1-5 (3 Of 3)
G00065145Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
