Dr-5A: Testing Throttle Position Sensor

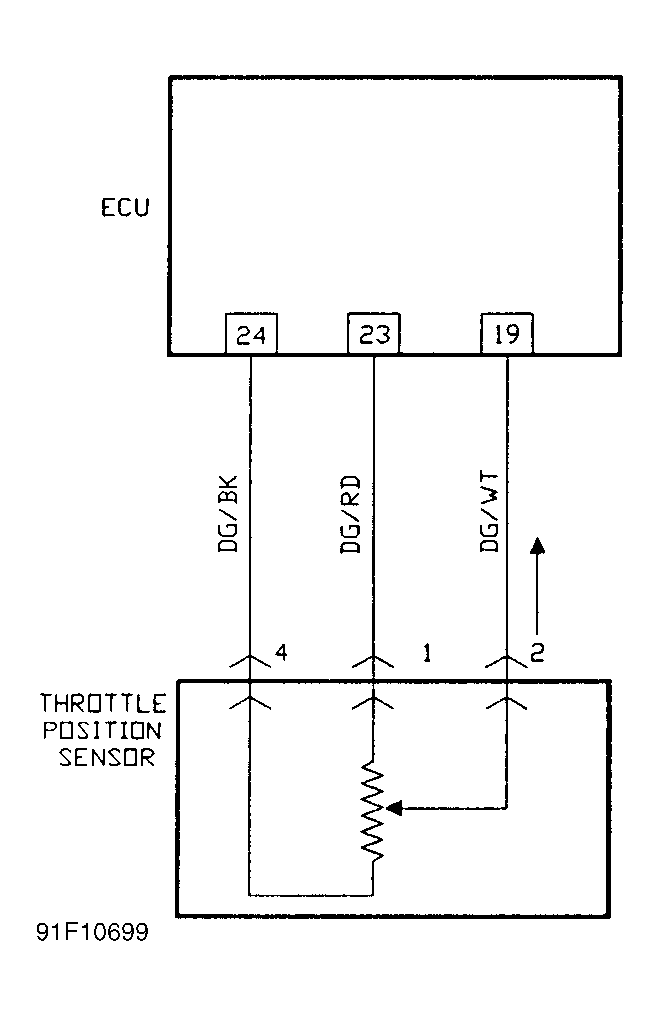

Fig 1: Driveability Test DR-5A: Circuit Diagram
G91F10699

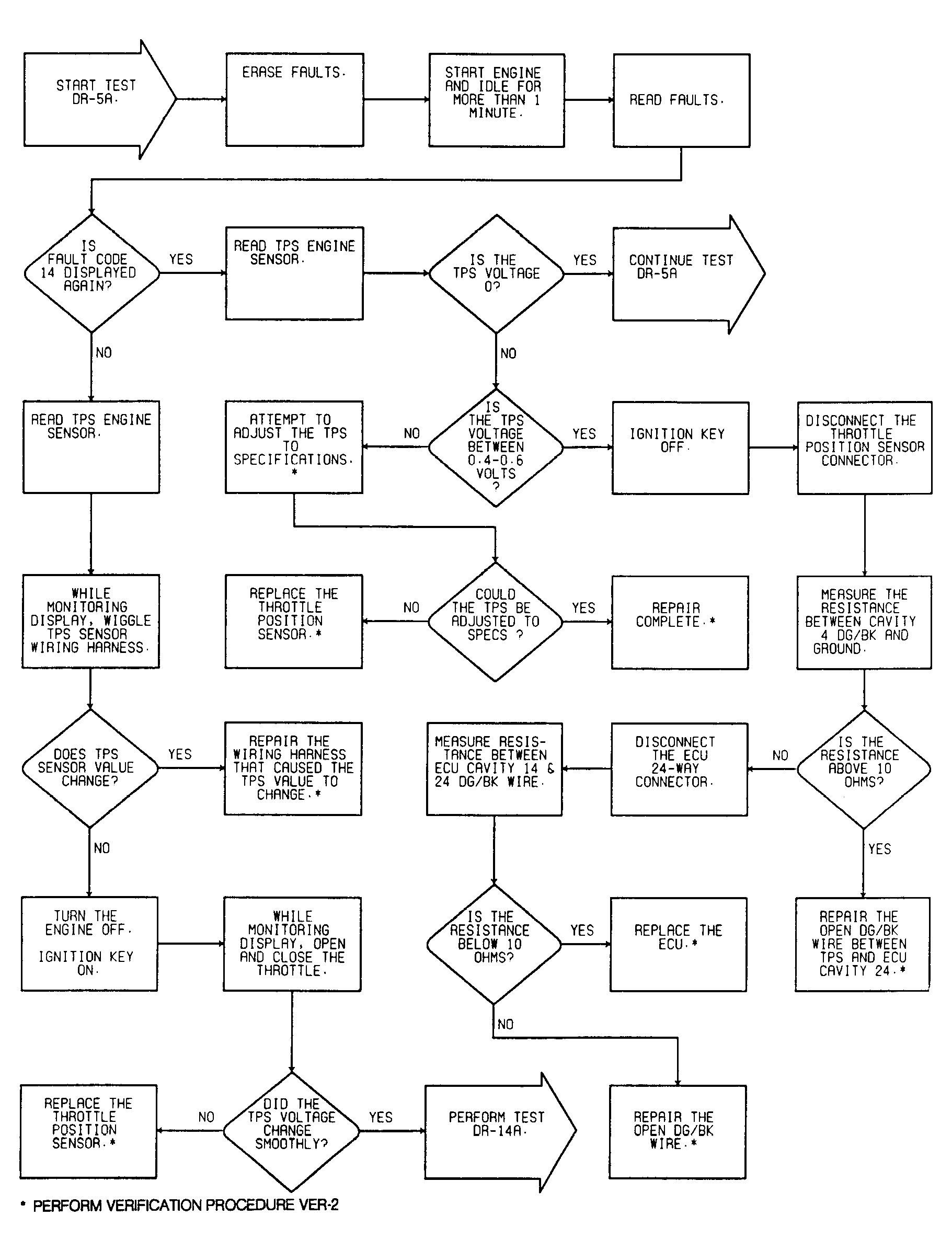

Fig 2: Driveability Test DR-5A: Diagnostic Flow Chart (1 of 2)
G91B10729

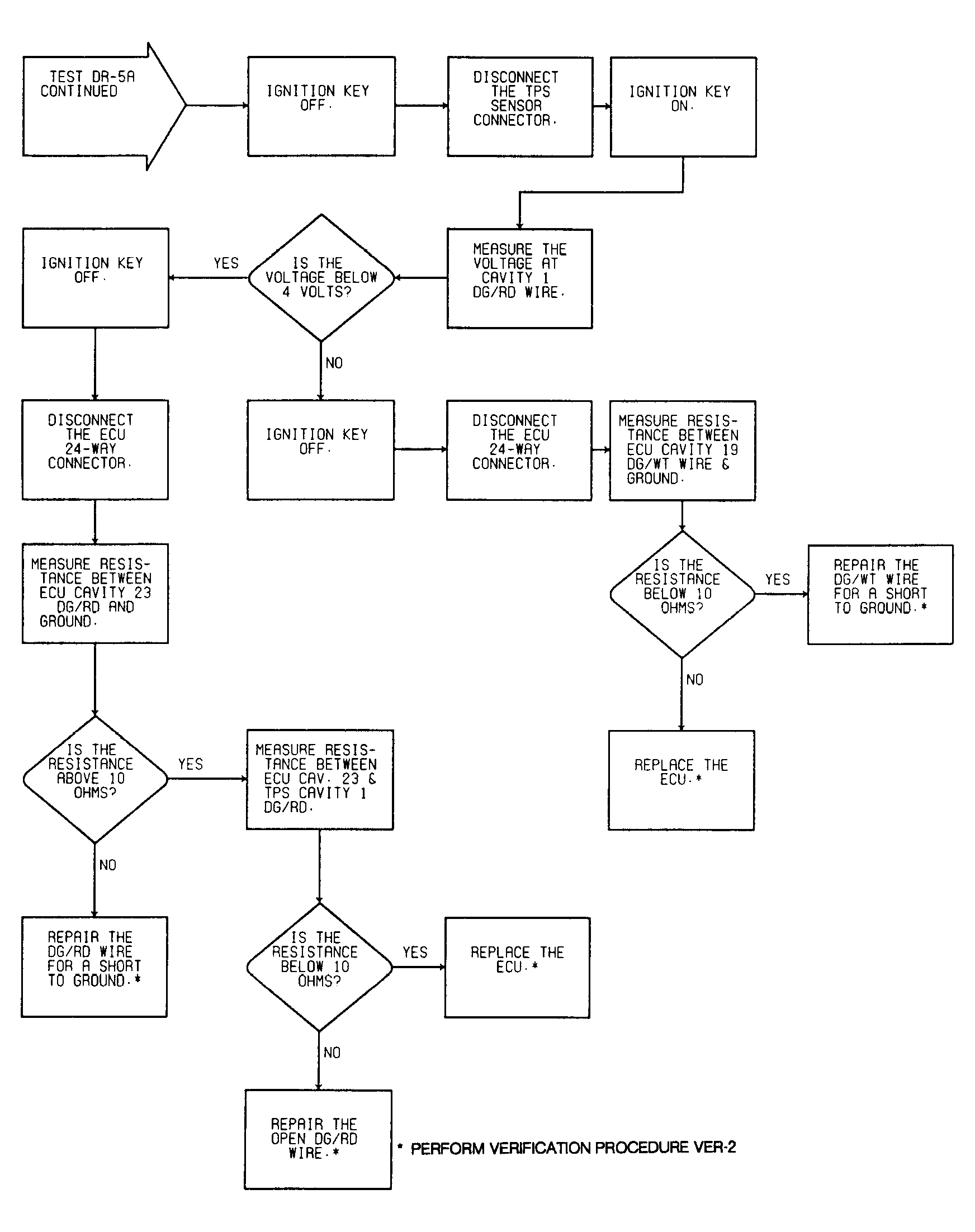

Fig 3: Driveability Test DR-5A: Diagnostic Flow Chart (2 of 2)
G91E10730
