Dr-12A: Testing Fuel Pump Sense

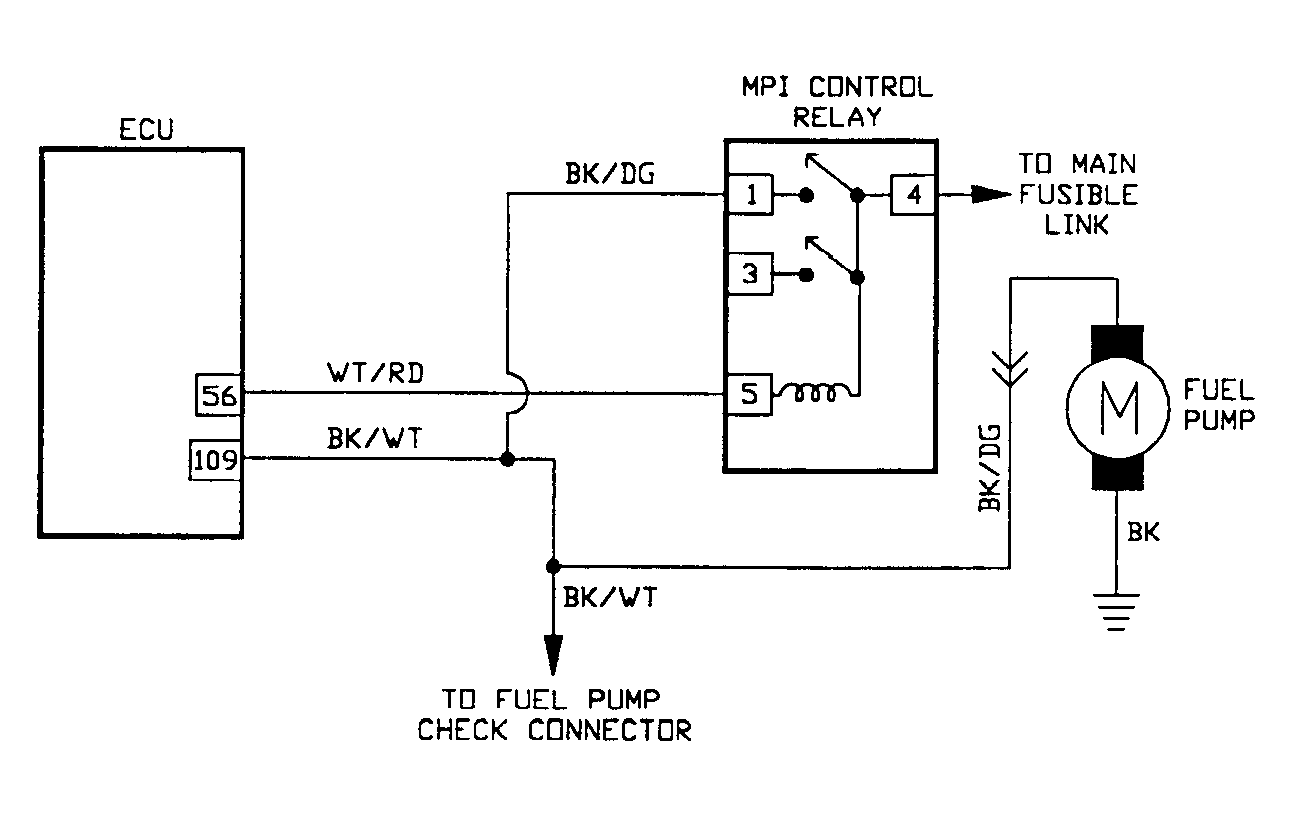

Fig 1: Driveability Test DR-12A: Circuit Diagram
G91D10705

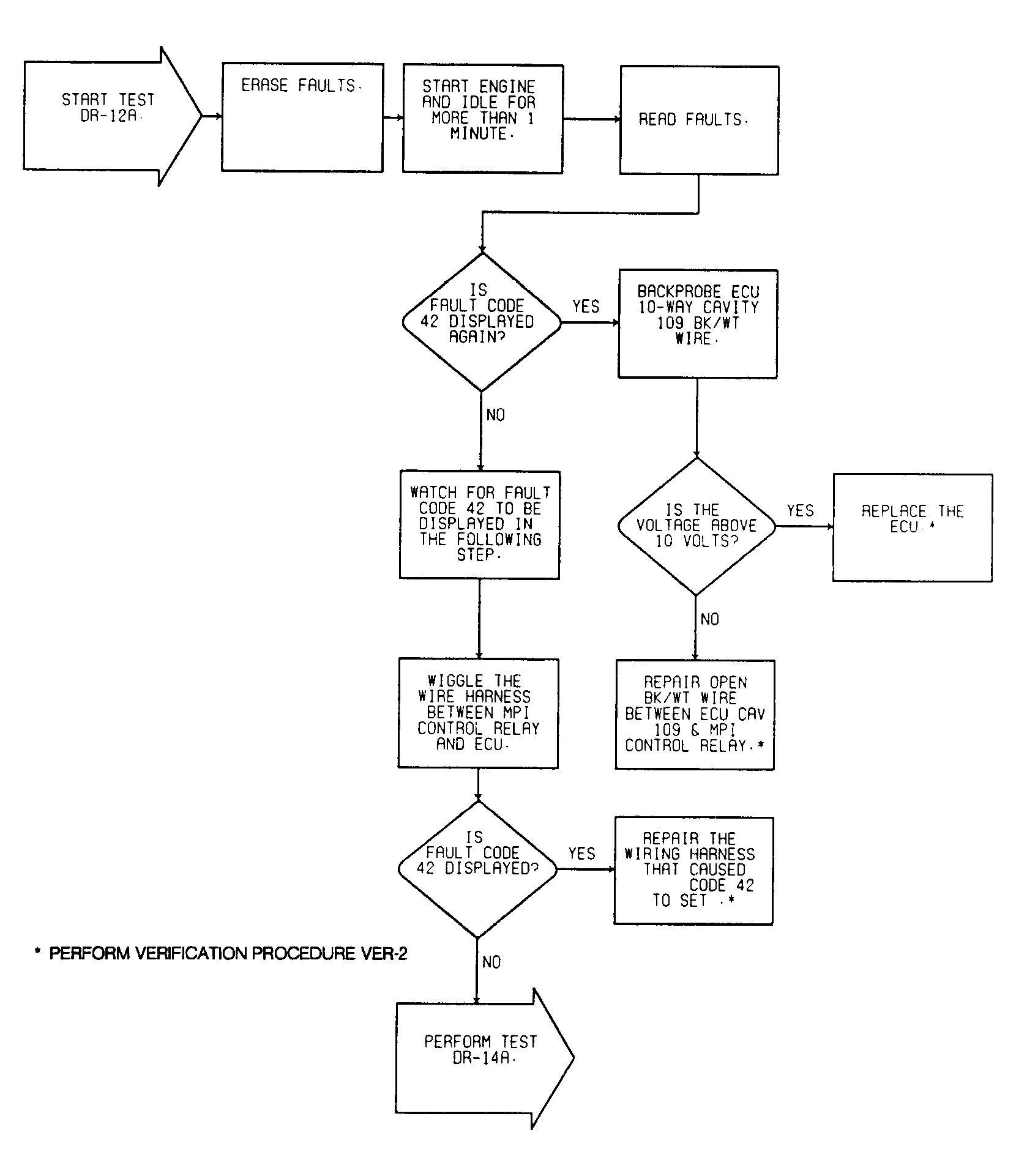

Fig 2: Driveability Test DR-12A: Diagnostic Flow Chart
G91A10744
