Dr-12: Code 41 Injector Circuit

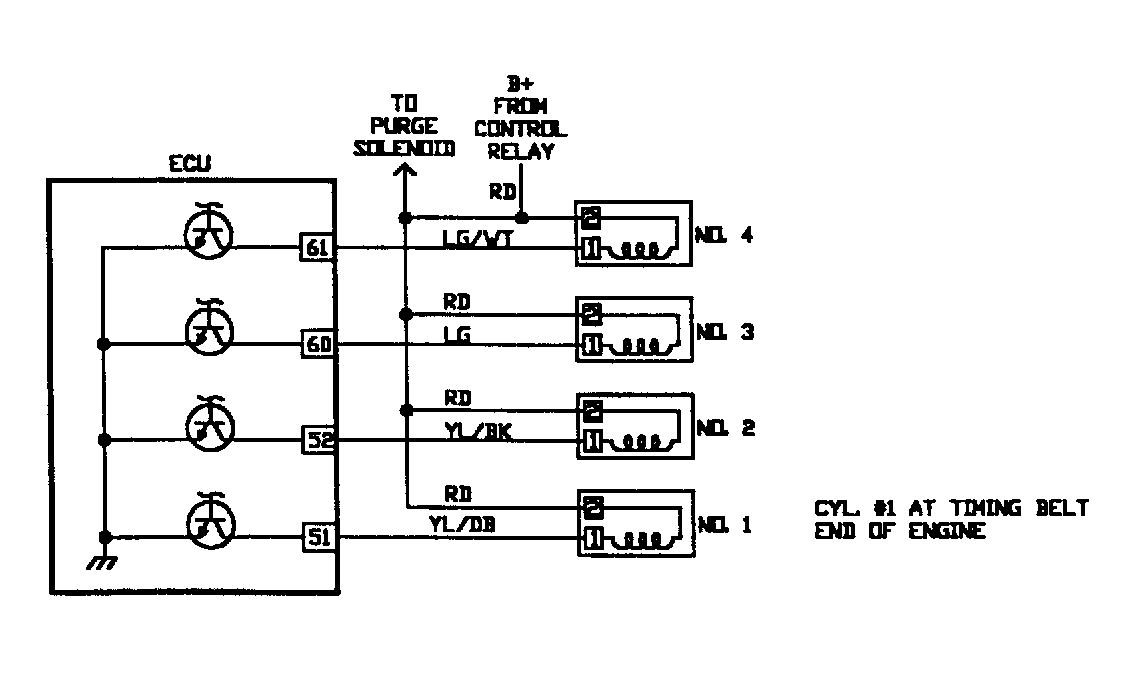

Fig 1: Circuit Diagram DR-12 (1.5L)
G90G15384

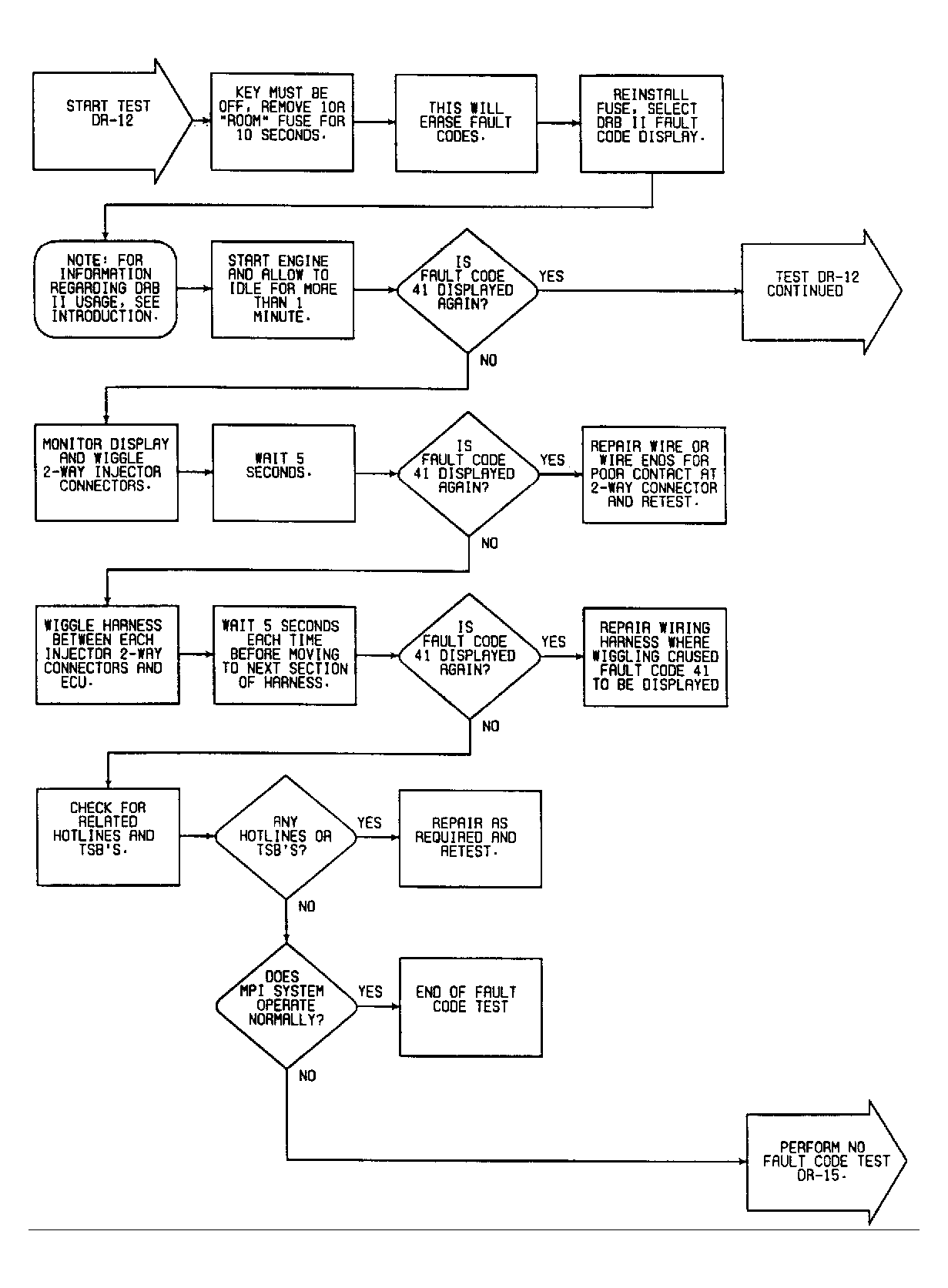

Fig 2: Flow Chart DR-12 (1.5L) (1 of 2)
G90C15455
Fig 3: Flow Chart DR-12 (1.5L) (2 of 2)
G90D15456
