Dr-16: No Fault Code Sensor Test

DR-16 NO FAULT CODE SYSTEM TEST

DRBII EGR Temp. Display	Engine Conditions
160°F	Hot Idle
350°F	25 MPH at 3,500 RPM
311°F	55 MPH at 3,500 RPM

Fig 1: Circuit Diagram DR-16 (1.5L) (1 of 2)

G90F15391

Fig 2: Circuit Diagram DR-16 (1.5L) (2 of 2)

G90G15392

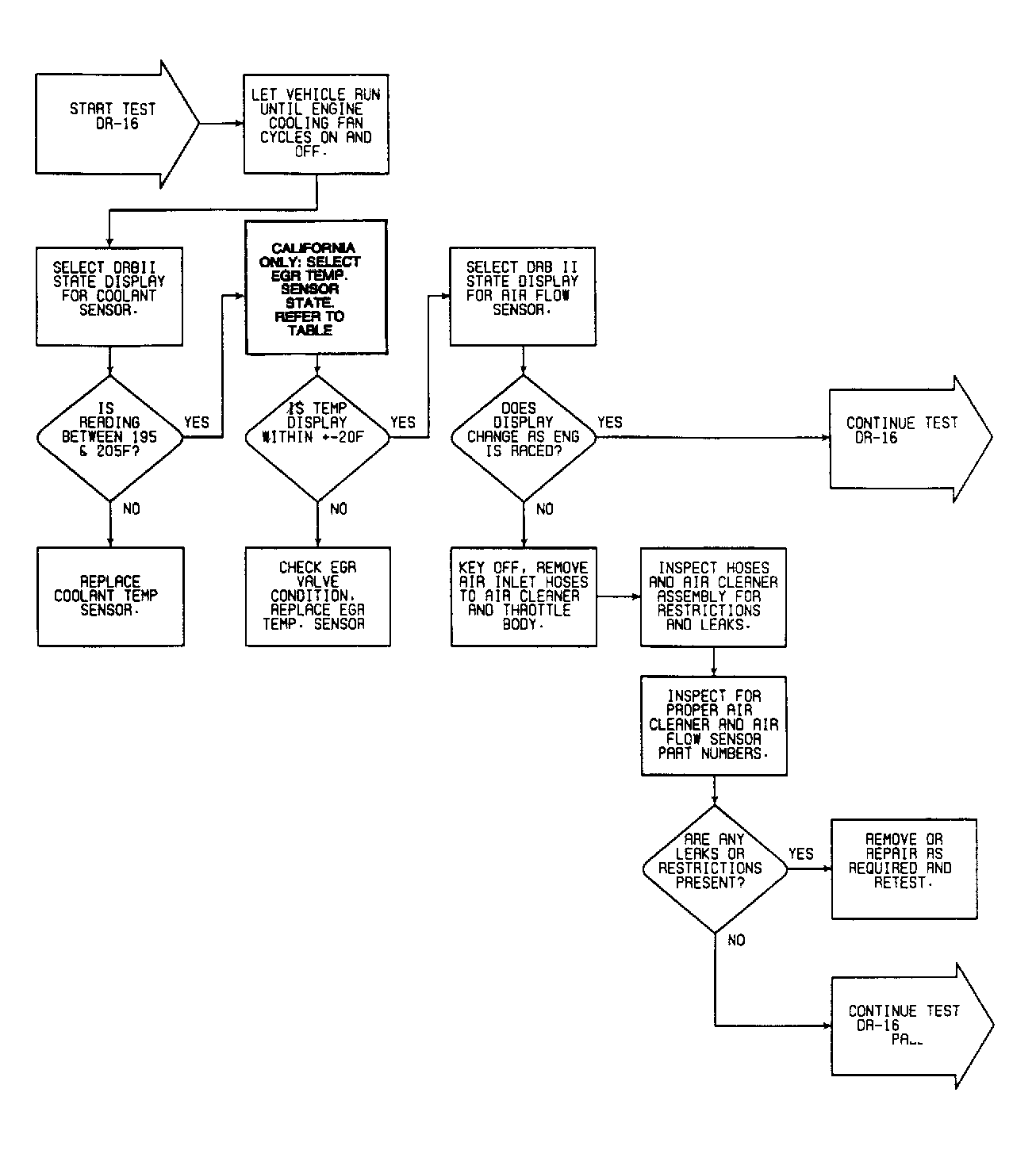

Fig 3: Flow Chart DR-16 (1.5L) (1 of 5)

G90C15463

DR-16 NO FAULT CODE SYSTEM TEST

Altitude	Baro Reading
-1,000 Ft.	31.01"
-900 Ft.	30.90"
Sea Level	29.92"
500 Ft.	29.38"
1,000 Ft.	28.85"
1,500 Ft.	28.33"
2,000 Ft.	27.82"
3,000 Ft.	26.81"
4,000 Ft.	25.84"
6,000 Ft.	23.97"
8,000 Ft.	22.22"
10,000 Ft.	20.57"
12,000 Ft.	19.02"
14,000 Ft.	17.57"

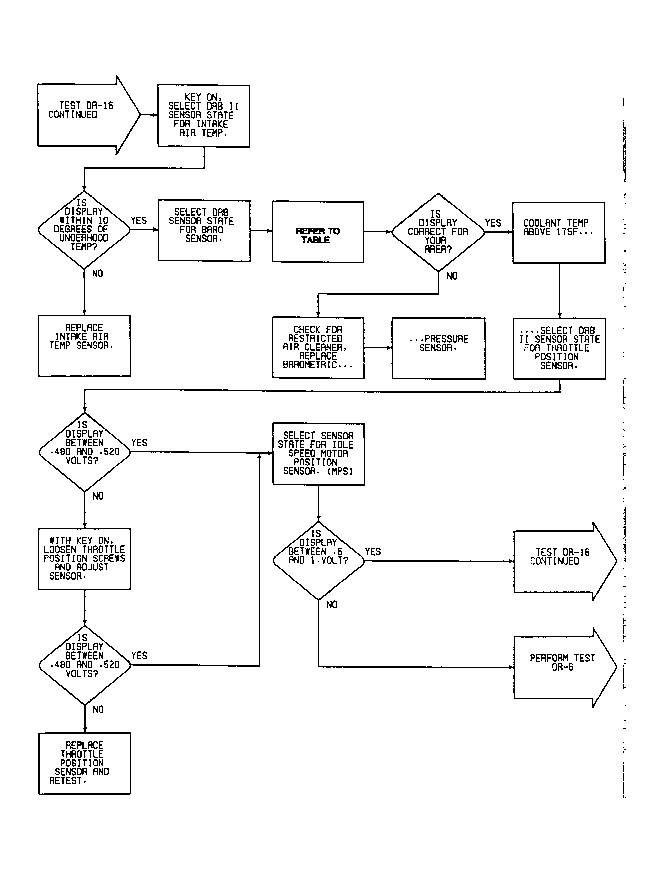

Fig 4: Flow Chart DR-16 (1.5L) (2 of 5)

G90D15464

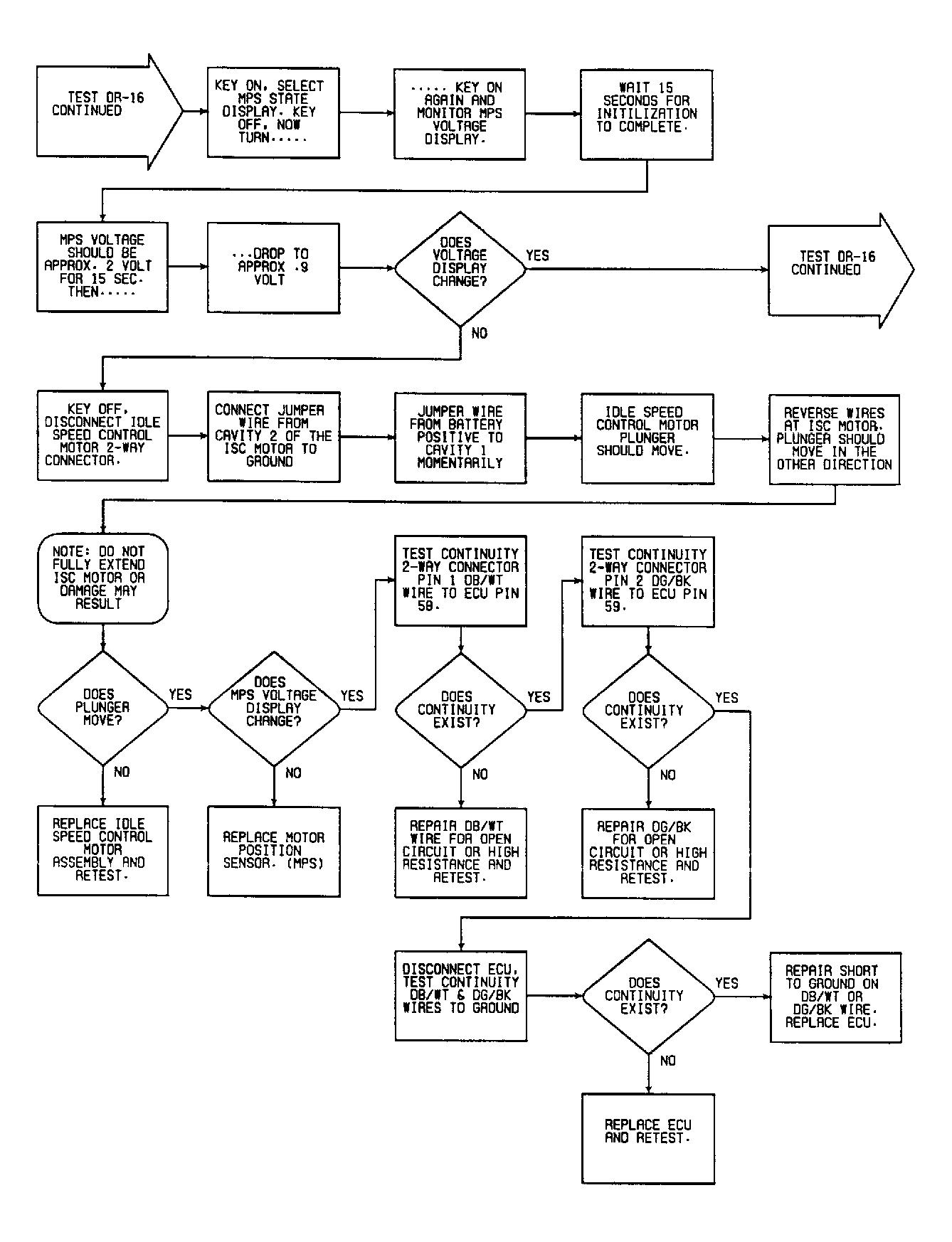

Fig 5: Flow Chart DR-16 (1.5L) (3 of 5)

G90E15465

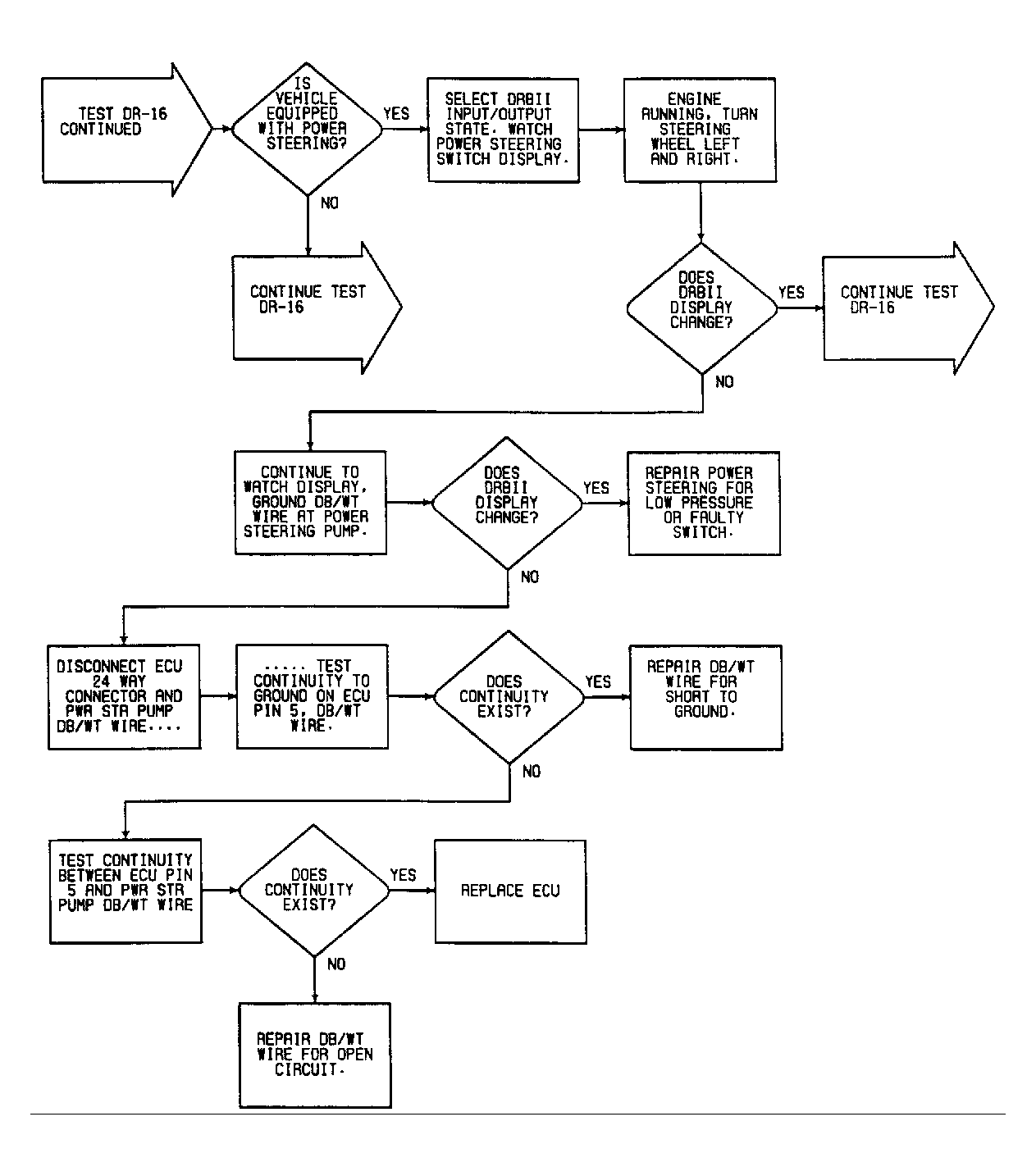

Fig 6: Flow Chart DR-16 (1.5L) (4 of 5)

G90F15466

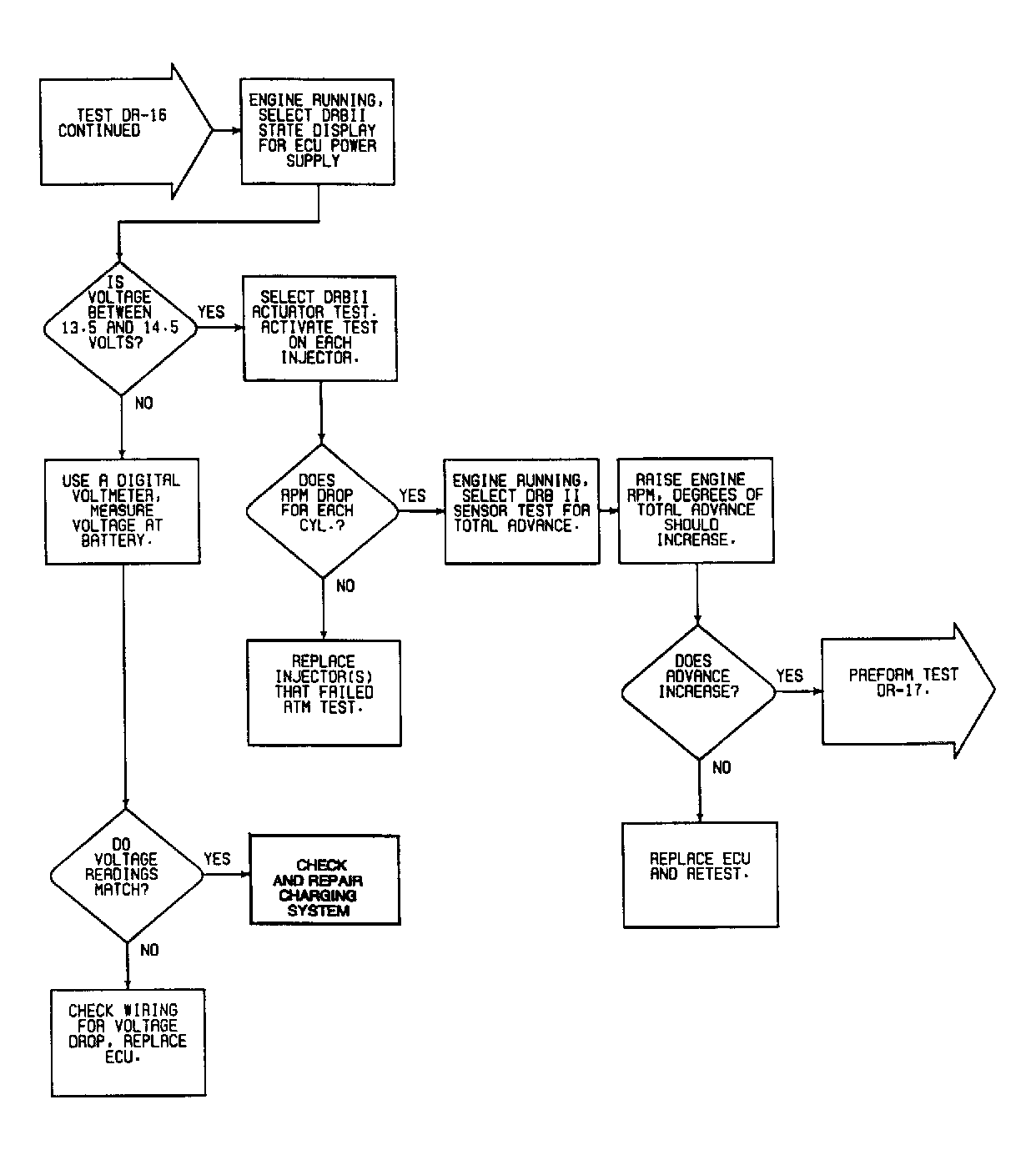

Fig 7: Flow Chart DR-16 (1.5L) (5 of 5)

G90G15467
