Dr-17: No Fault Code Sensor Tests

Fig 1: Circuit Diagram DR-17 (1.6L) (1 Of 6)

G90A15404

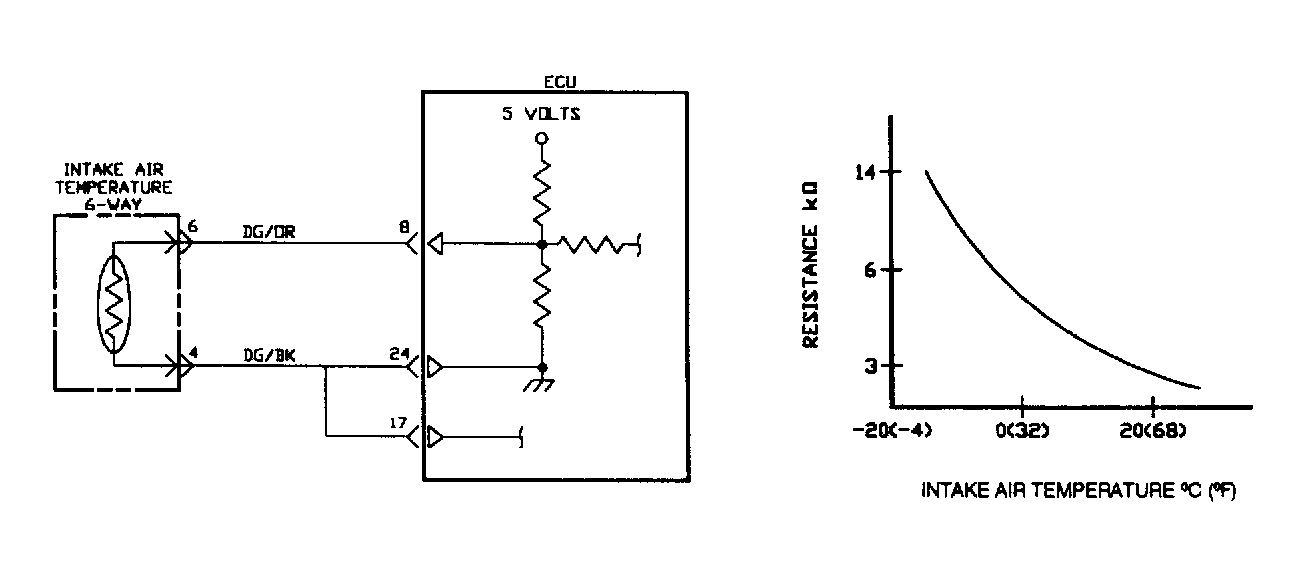

Fig 2: Circuit Diagram DR-17 (1.6L) (2 Of 6)

G90D15407

Fig 3: Circuit Diagram DR-17 (1.6L) (3 Of 6)

G90E15408

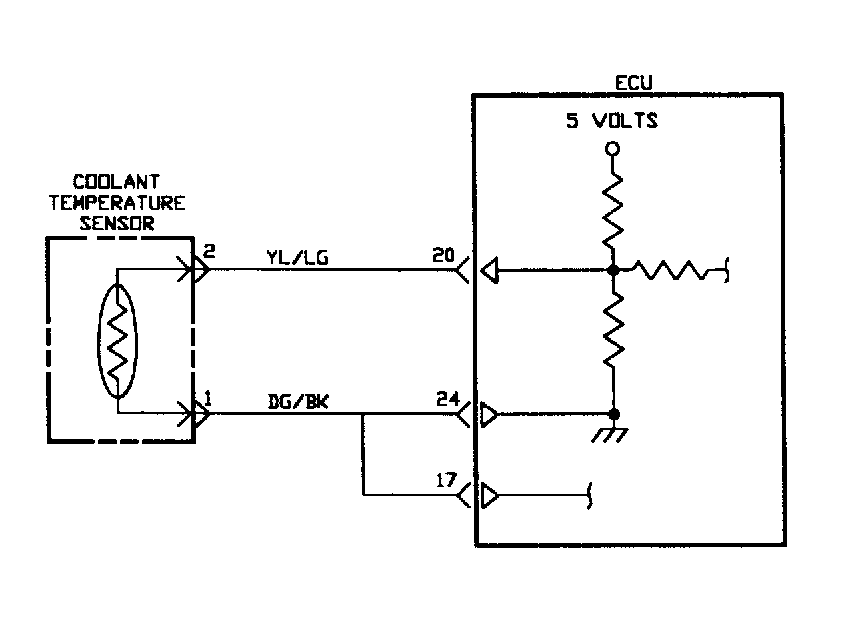

Fig 4: Circuit Diagram DR-17 (1.6L) (4 Of 6)

G90C15422

Fig 5: Circuit Diagram DR-17 (1.6L) (5 Of 6)

G90D15423

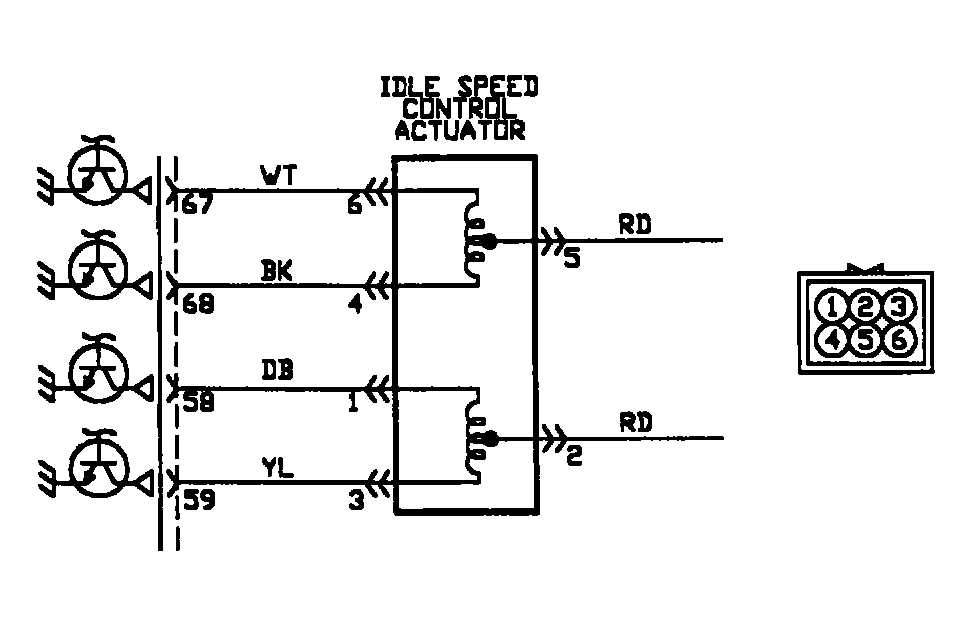

Fig 6: Circuit Diagram DR-17 (1.6L) (6 Of 6)

G90E15424

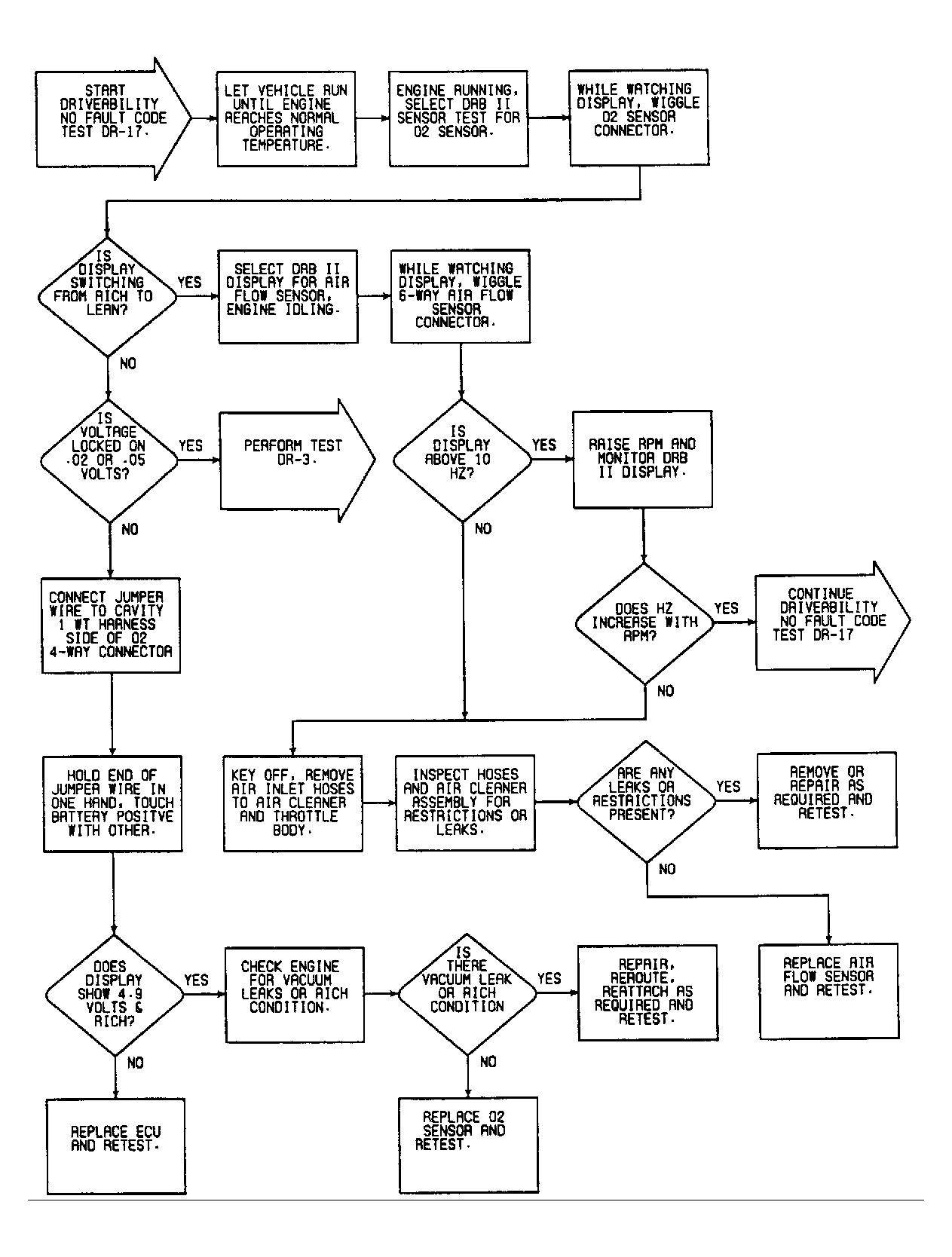

Fig 7: Flow Chart DR-17 (1.6L) (1 of 6)

G90I19966

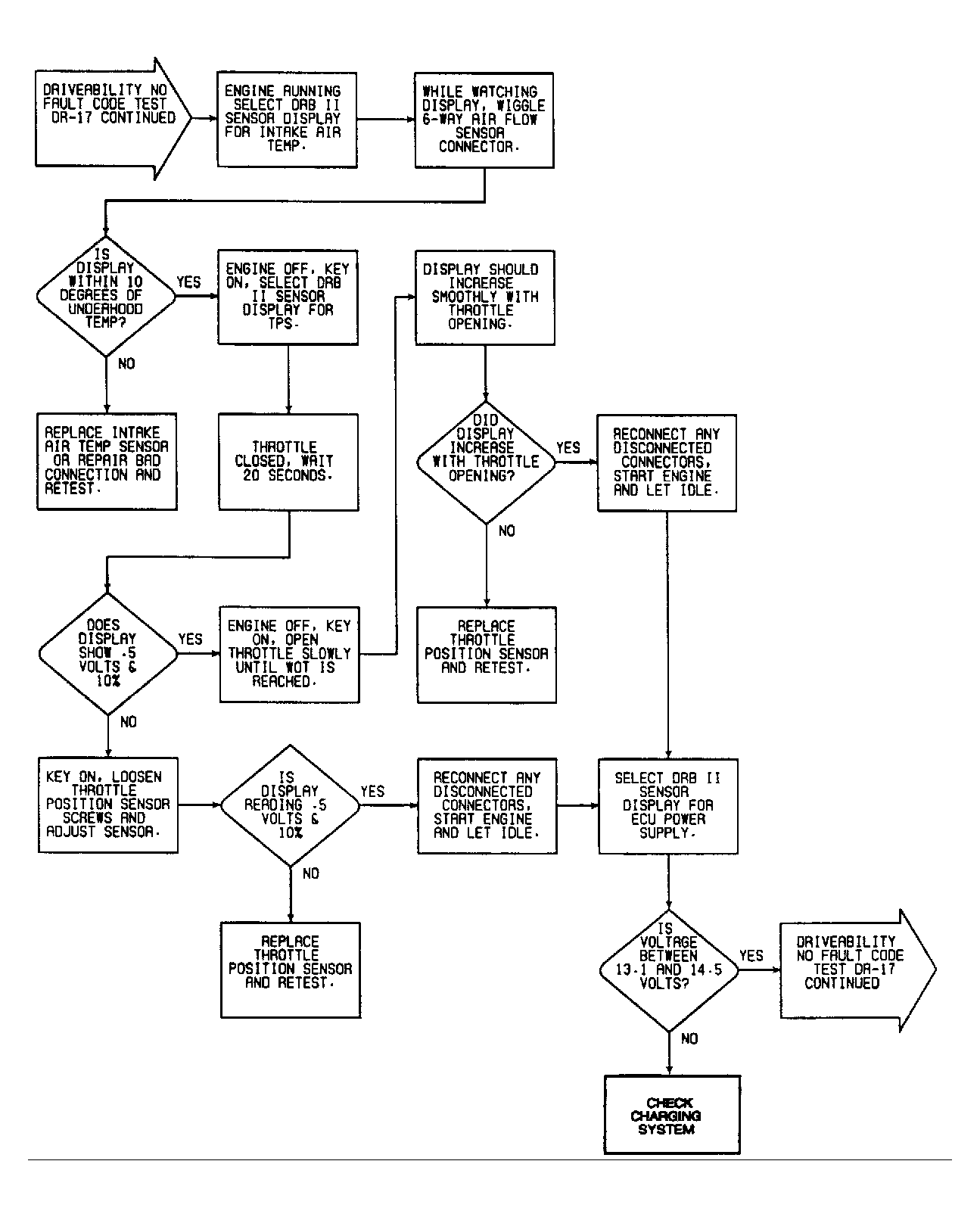

Fig 8: Flow Chart DR-17 (1.6L) (2 of 6)

G90J19967

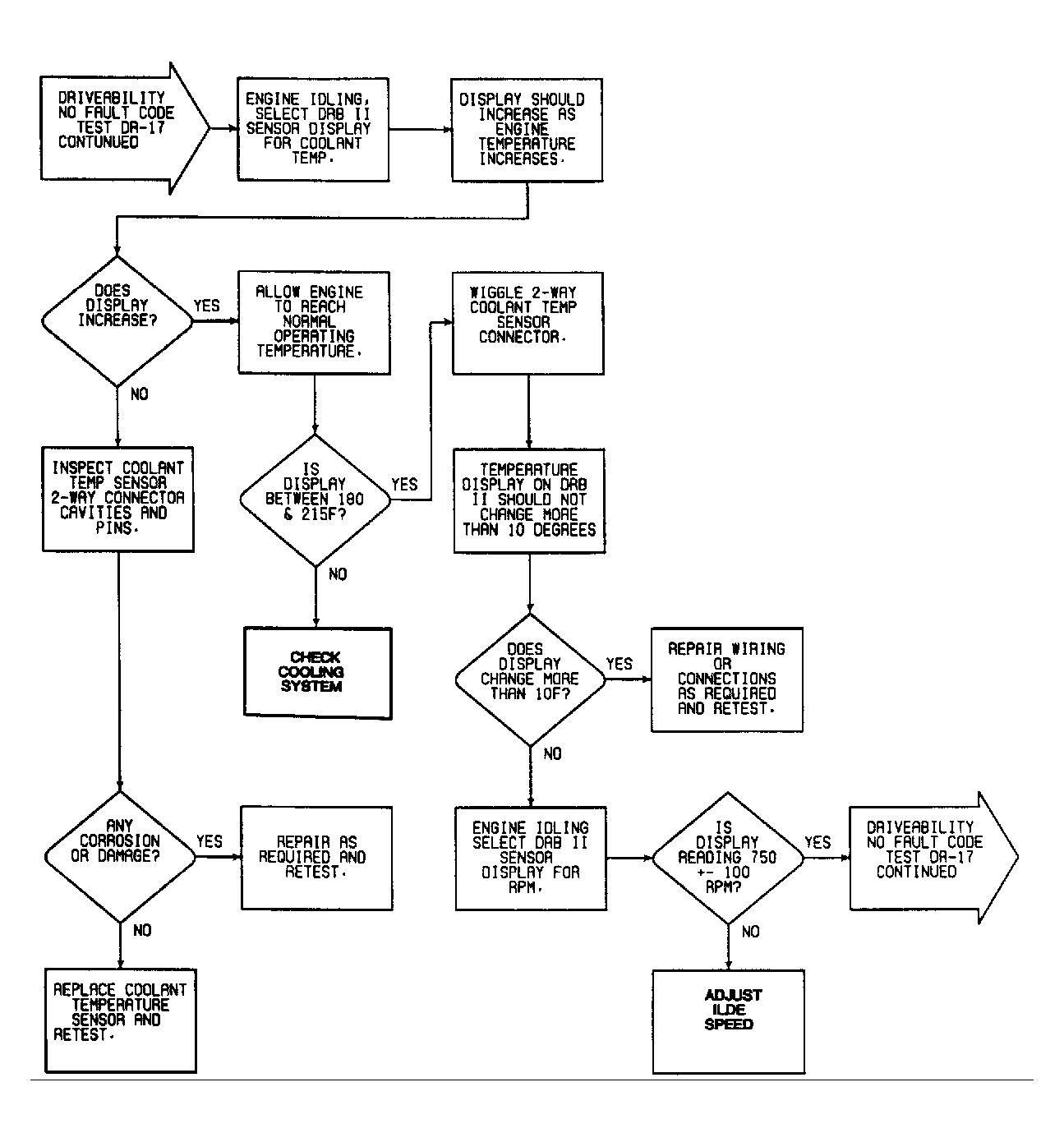

Fig 9: Flow Chart DR-17 (1.6L) (3 of 6)

G90A19968

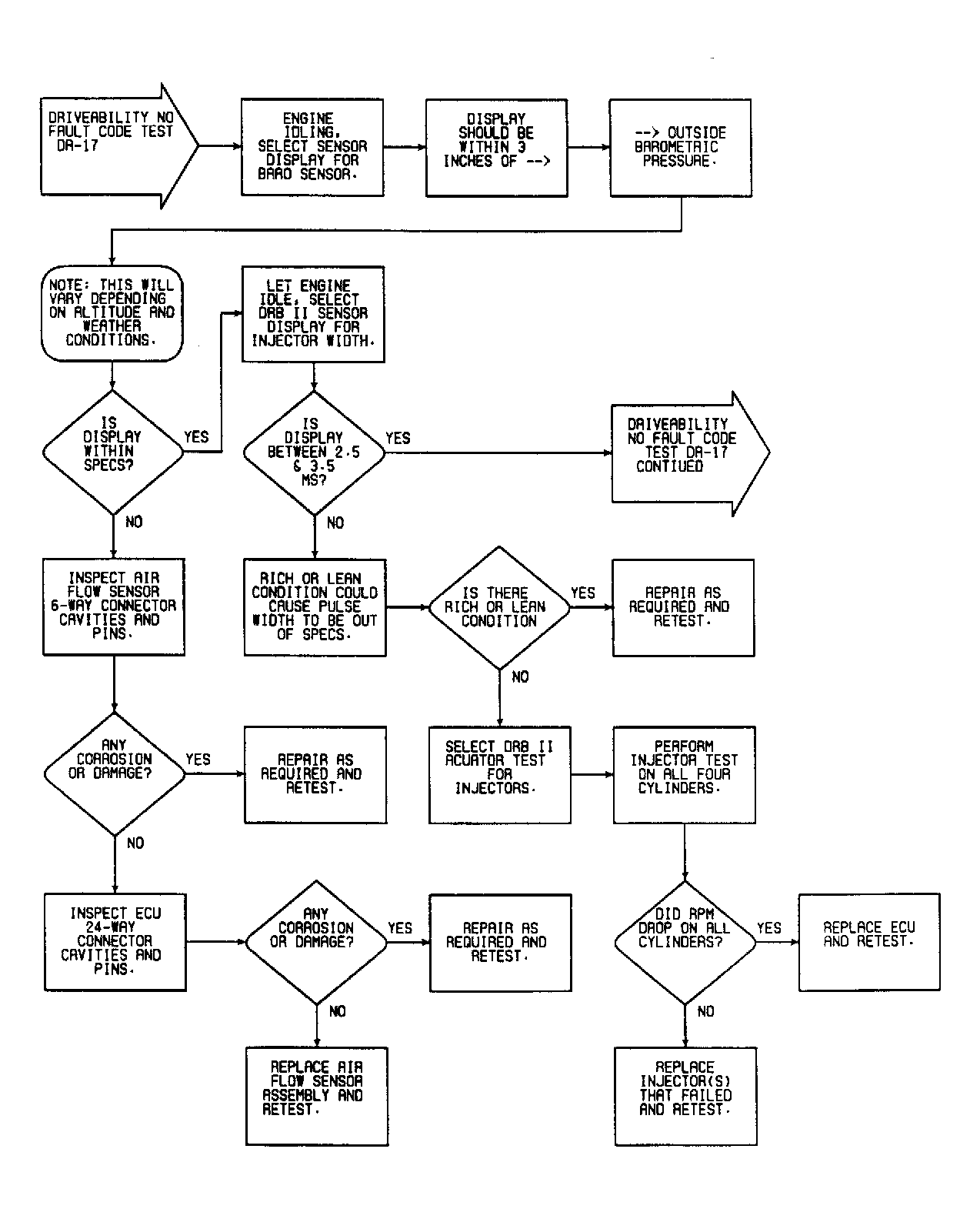

Fig 10: Flow Chart DR-17 (1.6L) (4 of 6)

G90B19969

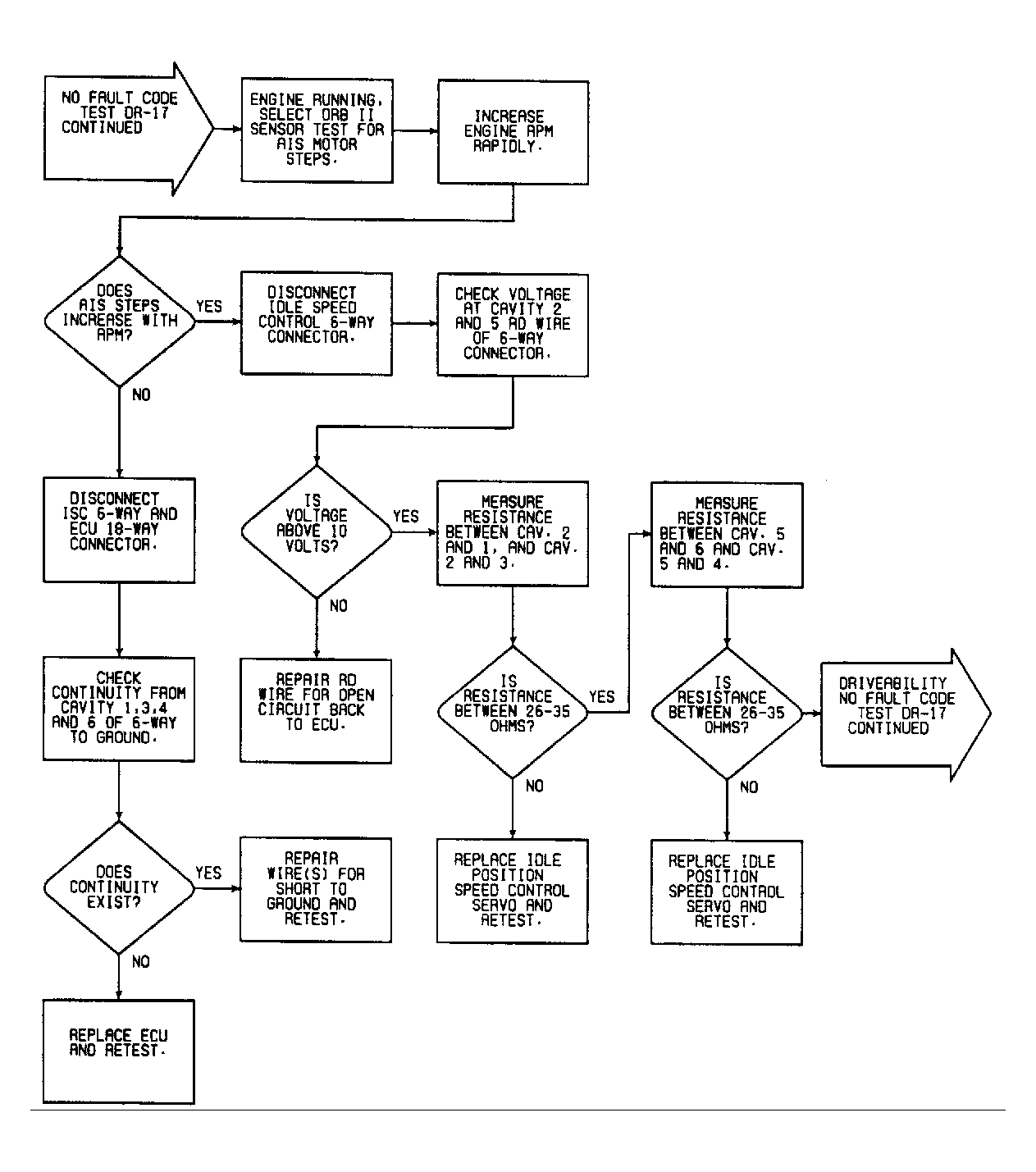

Fig 11: Flow Chart DR-17 (1.6L) (5 of 6)

G90E19970

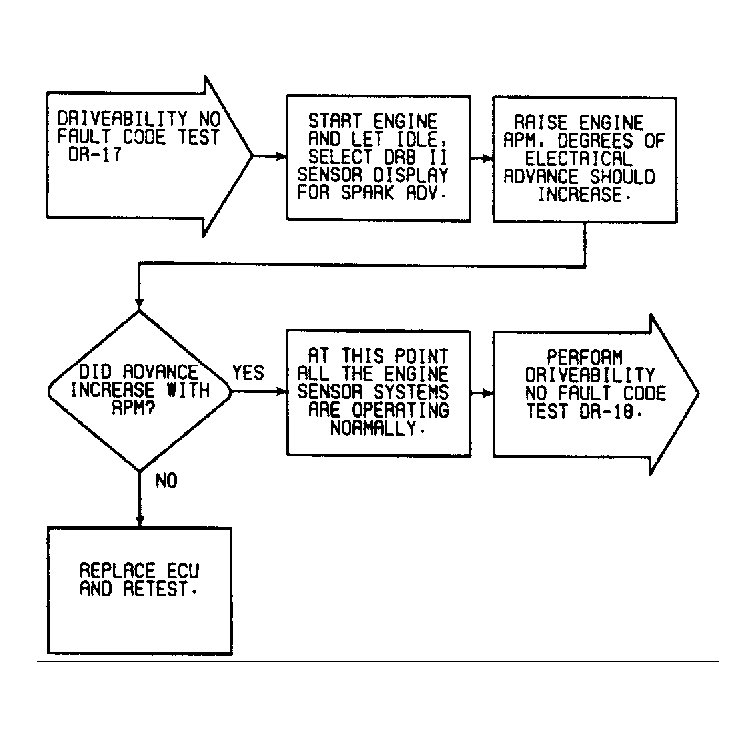

Fig 12: Flow Chart DR-17 (1.6L) (6 of 6)

G90F19971
