NS-2: Testing Crank Angle Sensor Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
NS-2: Testing Crank Angle Sensor Circuit

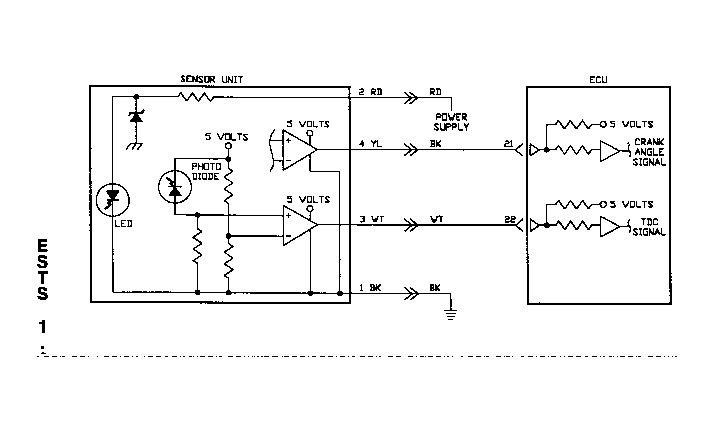

Fig 1: Circuit Diagram NS-2 (1.6L)

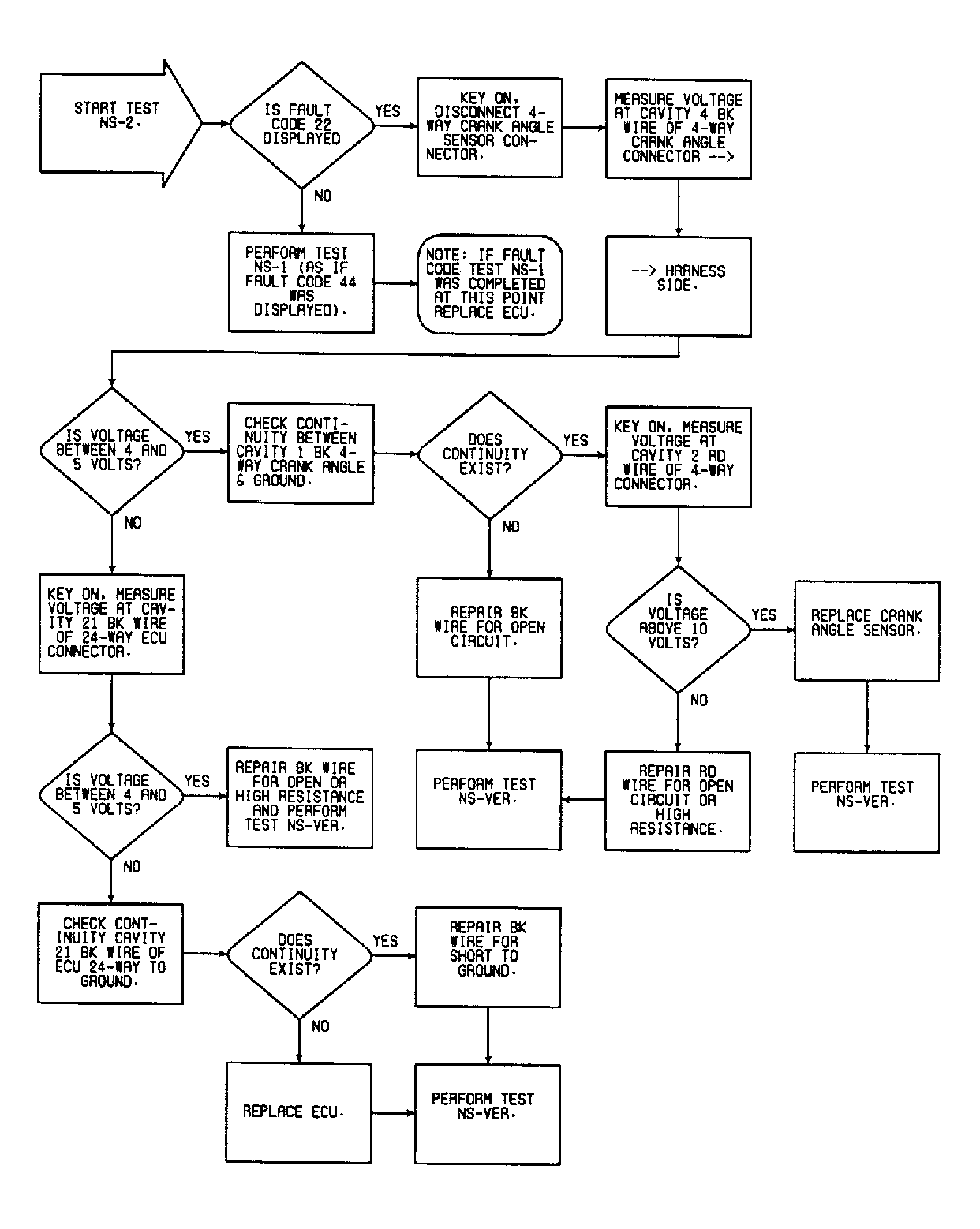

Fig 2: Flow Chart NS-2 (1.6L)
