Dr-10: Code 24 Vehicle Speed Sensor Circuit

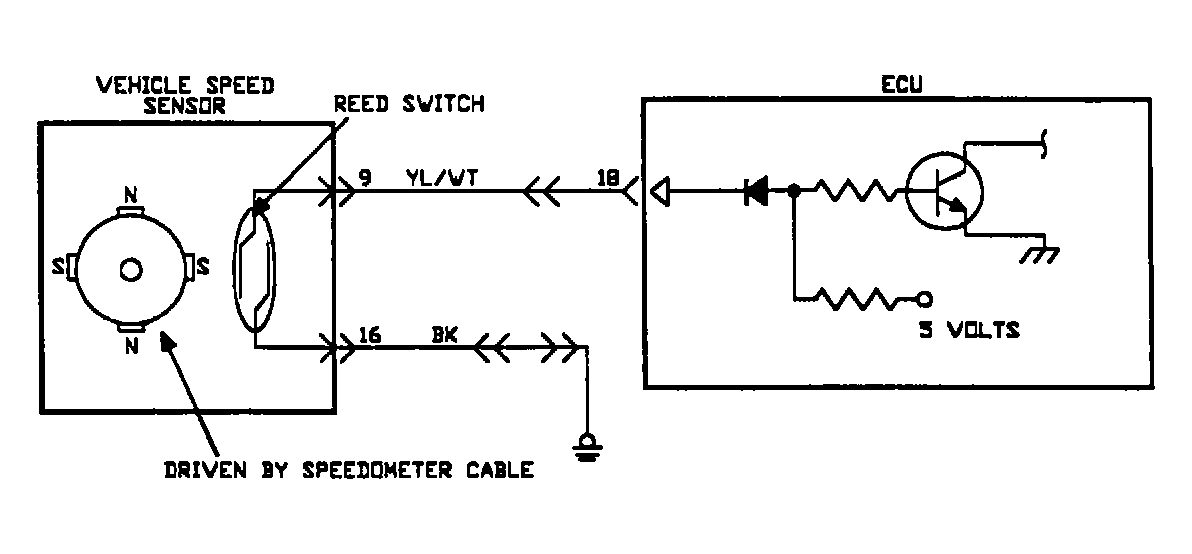

Fig 1: Circuit Diagram DR-10 (1.8L)
G90F20151

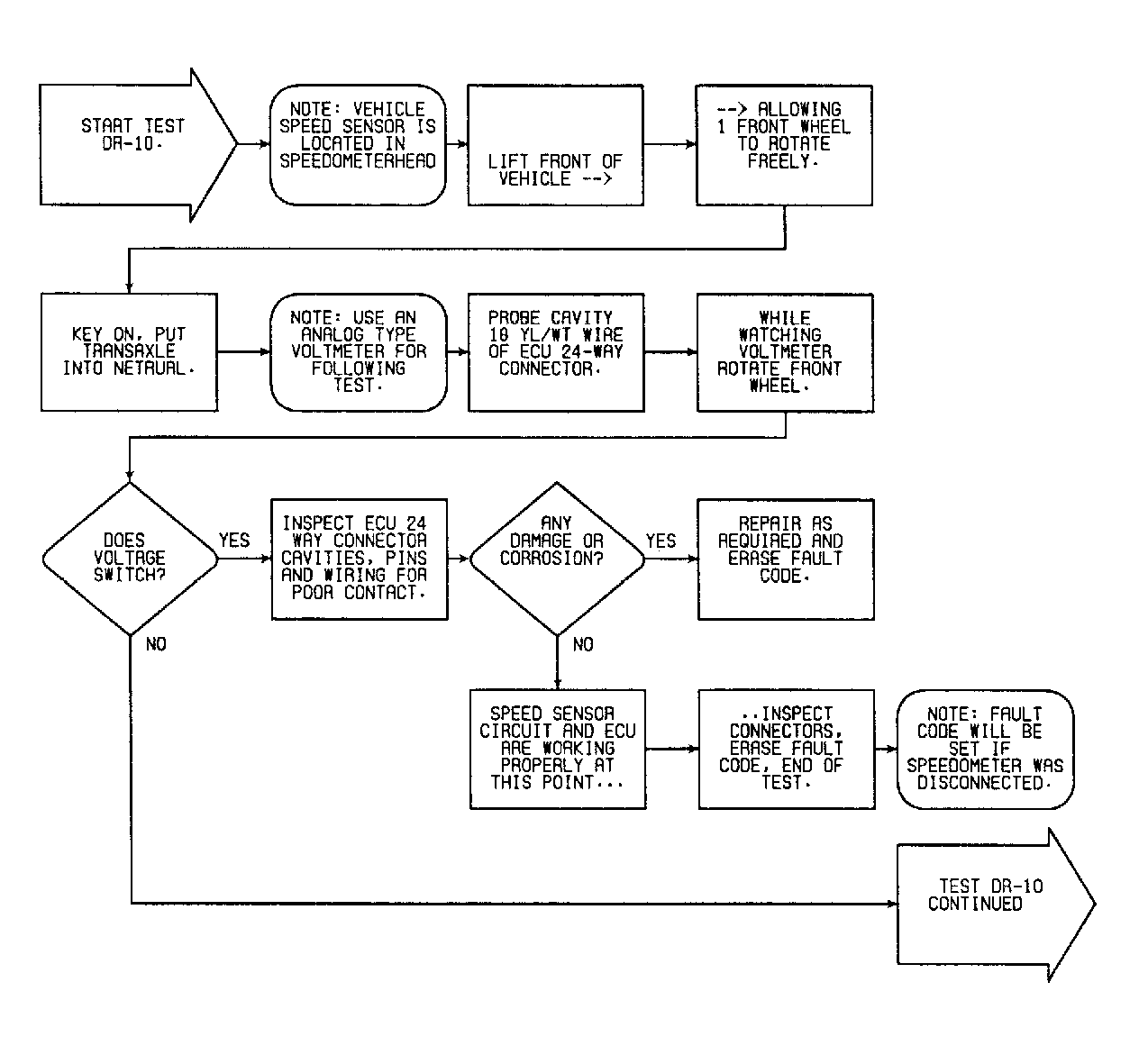

Fig 2: Flow Chart DR-10 (1.8L) (1 of 2)
G90A02103

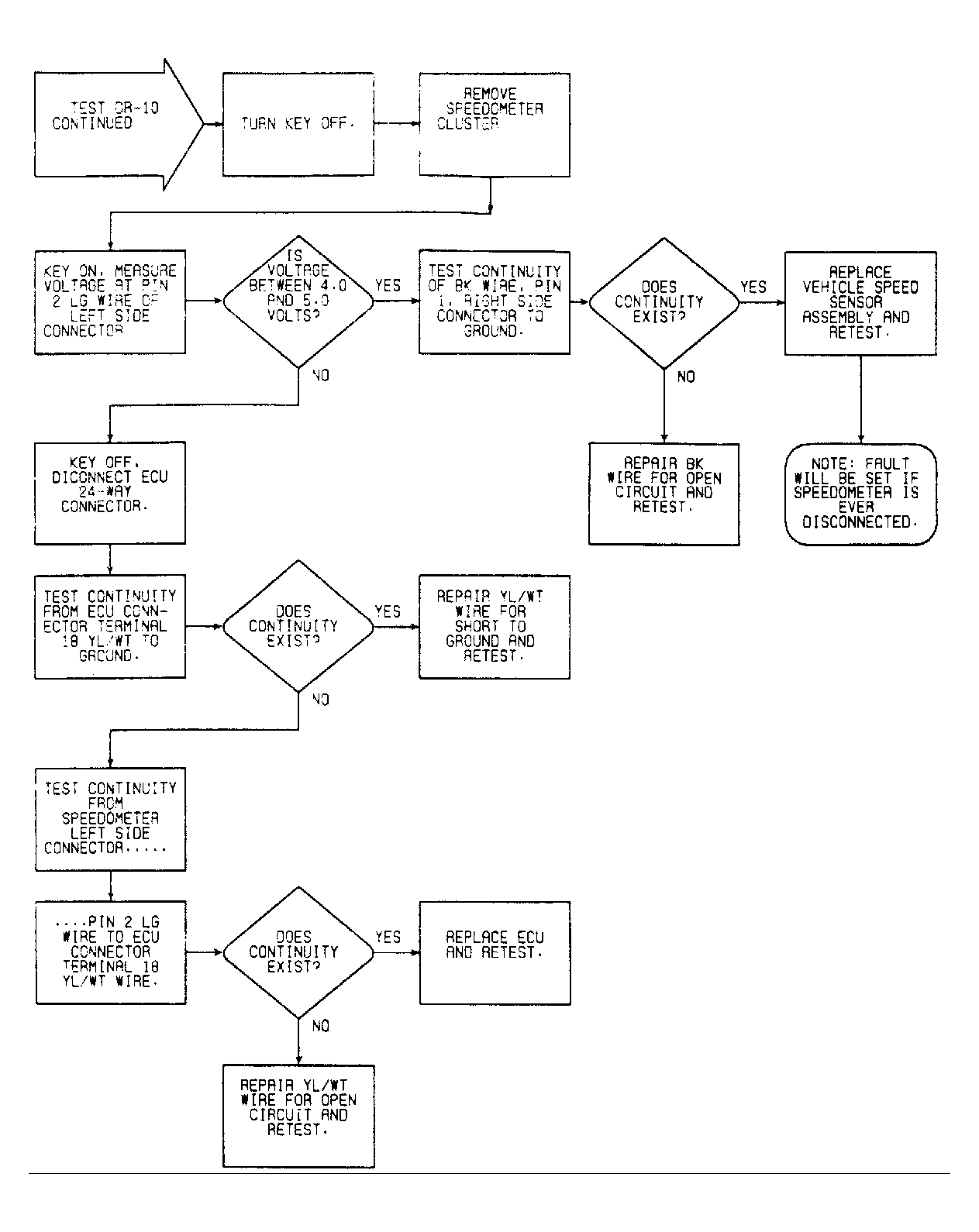

Fig 3: Flow Chart DR-10 (1.8L) (2 of 2)
G90C02104
