Dr-16: No Fault Code Sensor Test

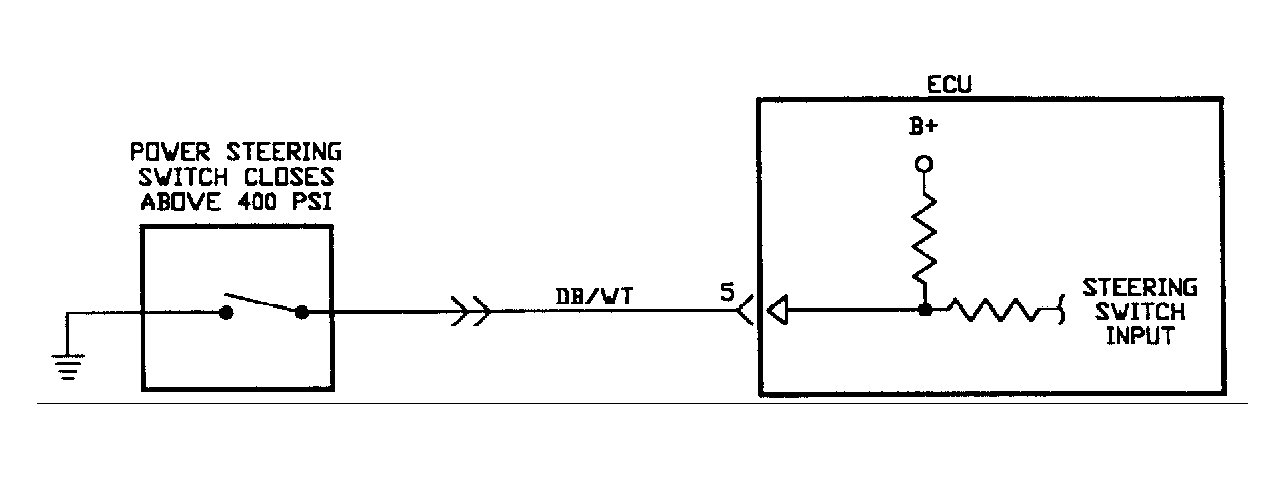

Fig 1: Circuit Diagram DR-16 (1.8L) (1 Of 2)

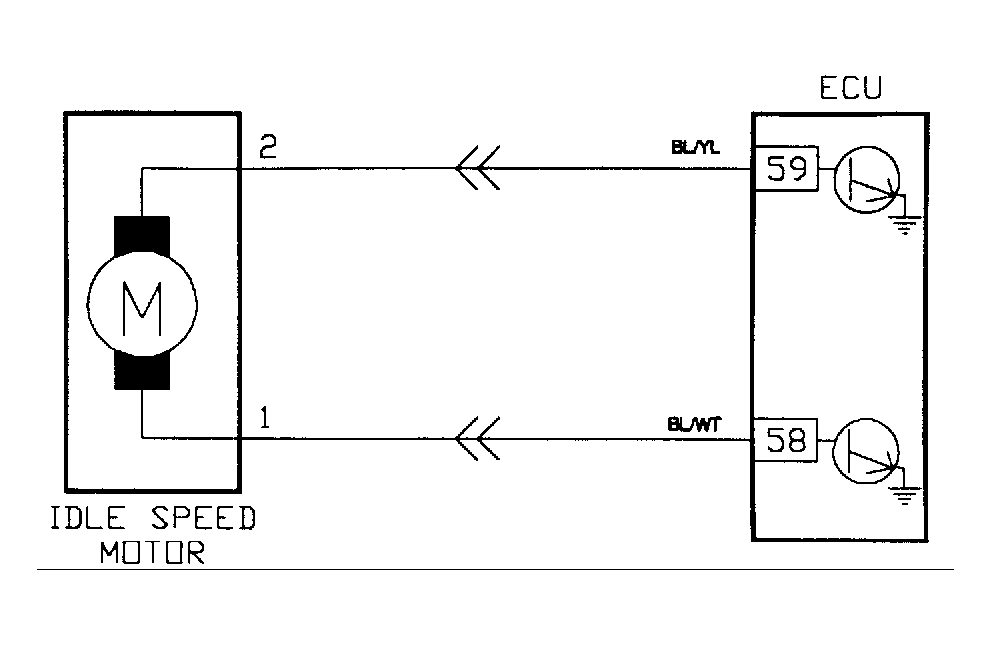

Fig 2: Circuit Diagram DR-16 (1.8L) (2 Of 2)

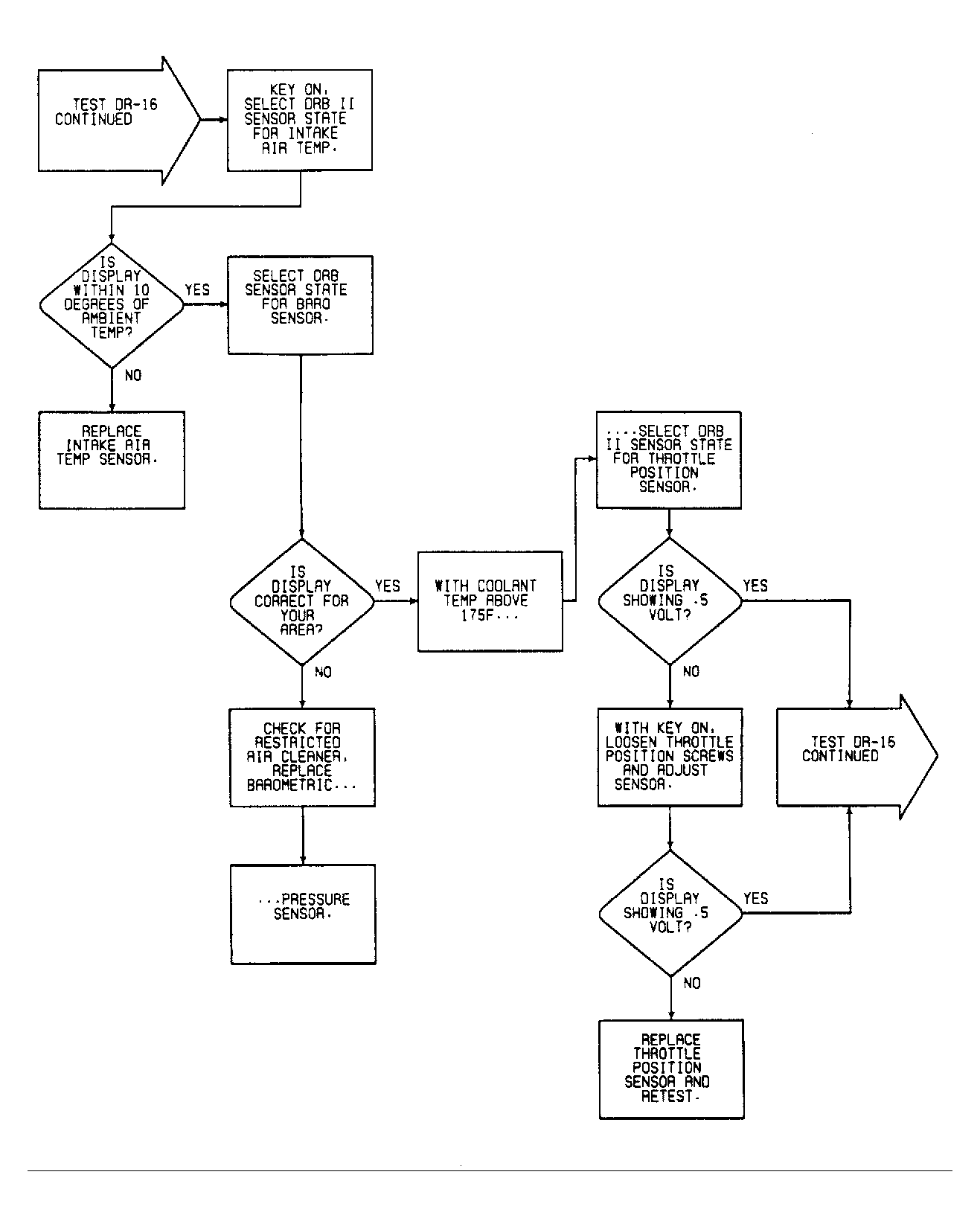

Fig 3: Flow Chart DR-16 (1.8L) (1 of 5)

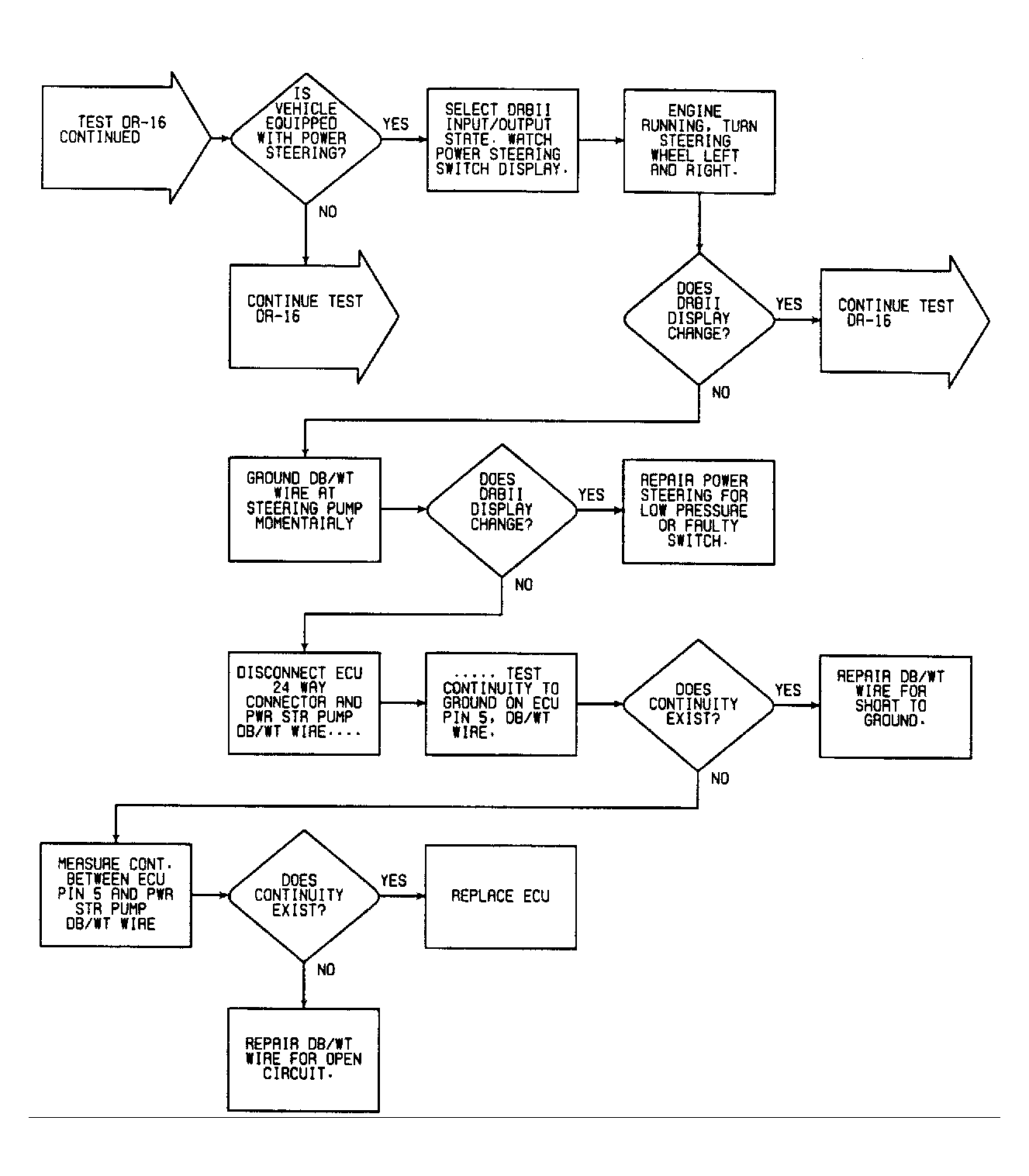

Fig 4: Flow Chart DR-16 (1.8L) (2 of 5)

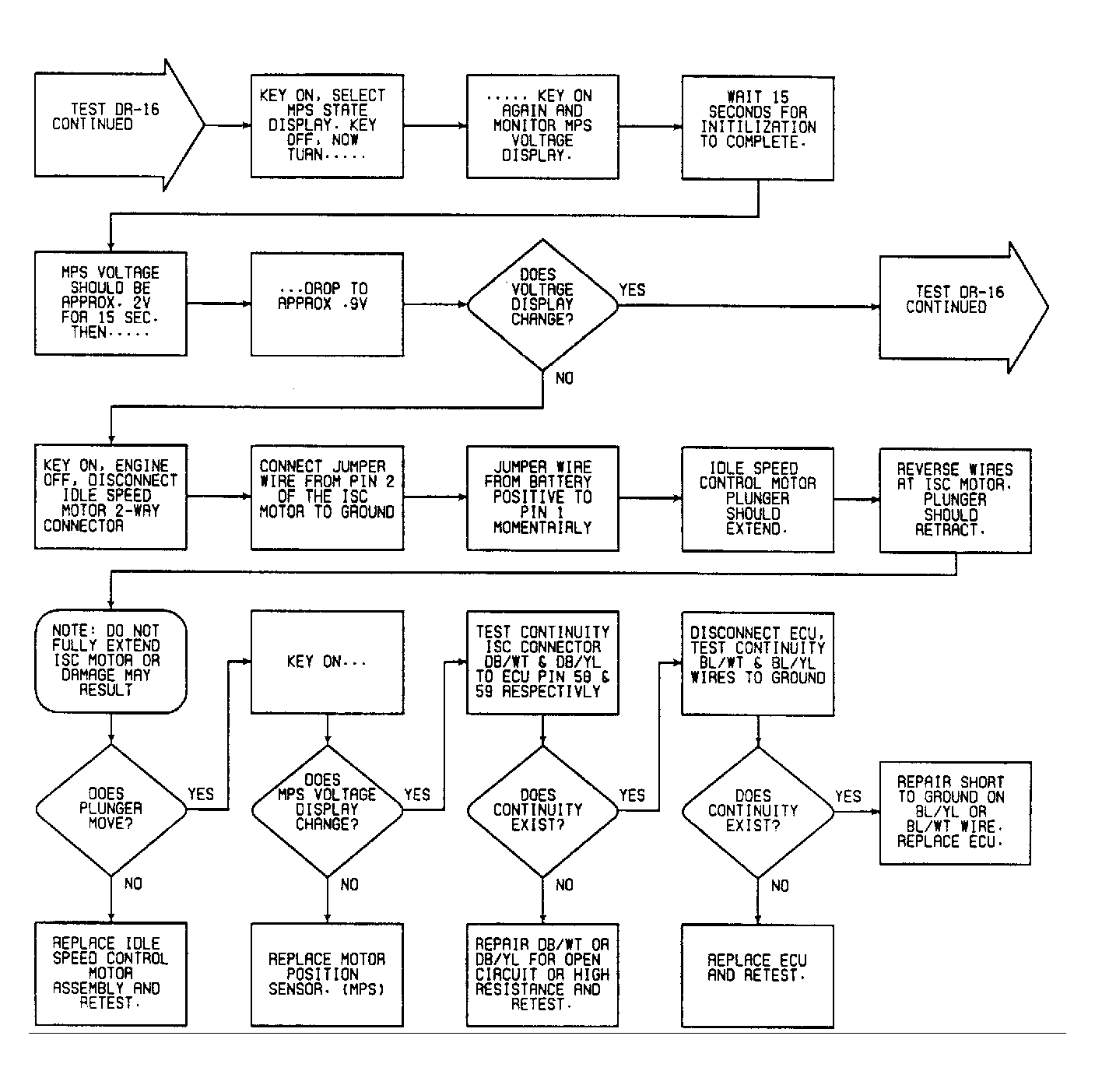

Fig 5: Flow Chart DR-16 (1.8L) (3 of 5)

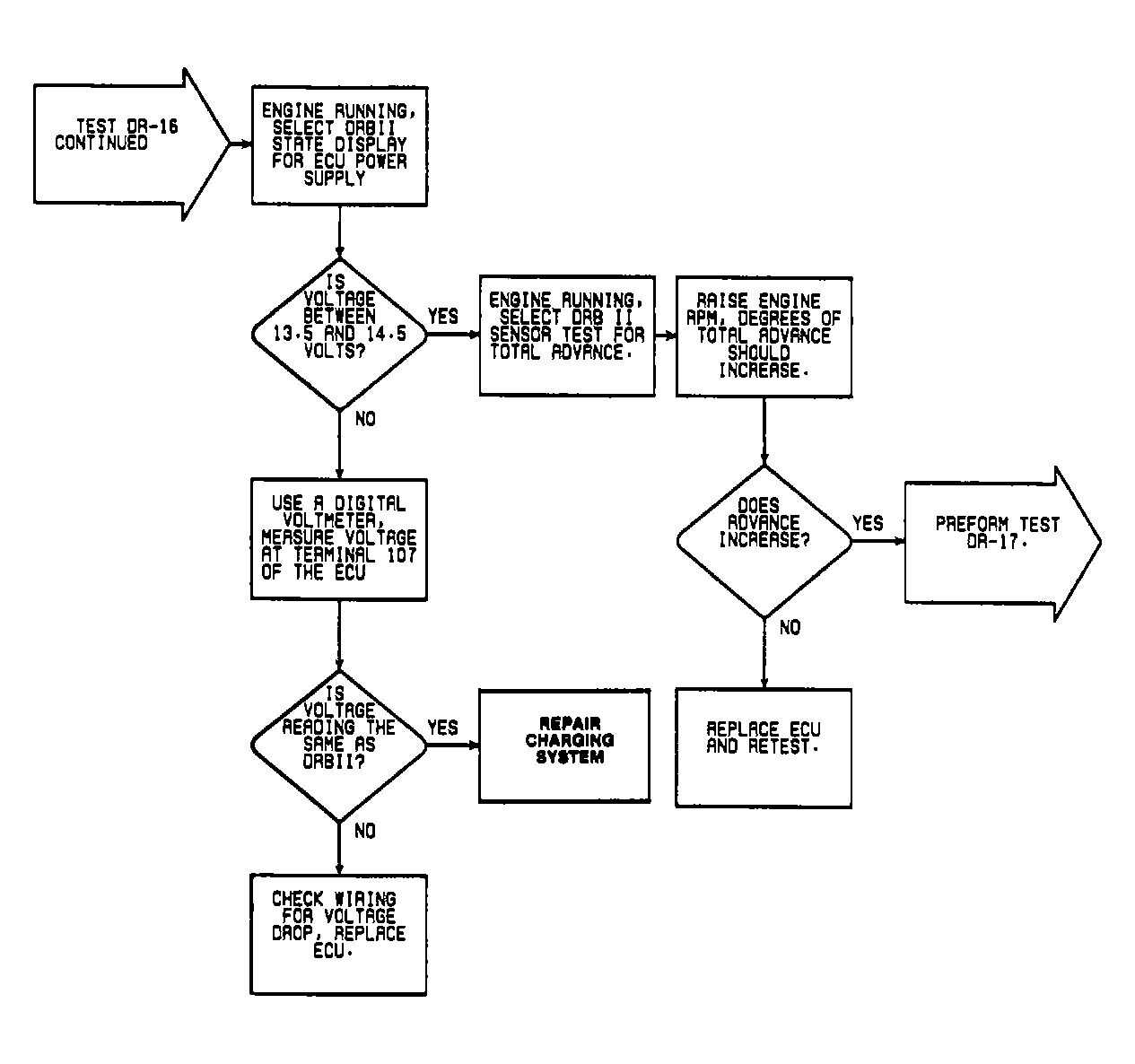

Fig 6: Flow Chart DR-16 (1.8L) (4 of 5)

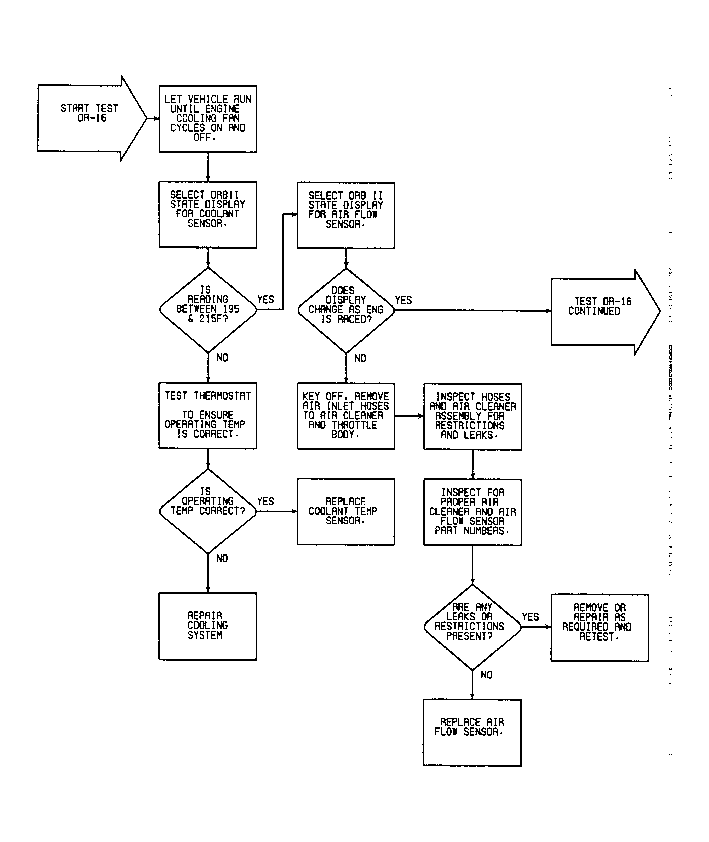

Fig 7: Flow Chart DR-16 (1.8L) (5 of 5)
