Power Steering Oil Pressure Switch

WARNING: This page is about a different car, the 1991 Mitsubishi 3000GT. However, it is still accessible from the selected car via links, so may be relevant.

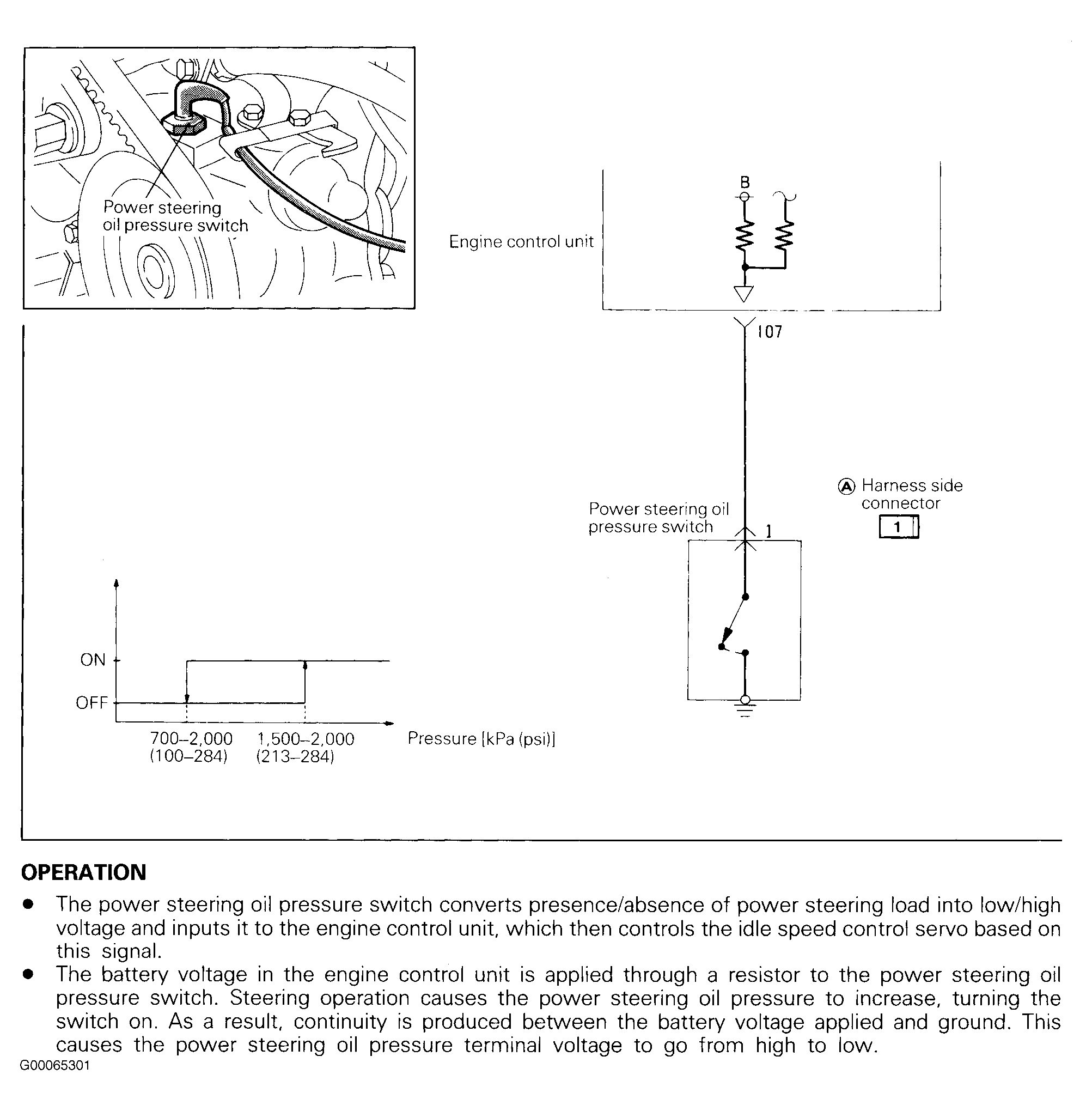

Fig 1: Power Steering Oil Pressure Switch (1 Of 2)
G00065301Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

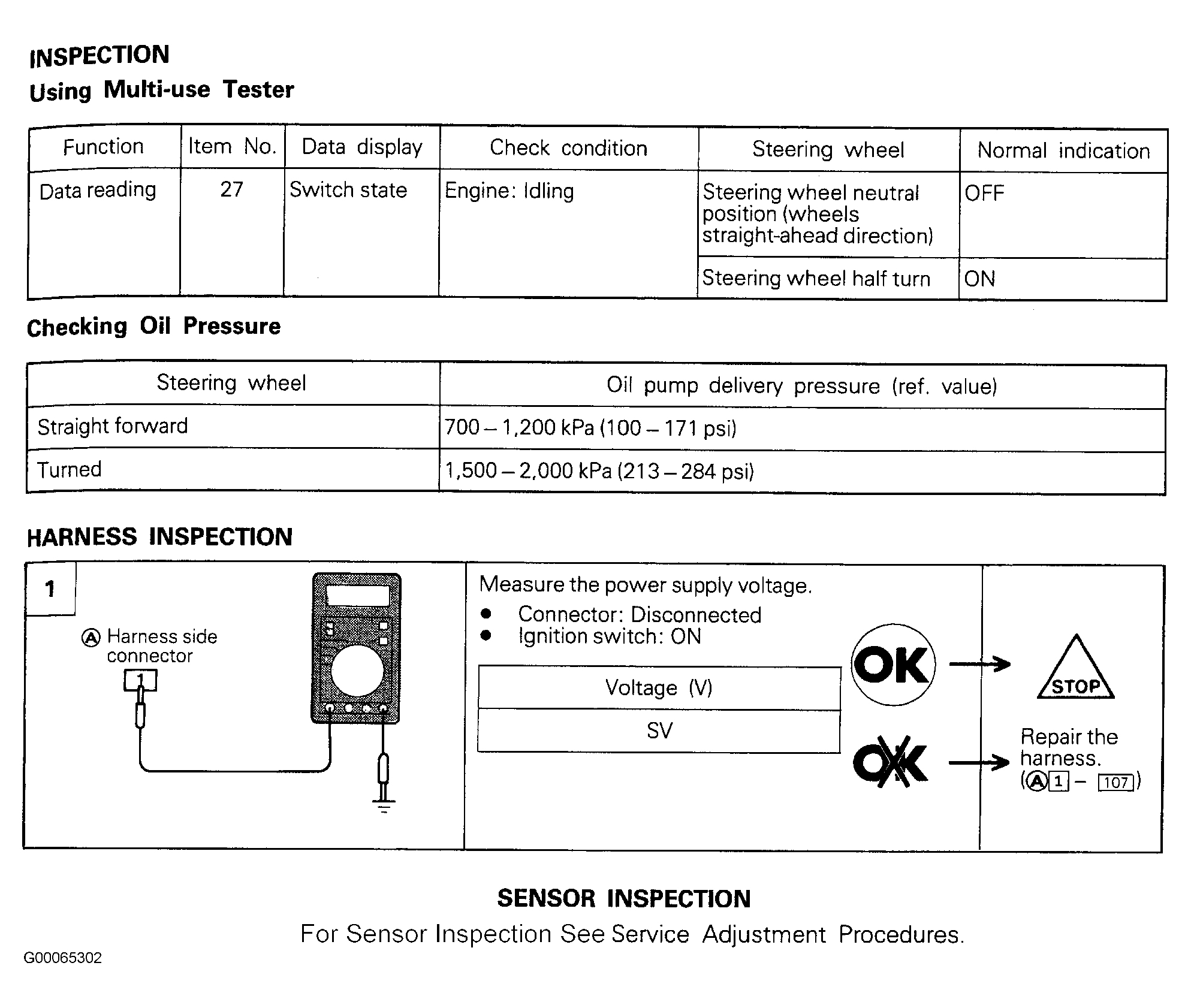

Fig 2: Power Steering Oil Pressure Switch (2 Of 2)
G00065302Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
