Dr-11A: Testing Injectors

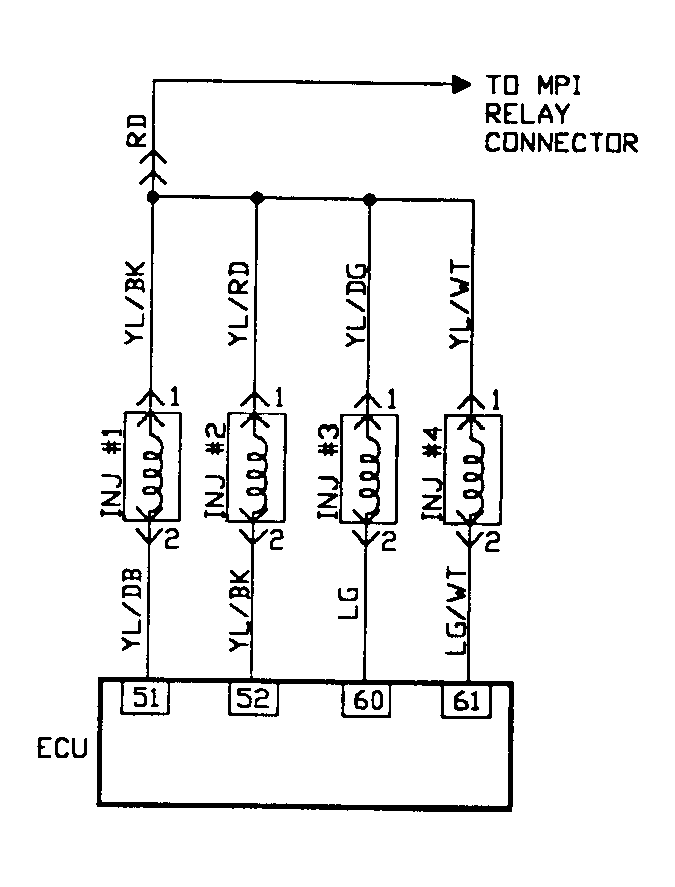

Fig 1: Driveability Test DR-11A: Circuit Diagram

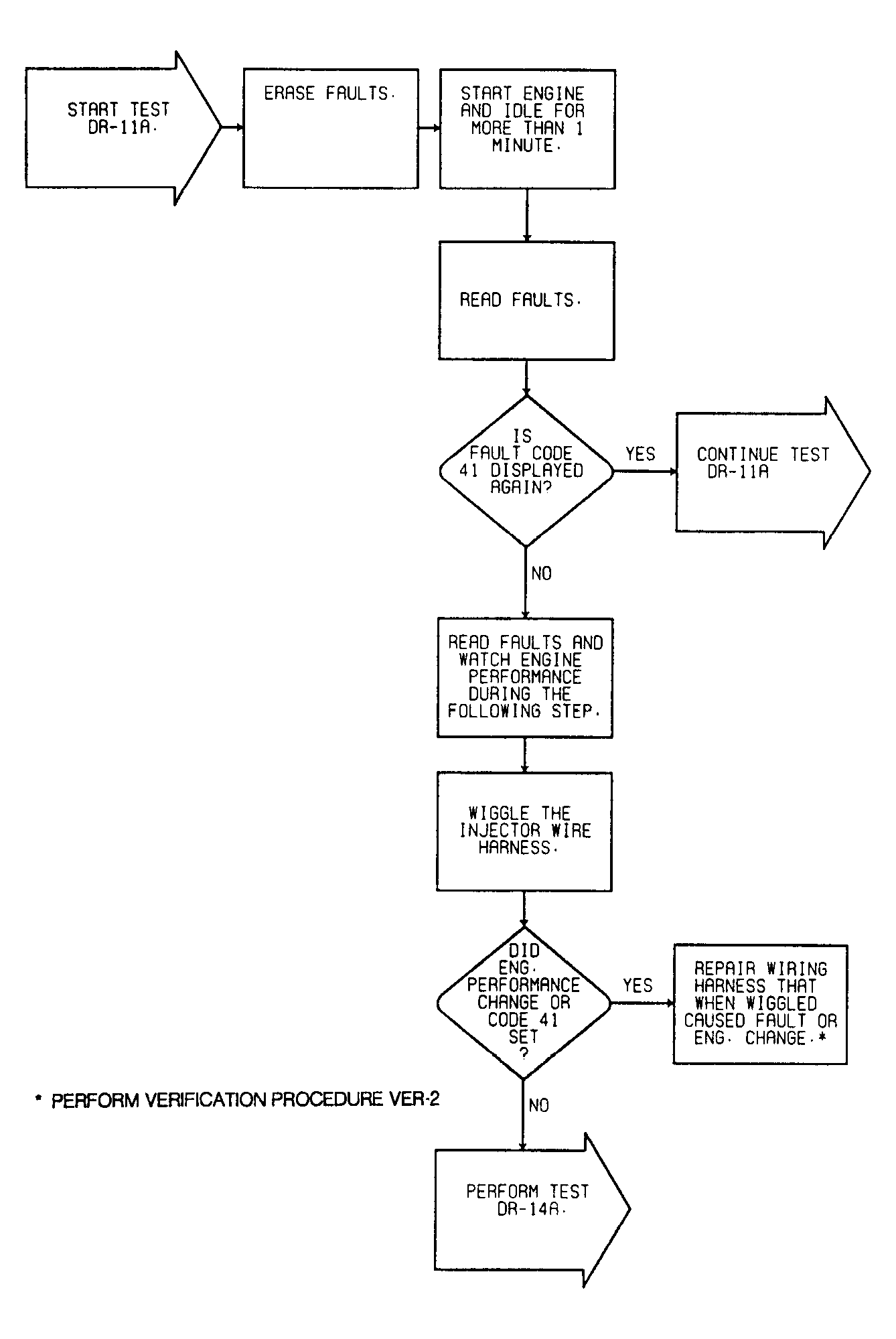

Fig 2: Driveability Test DR-11A: Diagnostic Flow Chart (1 of 5)

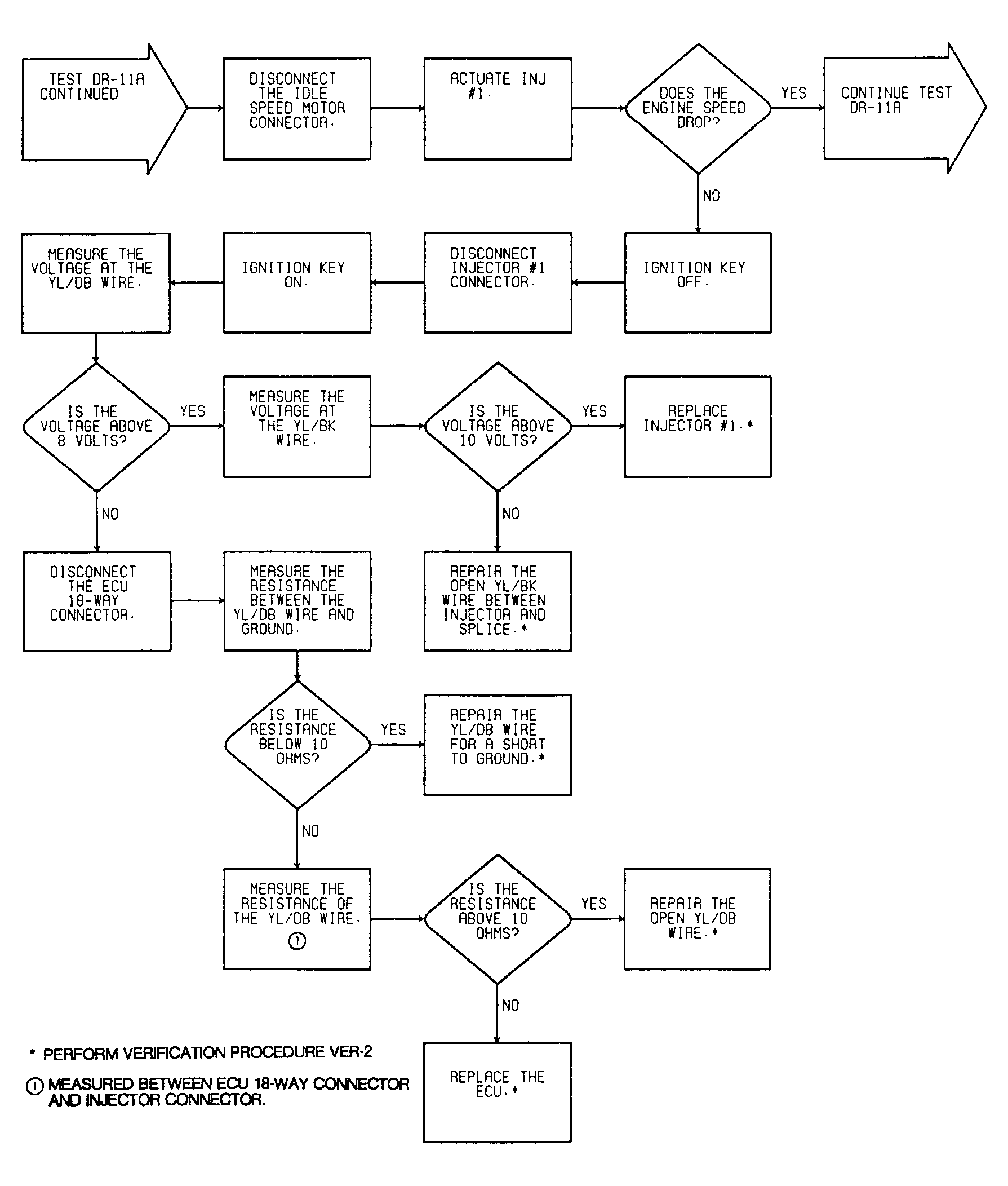

Fig 3: Driveability Test DR-11A: Diagnostic Flow Chart (2 of 5)

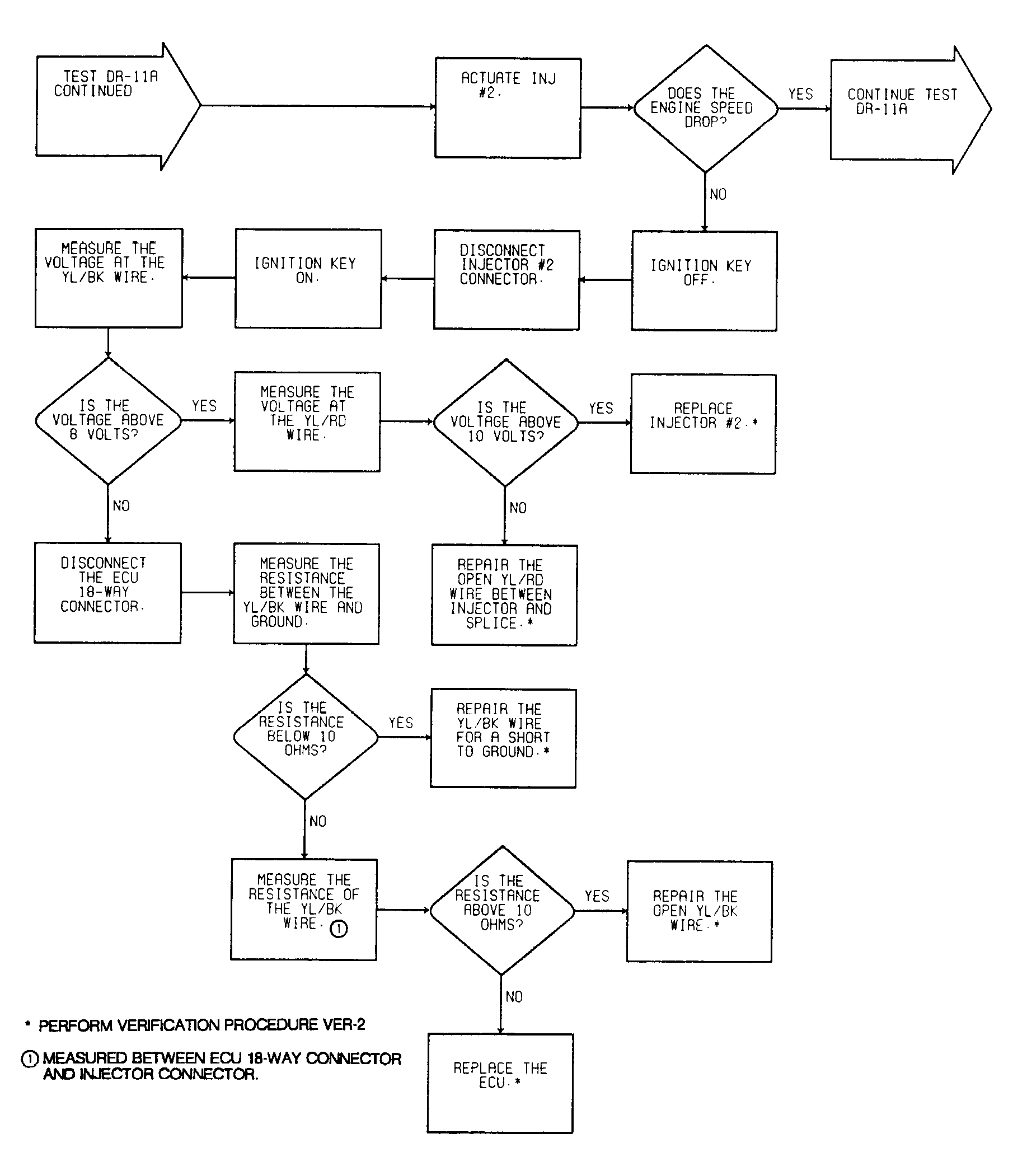

Fig 4: Driveability Test DR-11A: Diagnostic Flow Chart (3 of 5)

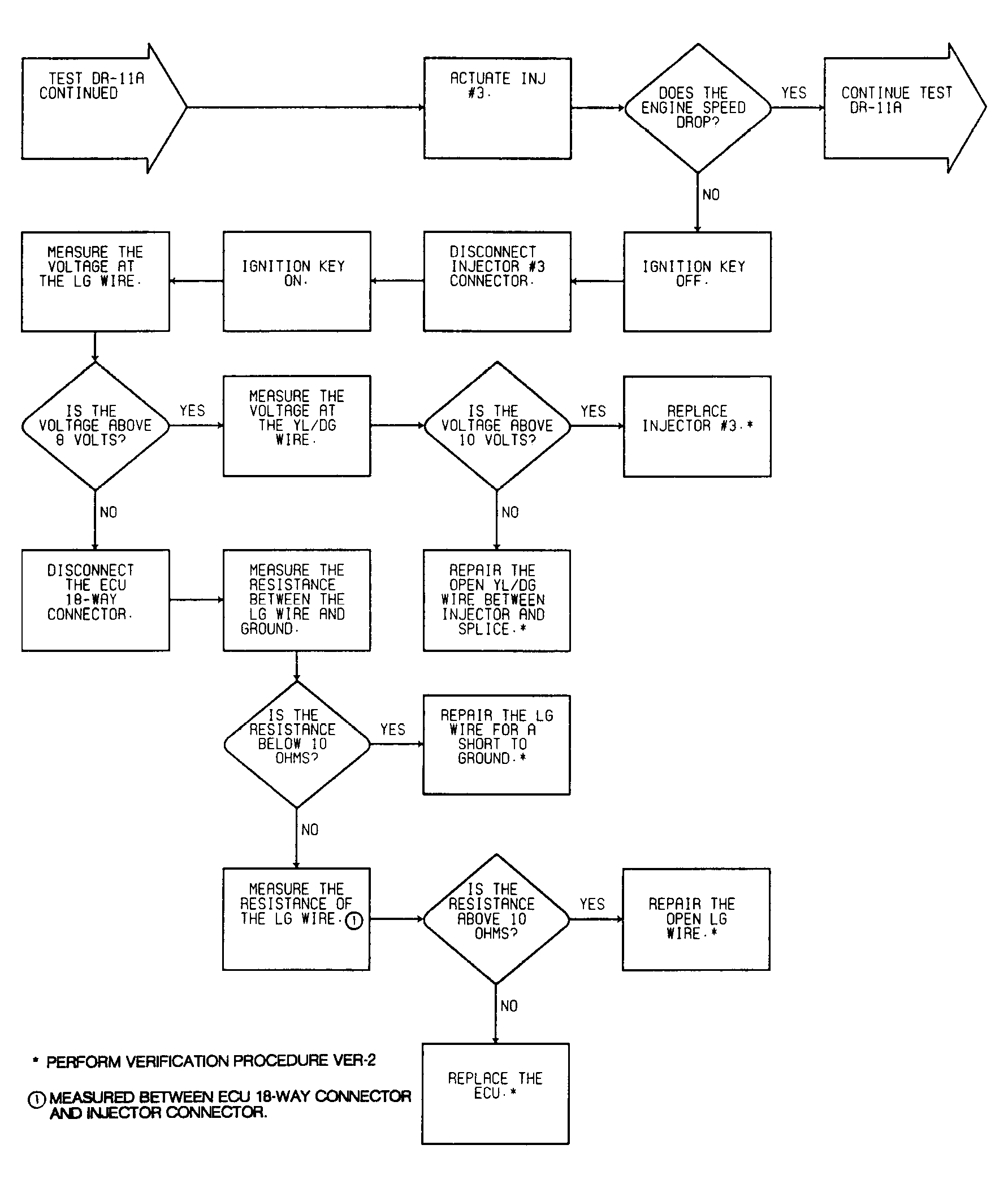

Fig 5: Driveability Test DR-11A: Diagnostic Flow Chart (4 of 5)

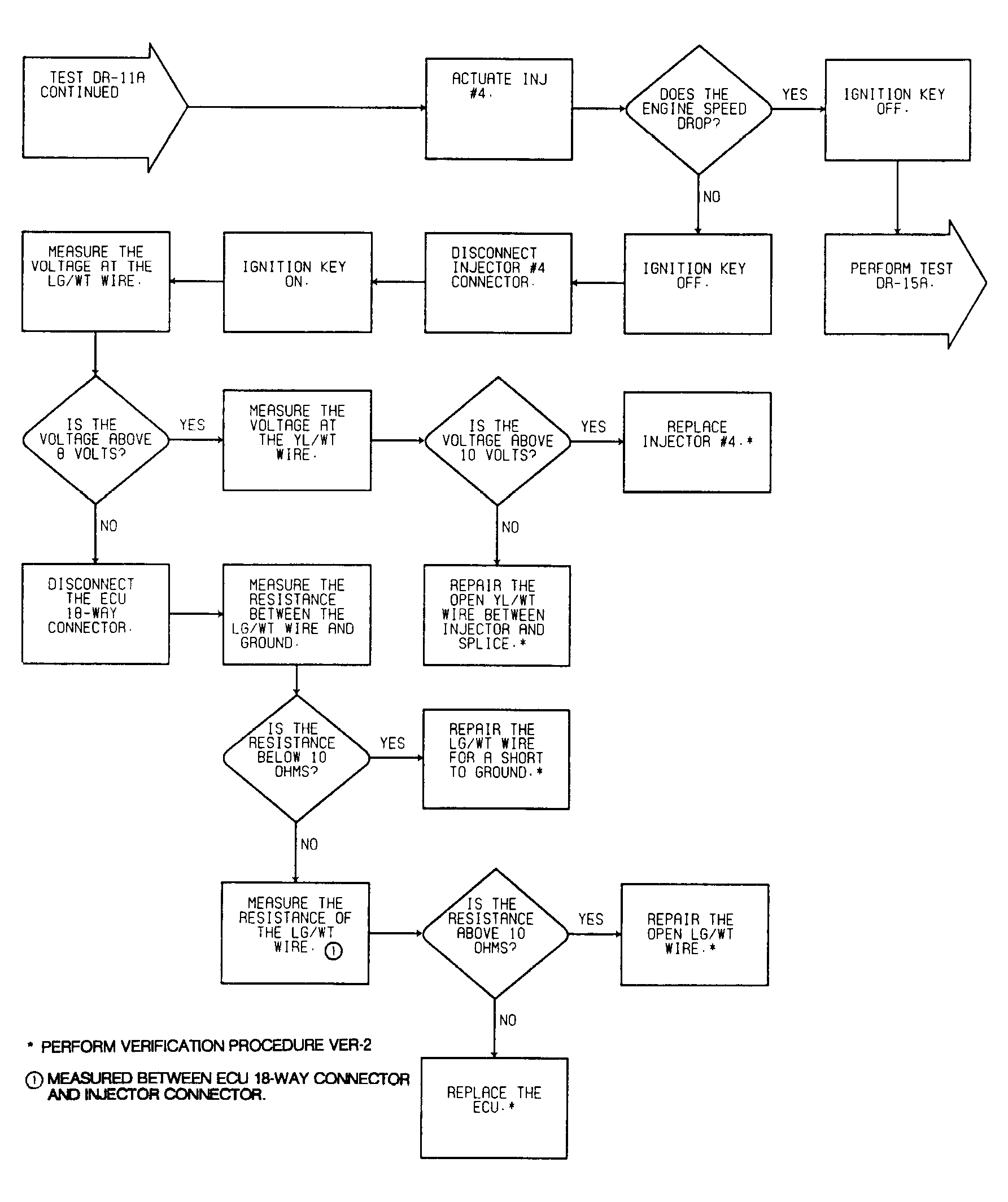

Fig 6: Driveability Test DR-11A: Diagnostic Flow Chart (5 of 5)
