Dr-13A: Testing EGR Temperature Sensor

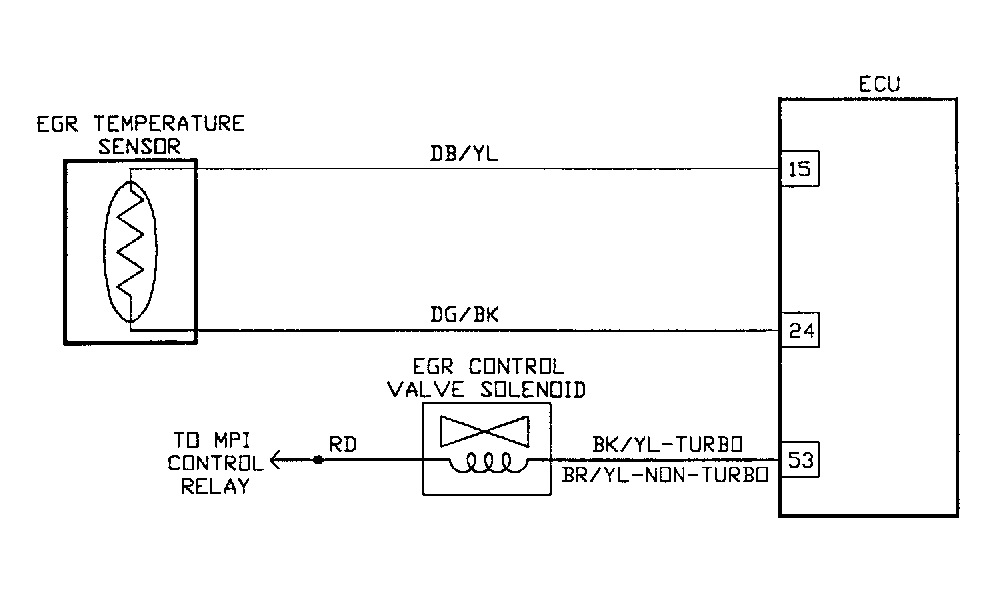

Fig 1: Driveability Test DR-13A: Circuit Diagram

G91H10774

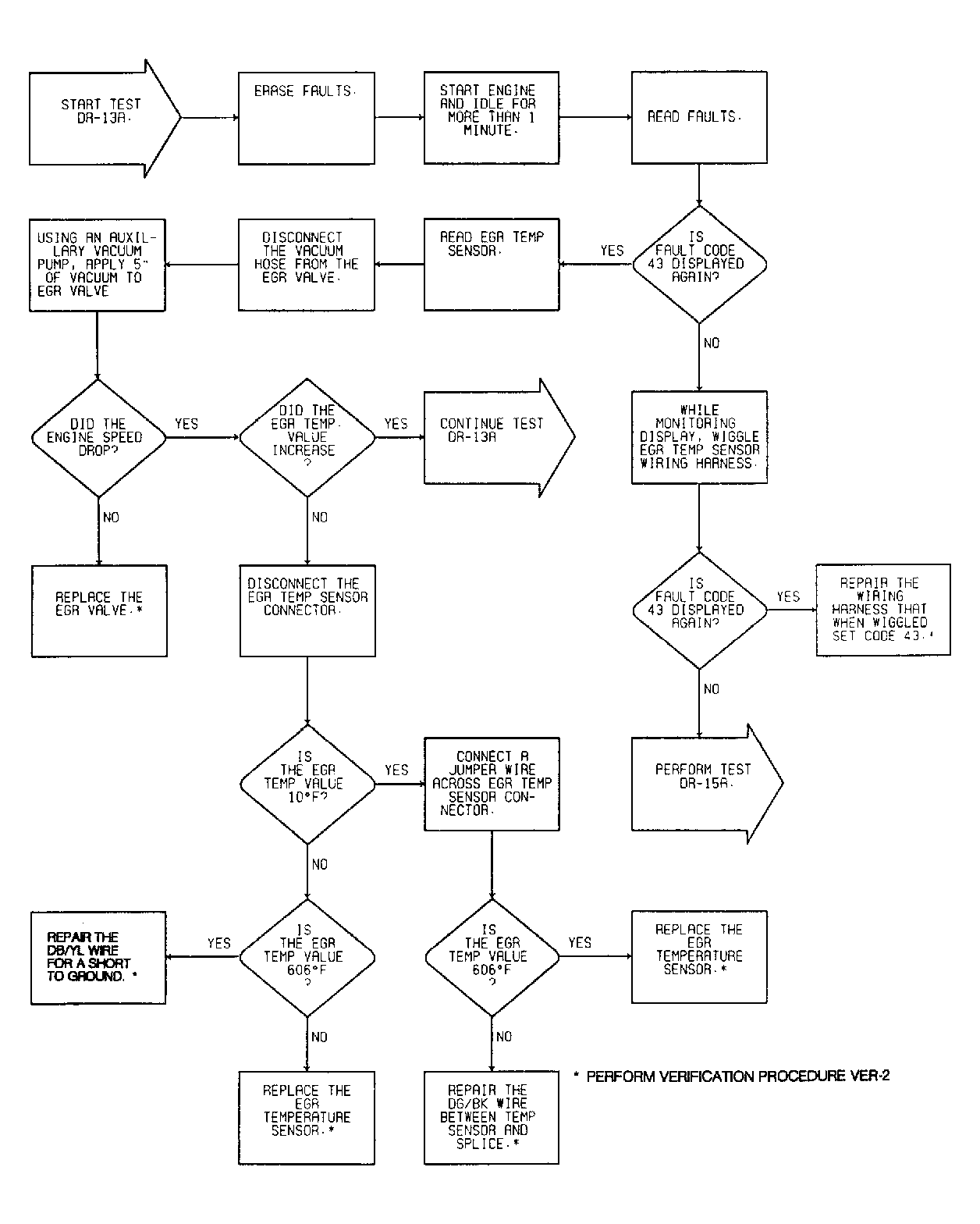

Fig 2: Driveability Test DR-13A: Diagnostic Flow Chart (1 of 2)

G91G11128

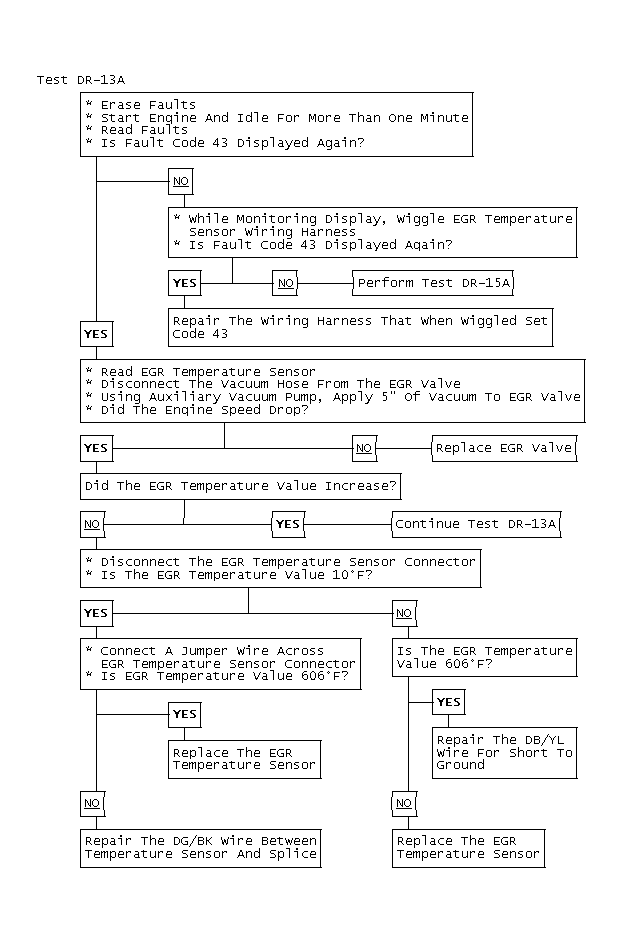

Fig 3: Test DR-13A

GB0044655

Fig 4: Driveability Test DR-13A: Diagnostic Flow Chart (2 of 2)

G91H11129

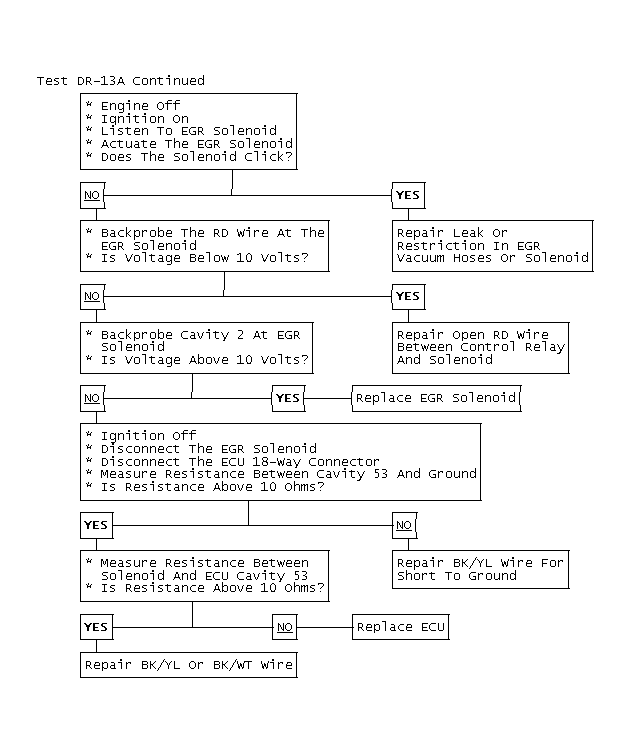

Fig 5: Test DR-13A Continued

GB0044656
