Dr-7: Code 21 Coolant Temperature Sensor Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dr-7: Code 21 Coolant Temperature Sensor Circuit

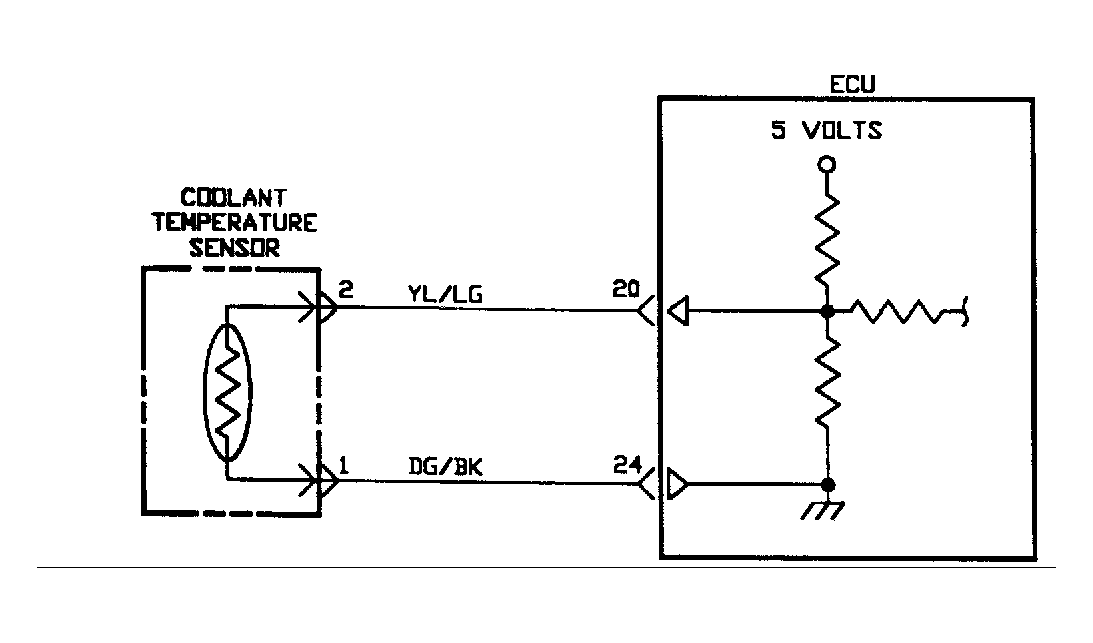

Fig 1: Circuit Diagram DR-7 (1.5L)

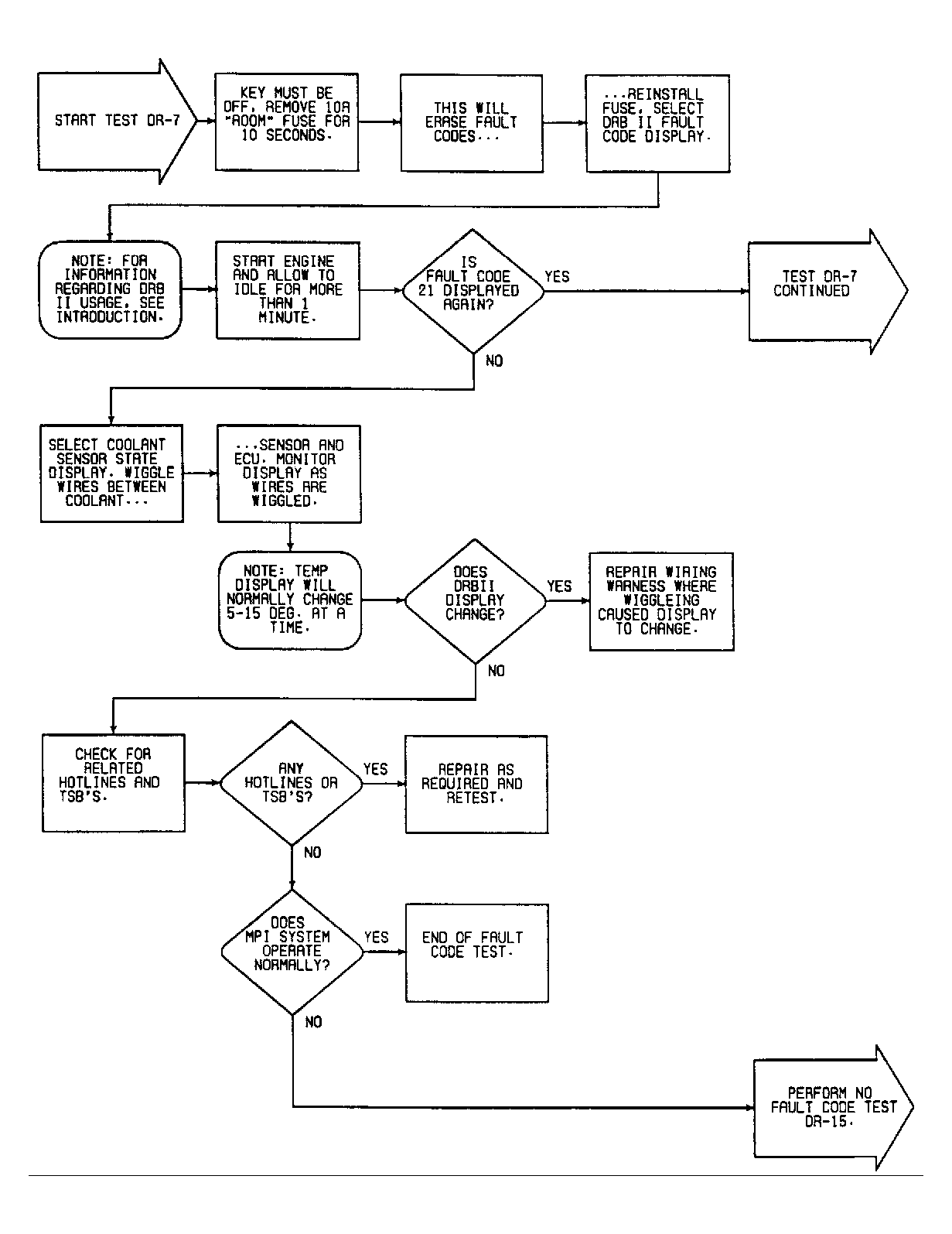

Fig 2: Flow Chart DR-7 (1.5L) (1 of 2)

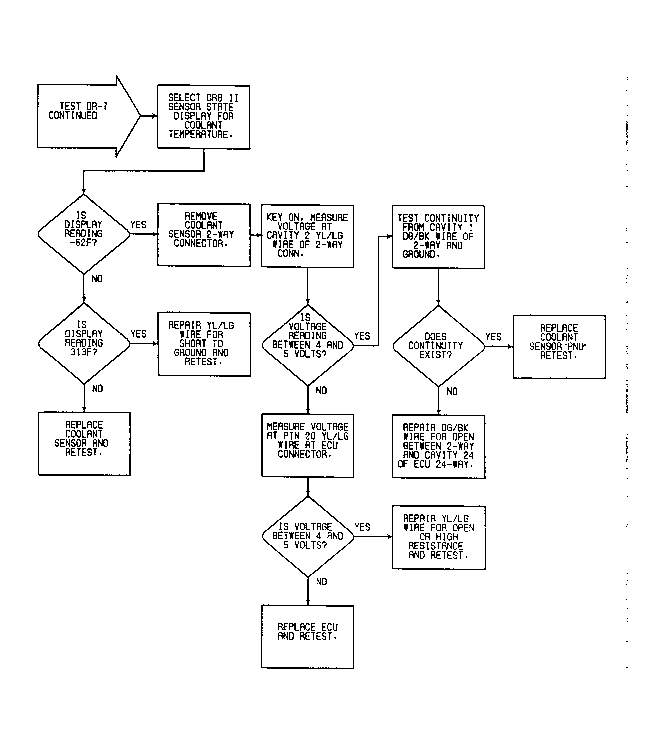

Fig 3: Flow Chart DR-7 (1.5L) (2 of 2)
