Dr-12: Code 41 Injector Circuit

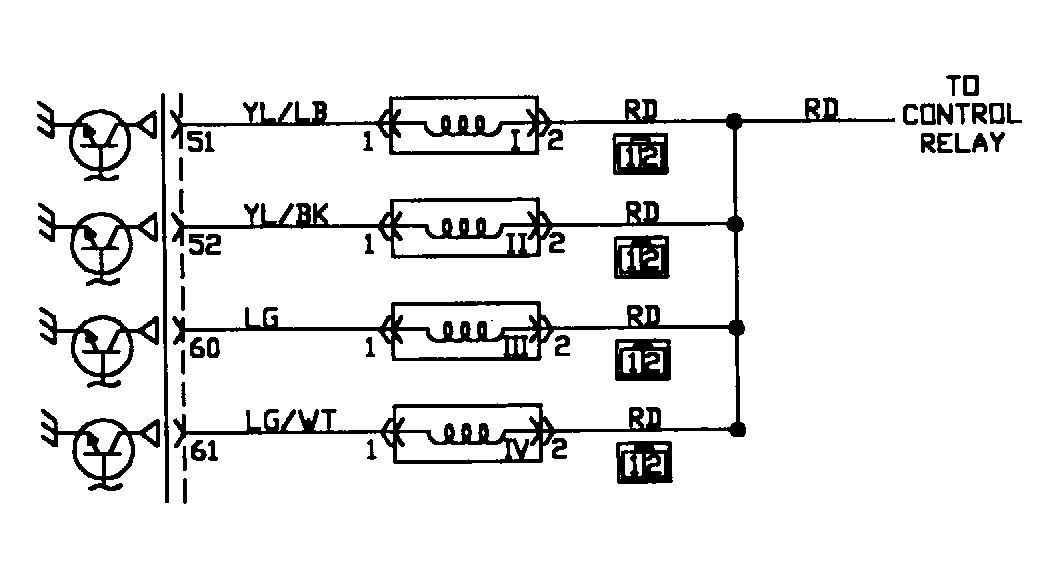

Fig 1: Circuit Diagram DR-12 (1.6L)

G90H15401

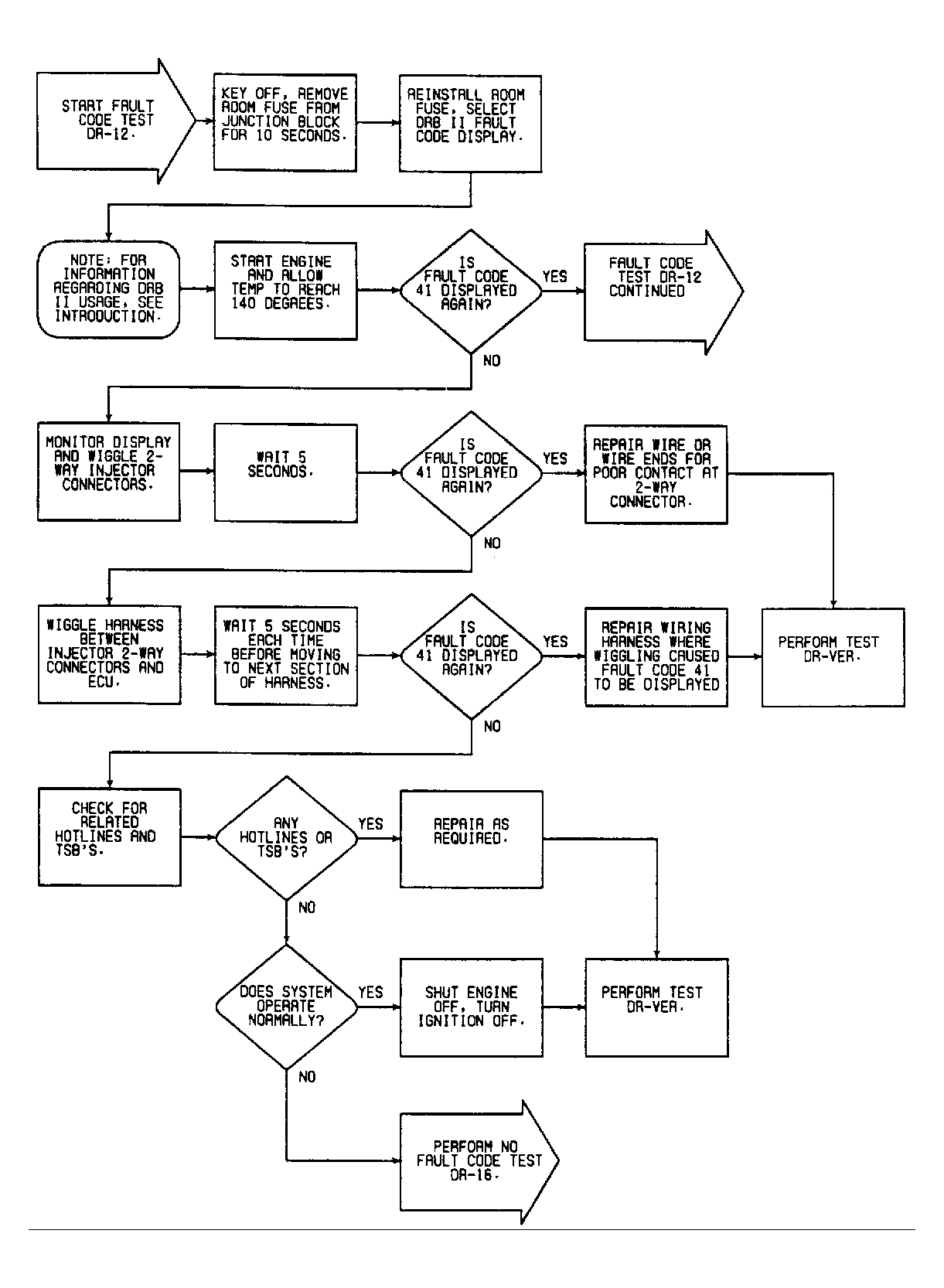

Fig 2: Flow Chart DR-12 (1.6L) (1 of 5)

G90A19950

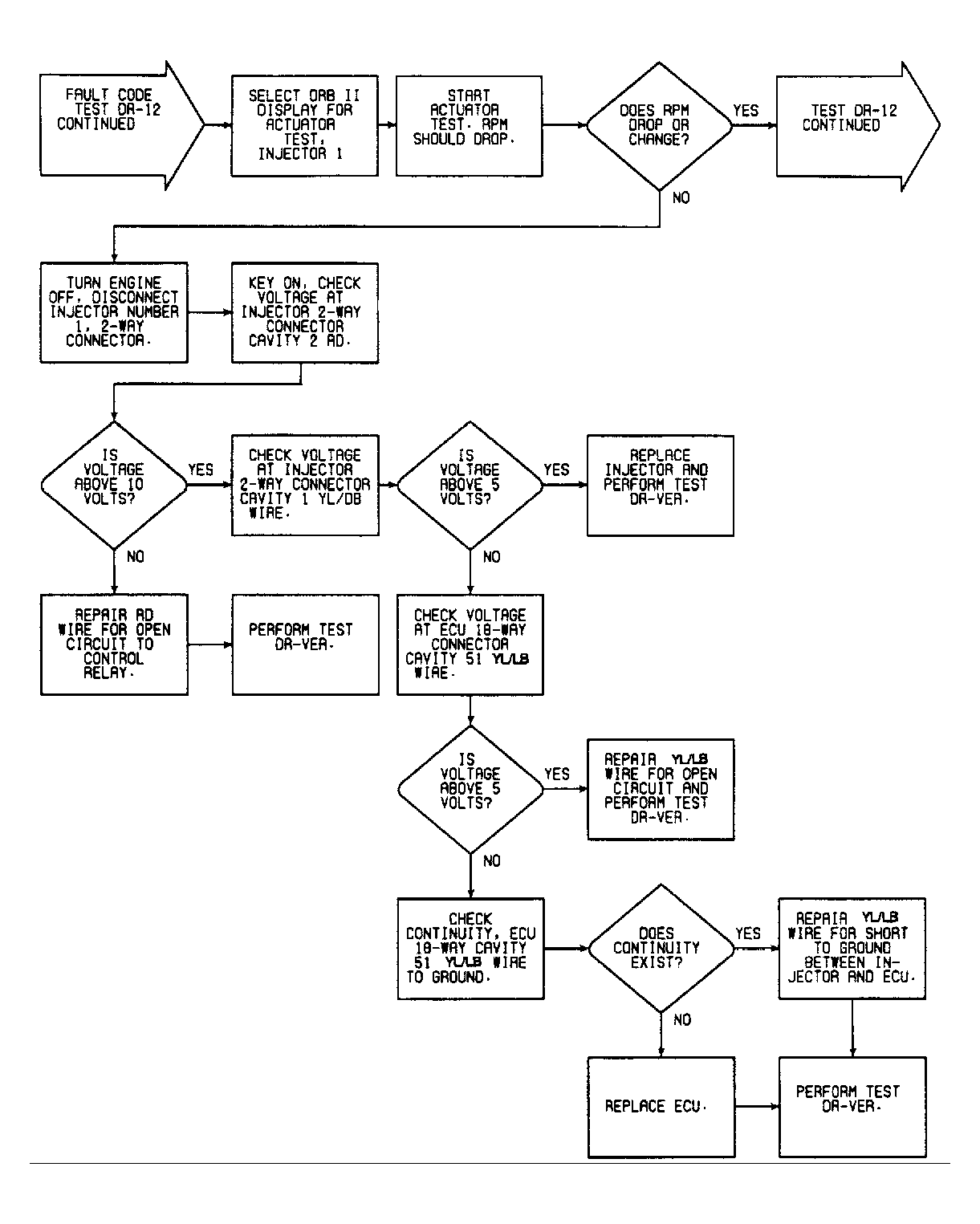

Fig 3: Flow Chart DR-12 (1.6L) (2 of 5)

G90B19951

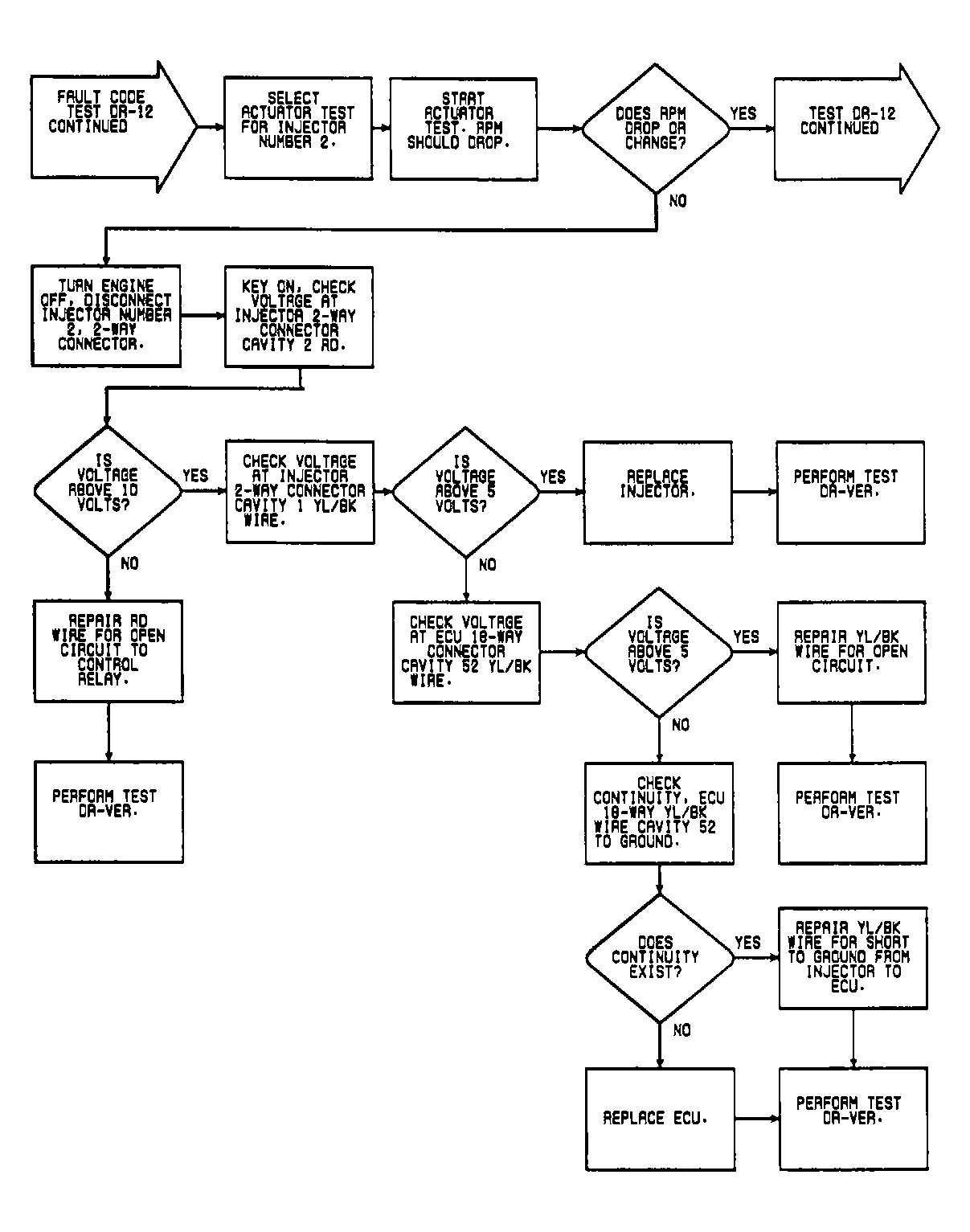

Fig 4: Flow Chart DR-12 (1.6L) (3 of 5)

G90C19952

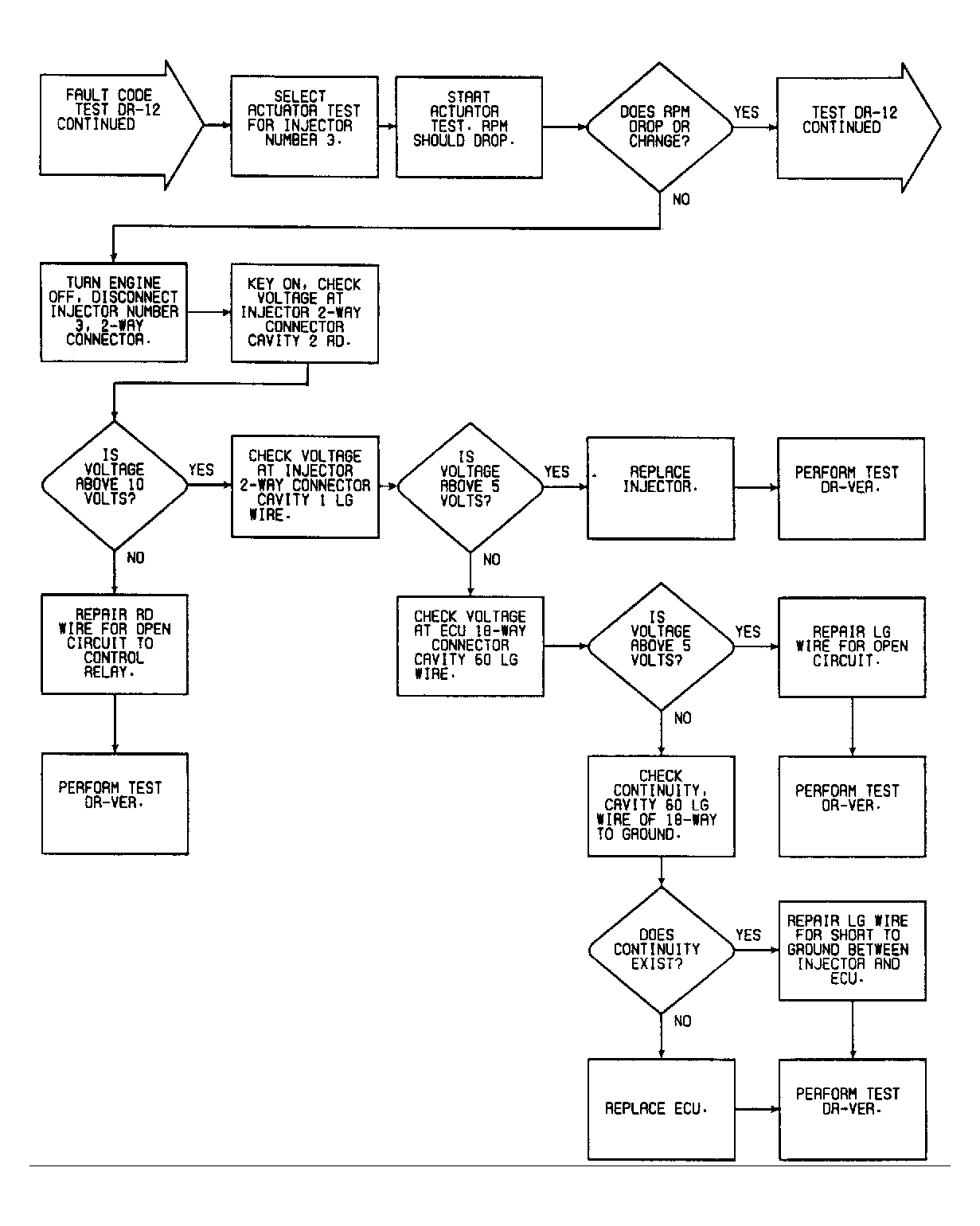

Fig 5: Flow Chart DR-12 (1.6L) (4 of 5)

G90D19953

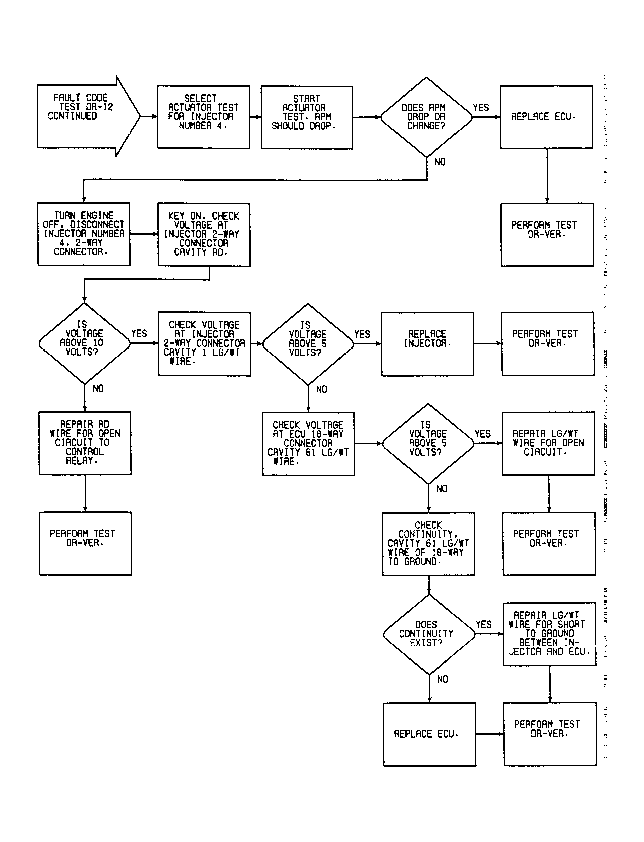

Fig 6: Flow Chart DR-12 (1.6L) (5 of 5)

G90E19954
