4WD Indicator Control Unit

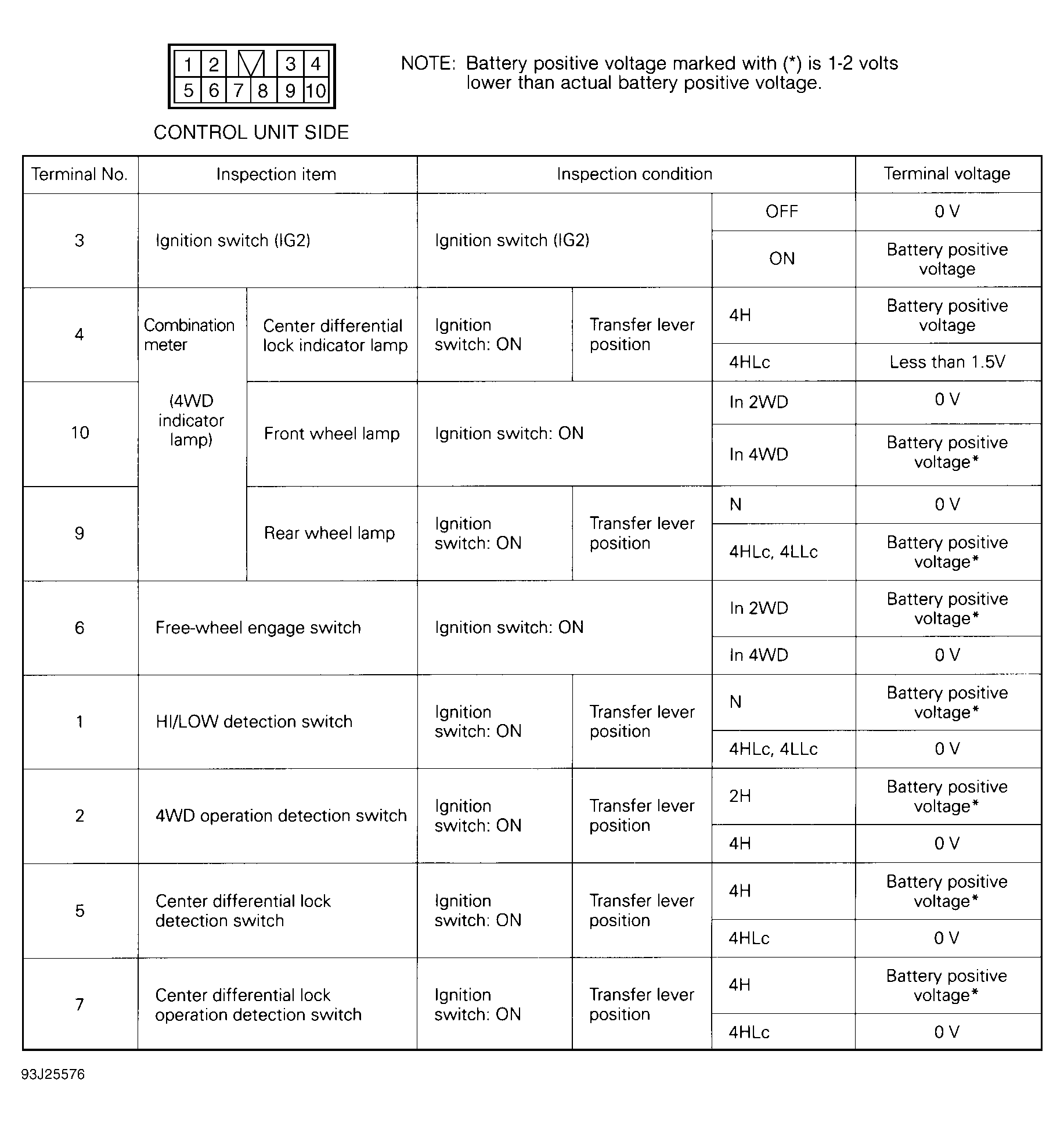

The 4WD indicator control unit is located behind radio or CD player. Remove 4WD indicator control unit and disconnect harness. Backprobe harness connector and measure voltage between terminal No. 8 (ground) and each respective terminal. Compare test results with chart. See Figure.
