Vehicle Speed Sensor

  1. Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Check continuity between vehicle speed sensor terminals at instrument cluster. SeeFig 1 or Fig 2 .
  2. Ensure continuity pulses on and off 4 times per revolution of speedometer shaft connection. If continuity is not as specified, replace vehicle speed sensor.

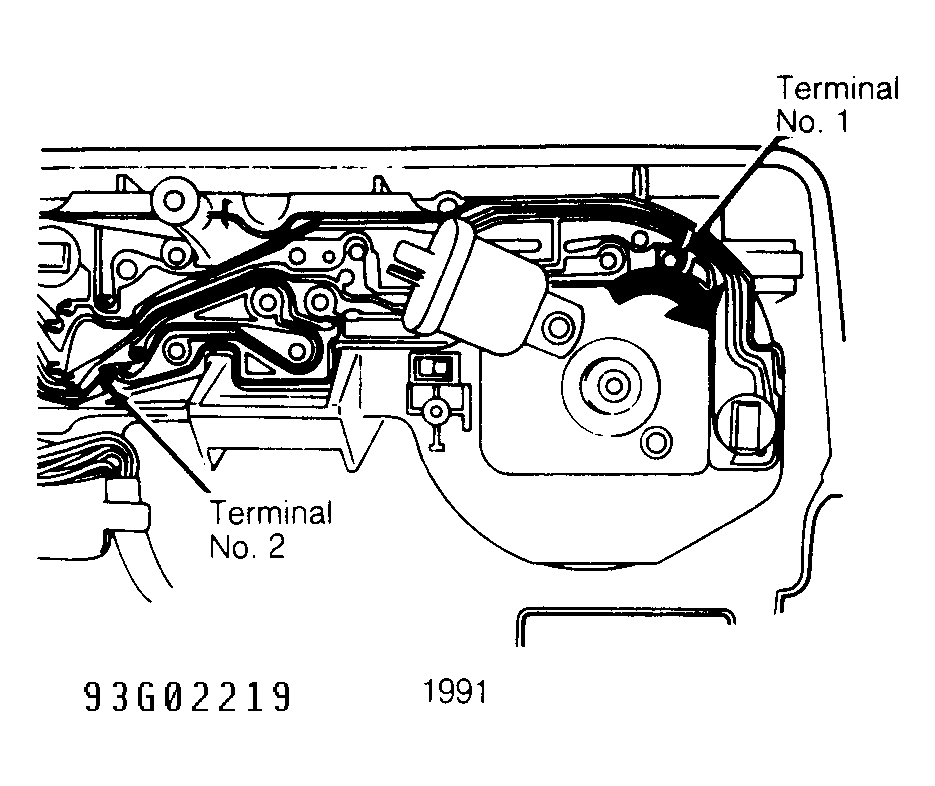

Fig 1: 1991 Checking Speed Sensor Circuit
G93G02219Courtesy of MITSUBISHI MOTOR CO.
Fig 2: 1992 Checking Speed Sensor Circuit
G93I02220Courtesy of MITSUBISHI MOTOR CO.
