System Input Testing: 1992

  1. System input tests should be performed if no trouble codes are stored when performing SELF-DIAGNOSTICS  . System input tests cycle each cruise control switch and sensor.
  2. Use Multi-Use Tester (MB991341) for system input check. Use multi-use tester according to operating instructions provided with tester. Connect leads of analog voltmeter between cruise control terminal and ground terminal of self-diagnostic connector. SeeFigure . Turn ignition switch to ON position. Follow INPUT CODE CHART sequence. SeeFig 1 or Fig 2 .
  3. To display results of input check, move SET switch to ON position. Then turn MAIN switch to ON position. Within one second, activate RESUME switch. Codes will display if circuit tested is okay.

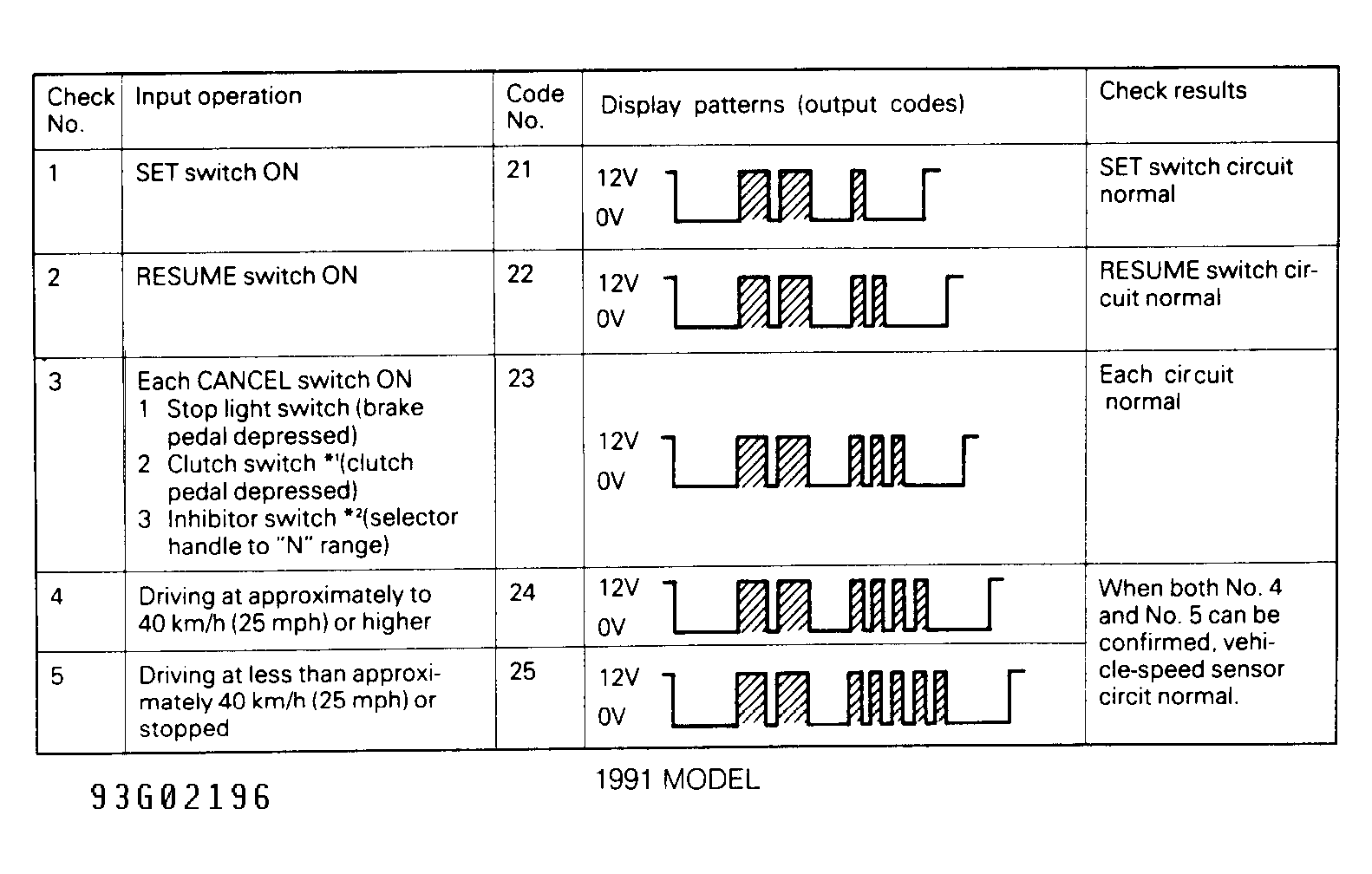

Fig 1: 1991 Input Code Chart
G93G02196Courtesy of MITSUBISHI MOTOR CO.

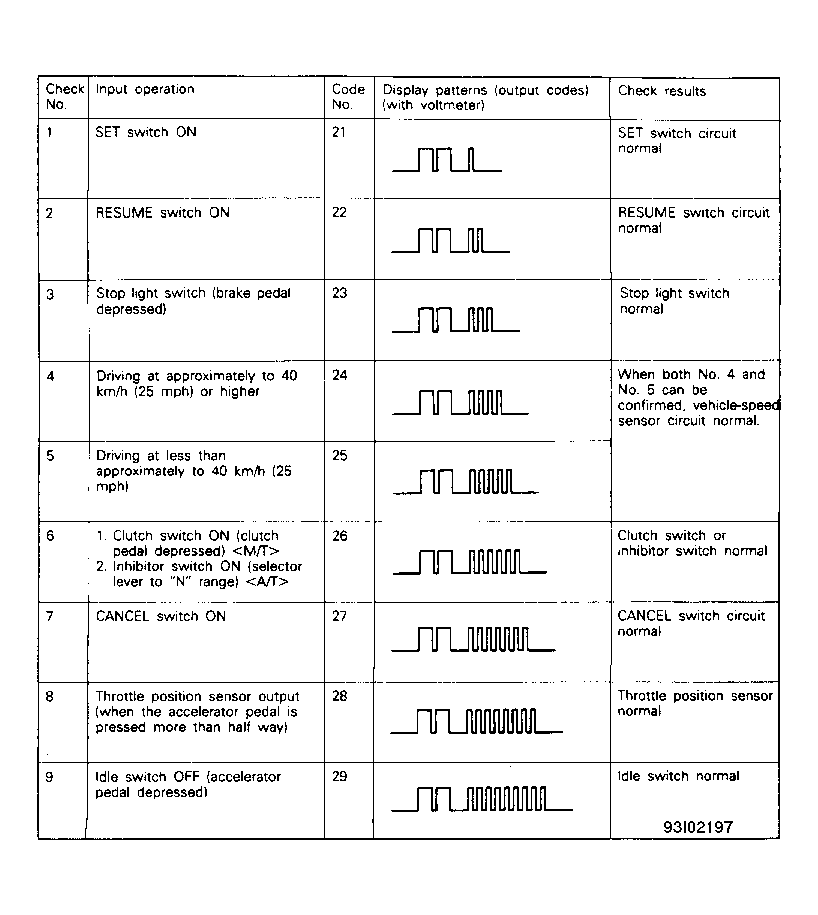

Fig 2: 1992 Input Code Chart
G93I02197Courtesy of MITSUBISHI MOTOR CO.
