Power Window Relay & Control Relay

NOTE: Fuse panel is located under instrument panel on driver's side.

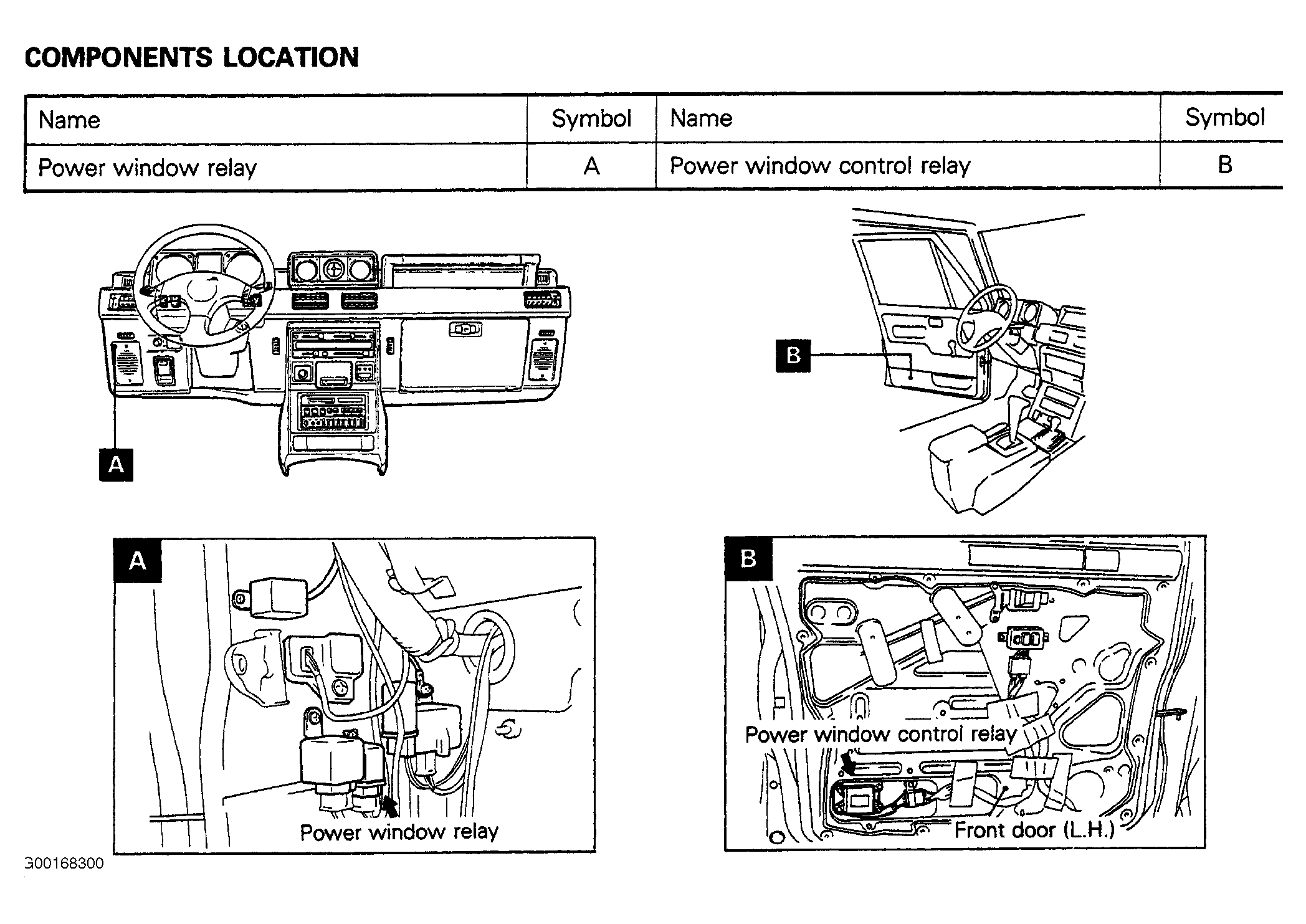

Fig 1: Locating Power Window Components
G00168300Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
