Harness Inspection

For harness inspection, see Figure . For component locations and connector terminal identification, see Figure .

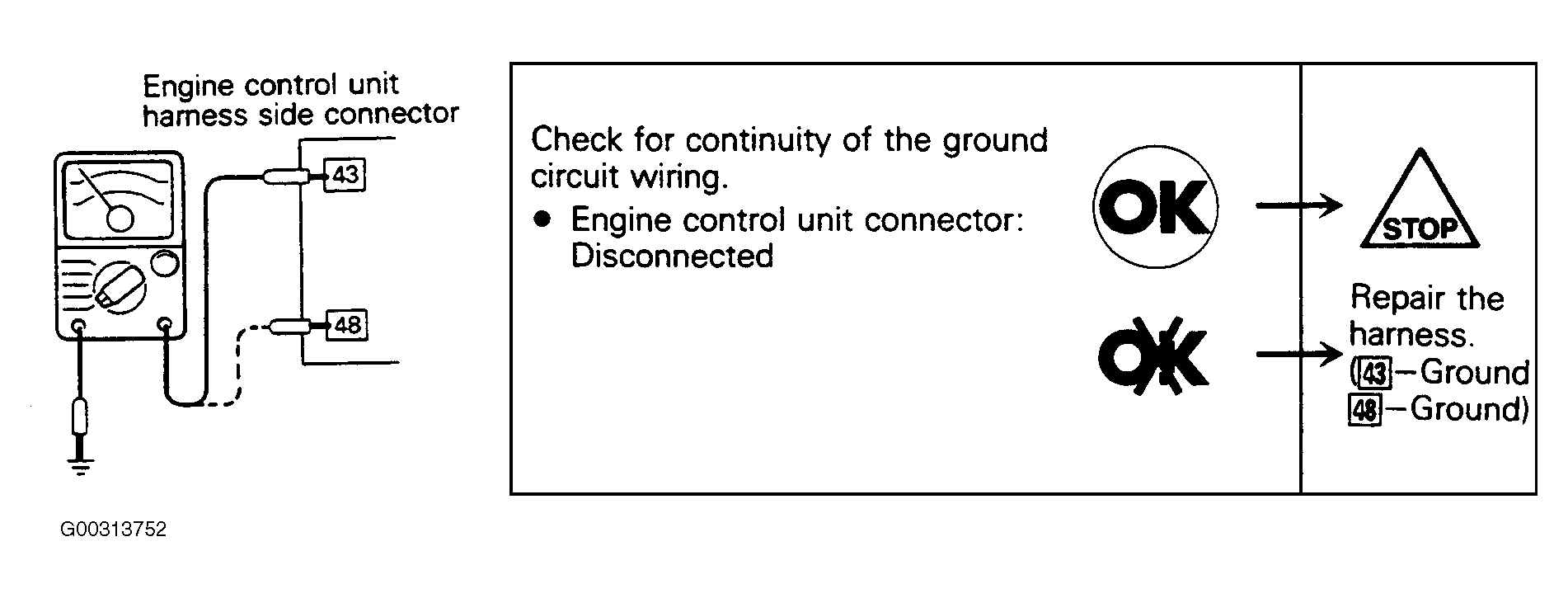

Fig 1: Engine Control Unit Power Ground Harness Inspection
G00313752Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
