Inspection Using Oscilloscope
- Run the engine at idle speed.

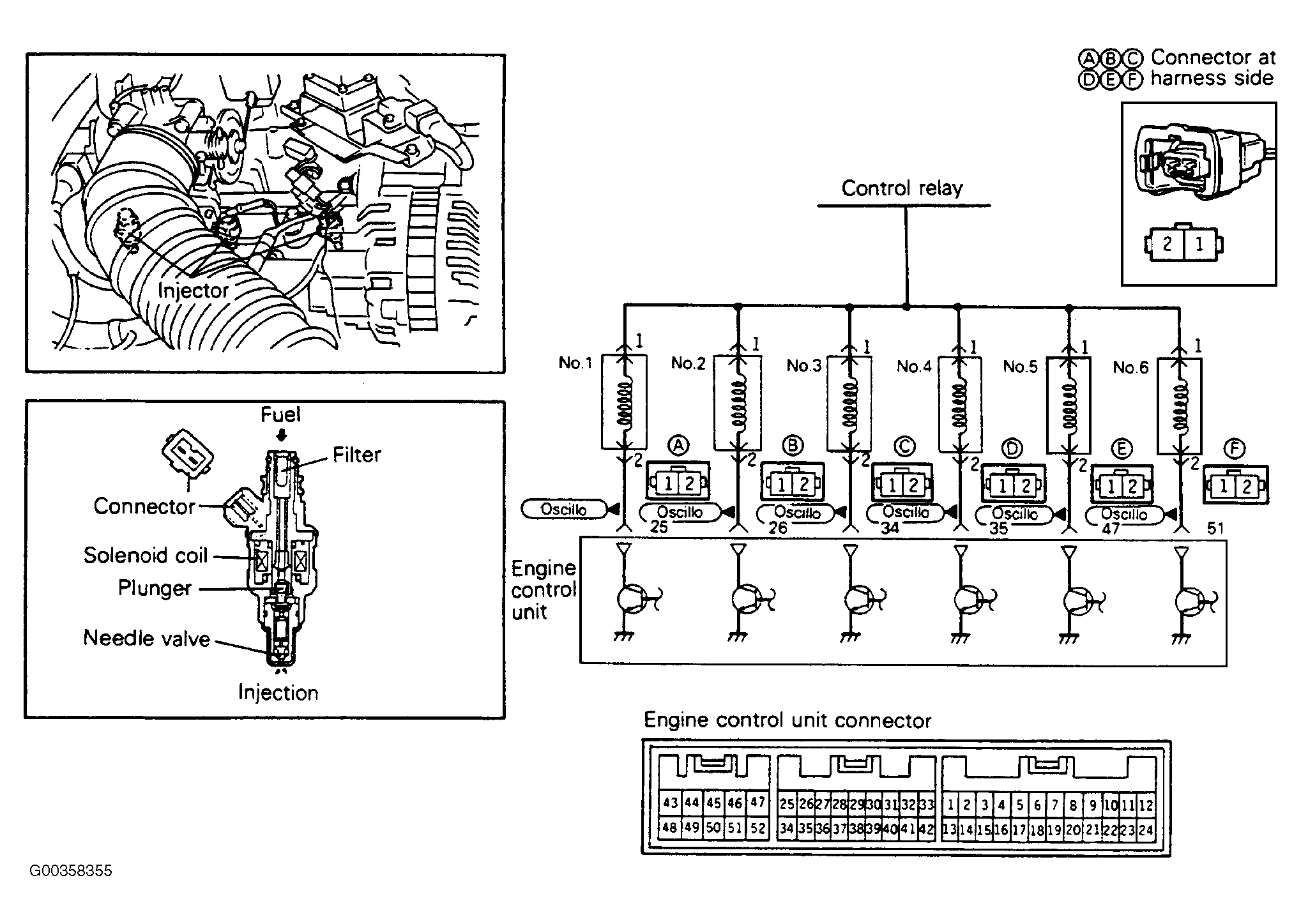

- Connect the probe to the oscilloscope pick-up point as shown in the circuit diagram. See Figure
. Check waveform at the drive side of each injector. For normal waveform, see Fig 1
.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
