Data Display 26: Idle Position Switch

Fig 1: Idle Position Switch (2 Of 2)
G00065180Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

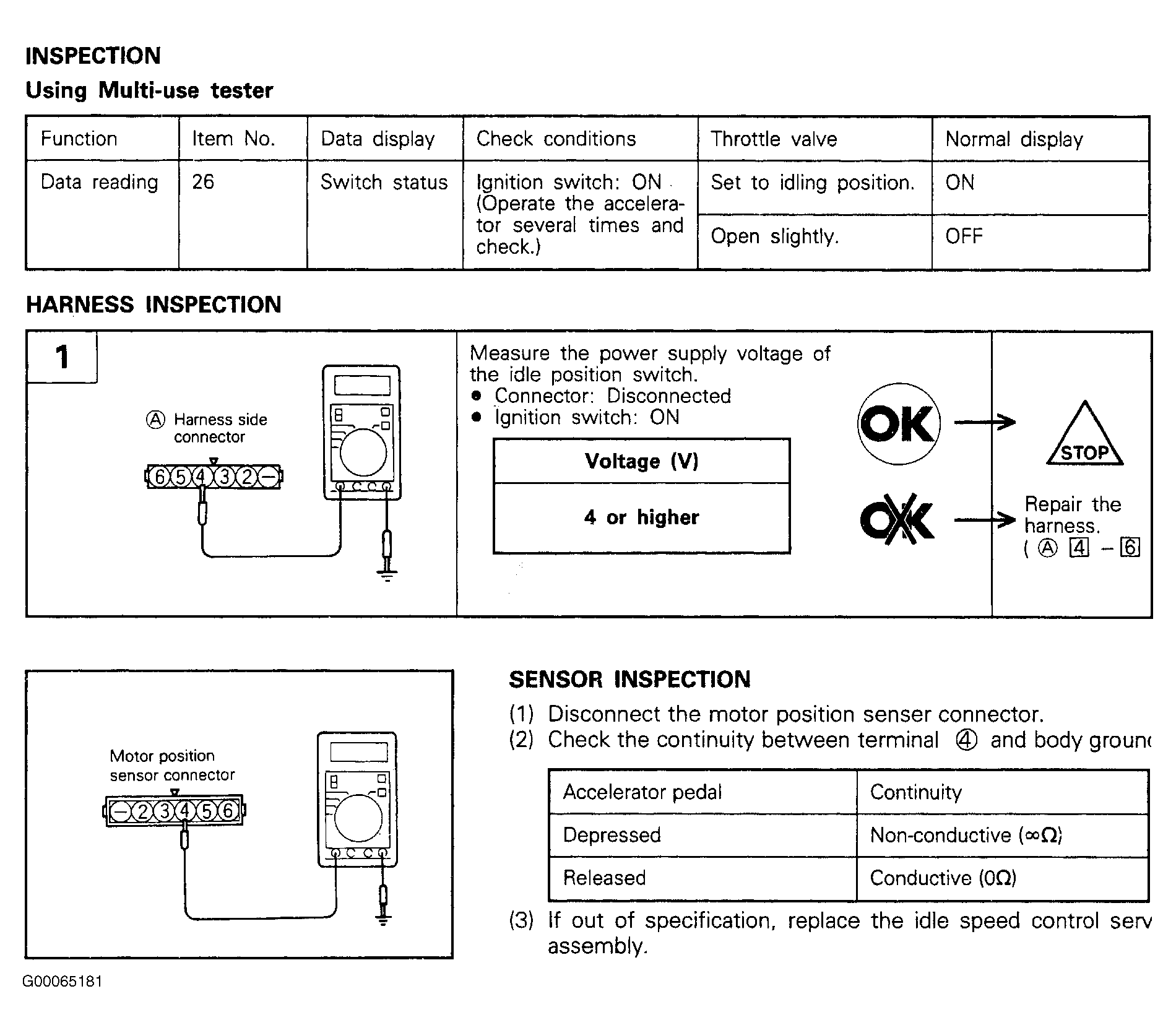

Fig 2: Idle Position Switch - Step 1 (2 Of 2)
G00065181Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
