Data Display 29: Inhibitor Switch (A/T Only)
NOTE:

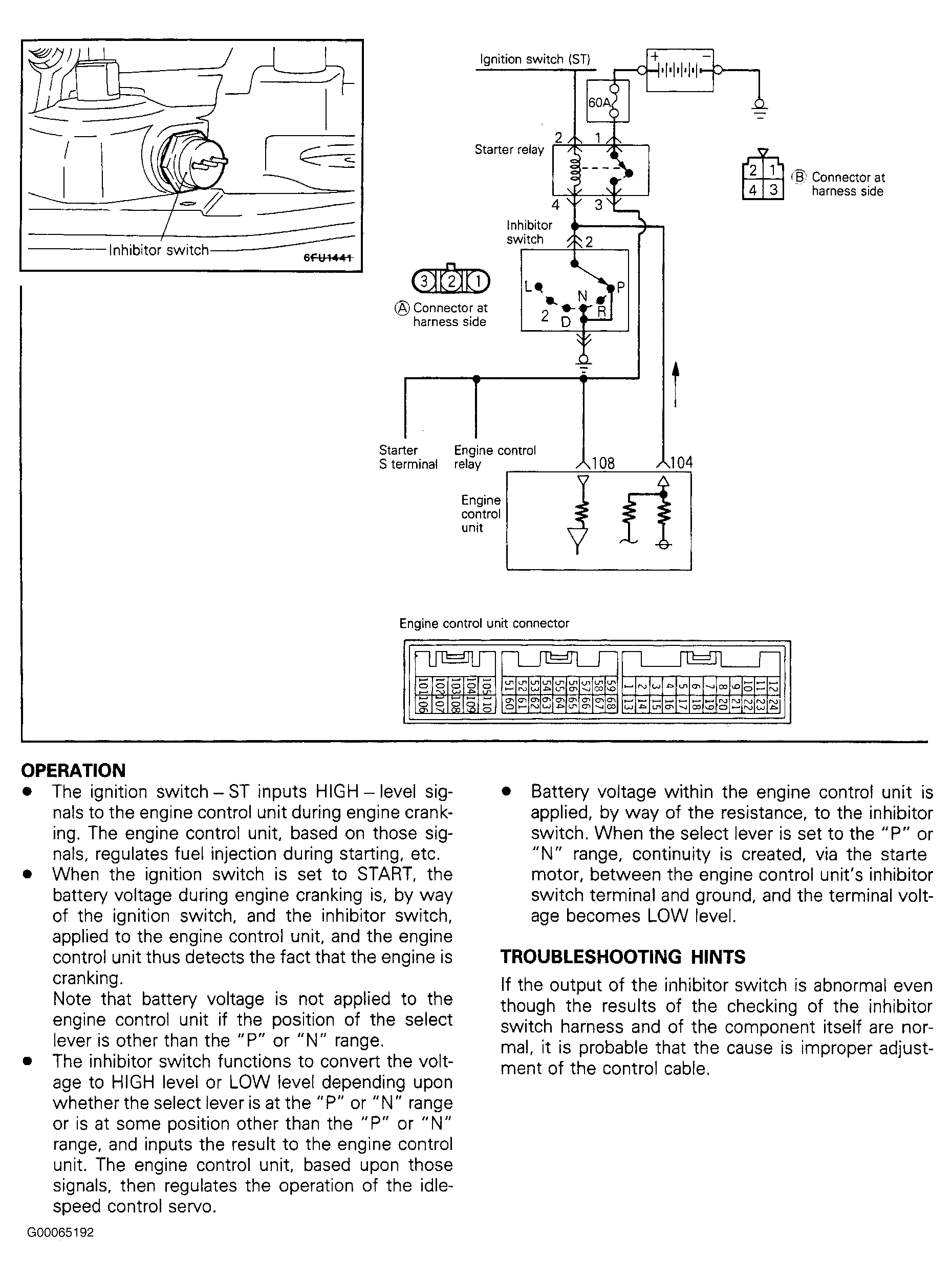

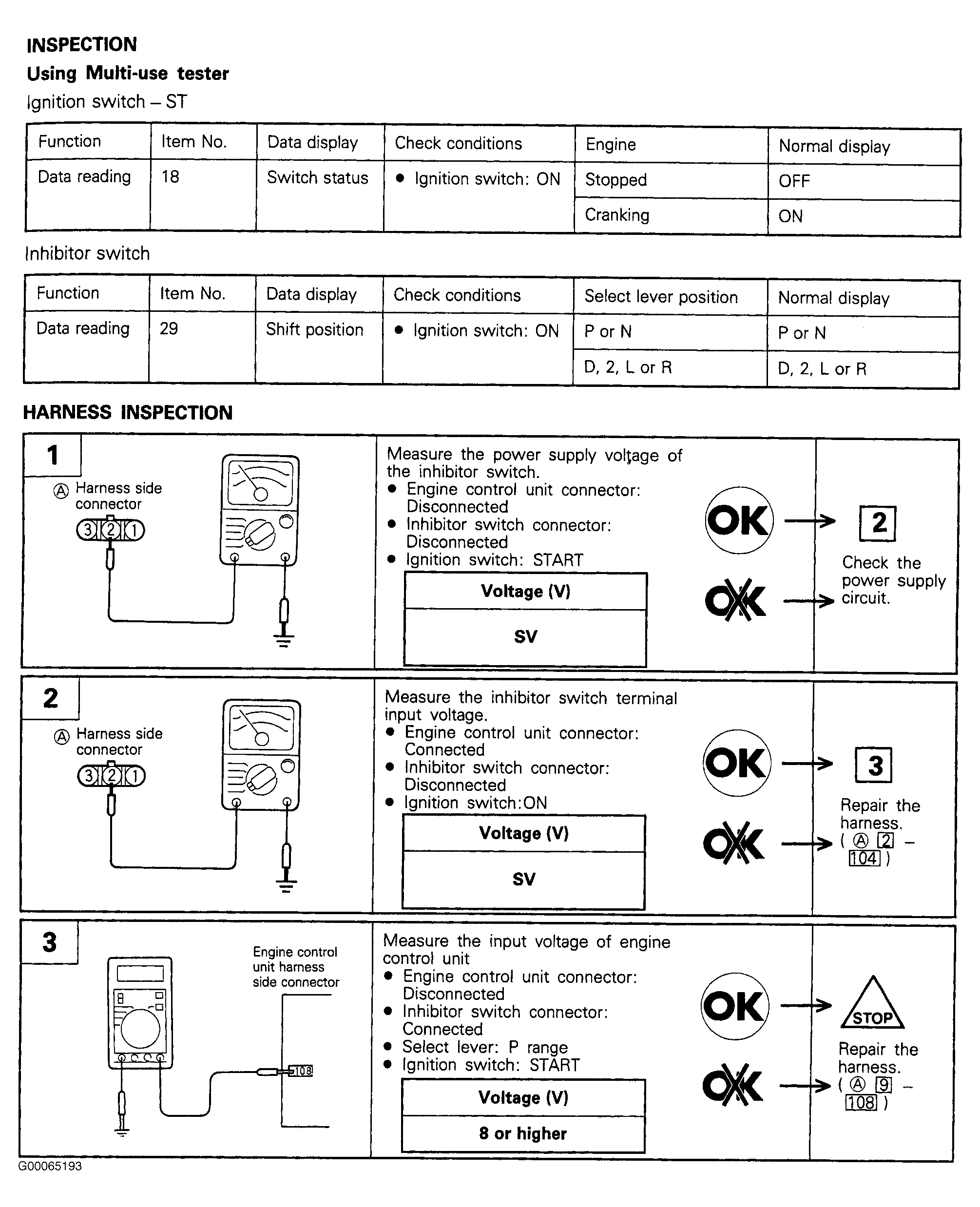

Diagnostic procedure is the same for 2.4L and 3.0L. See
Figure
and
Figure
.
