Data Display 44: Ignition Coil & Power Transistor

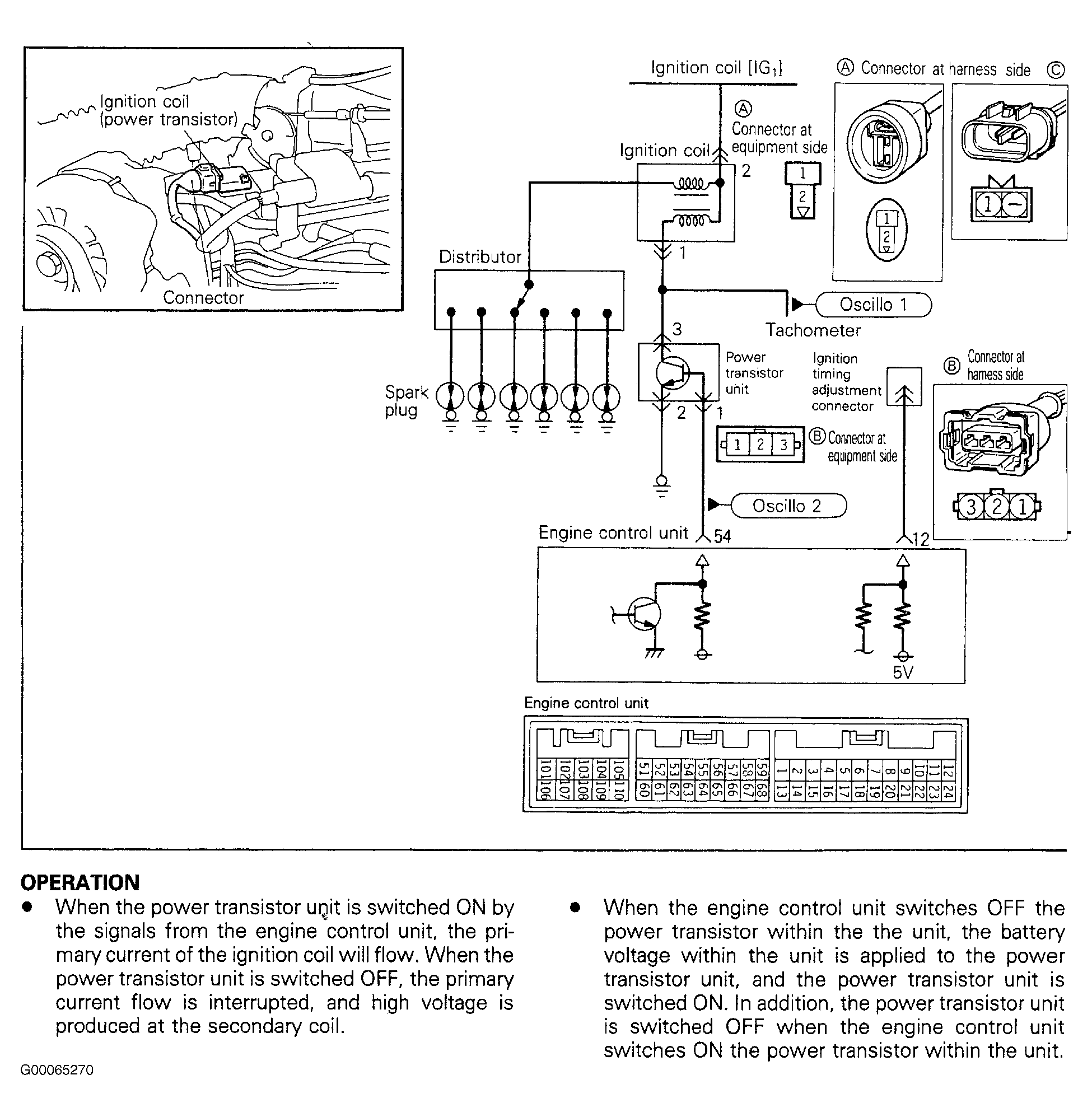

Fig 1: Ignition Coil & Power Transistor (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

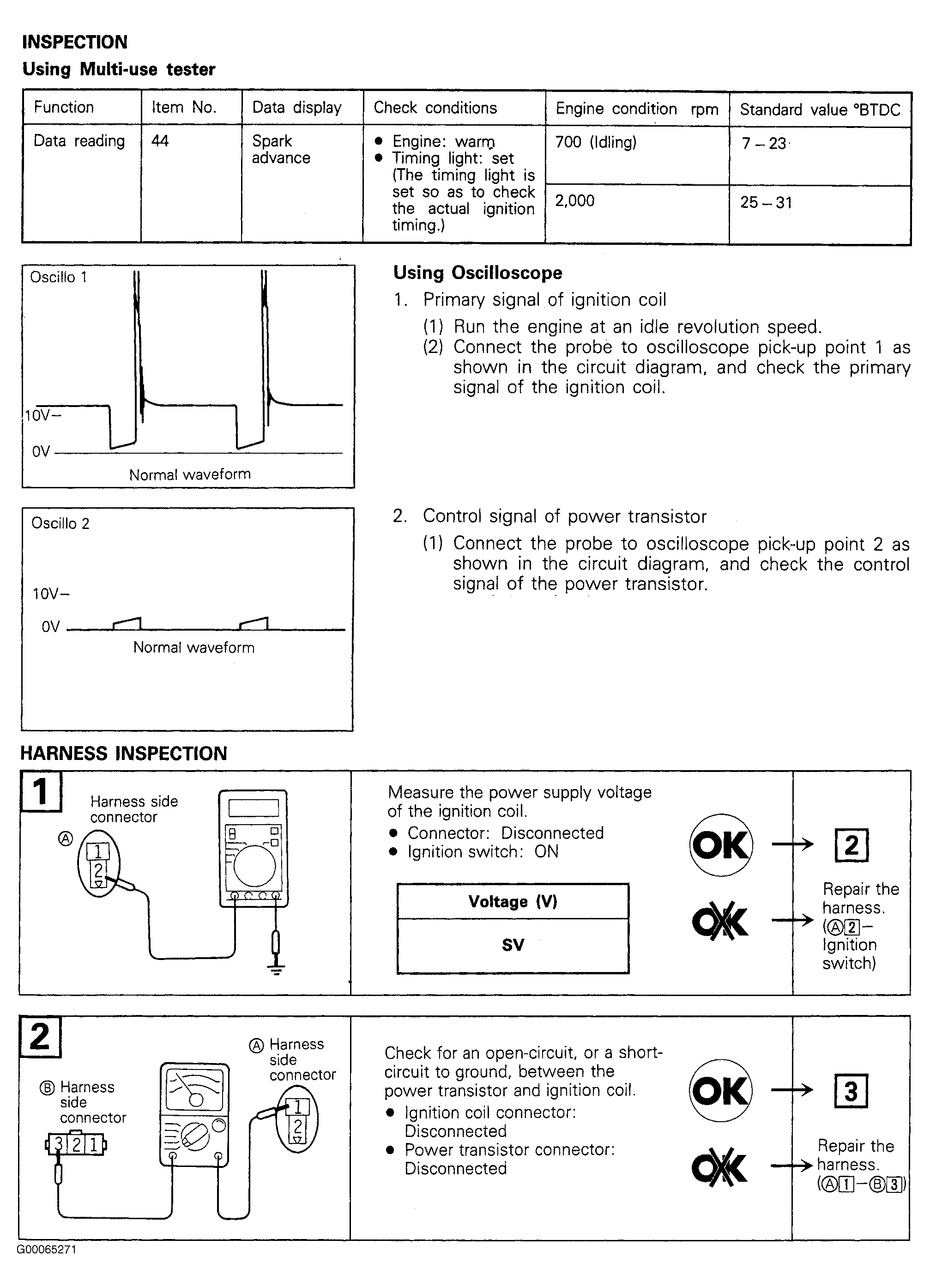

Fig 2: Ignition Coil & Power Transistor - Steps 1 & 2 (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

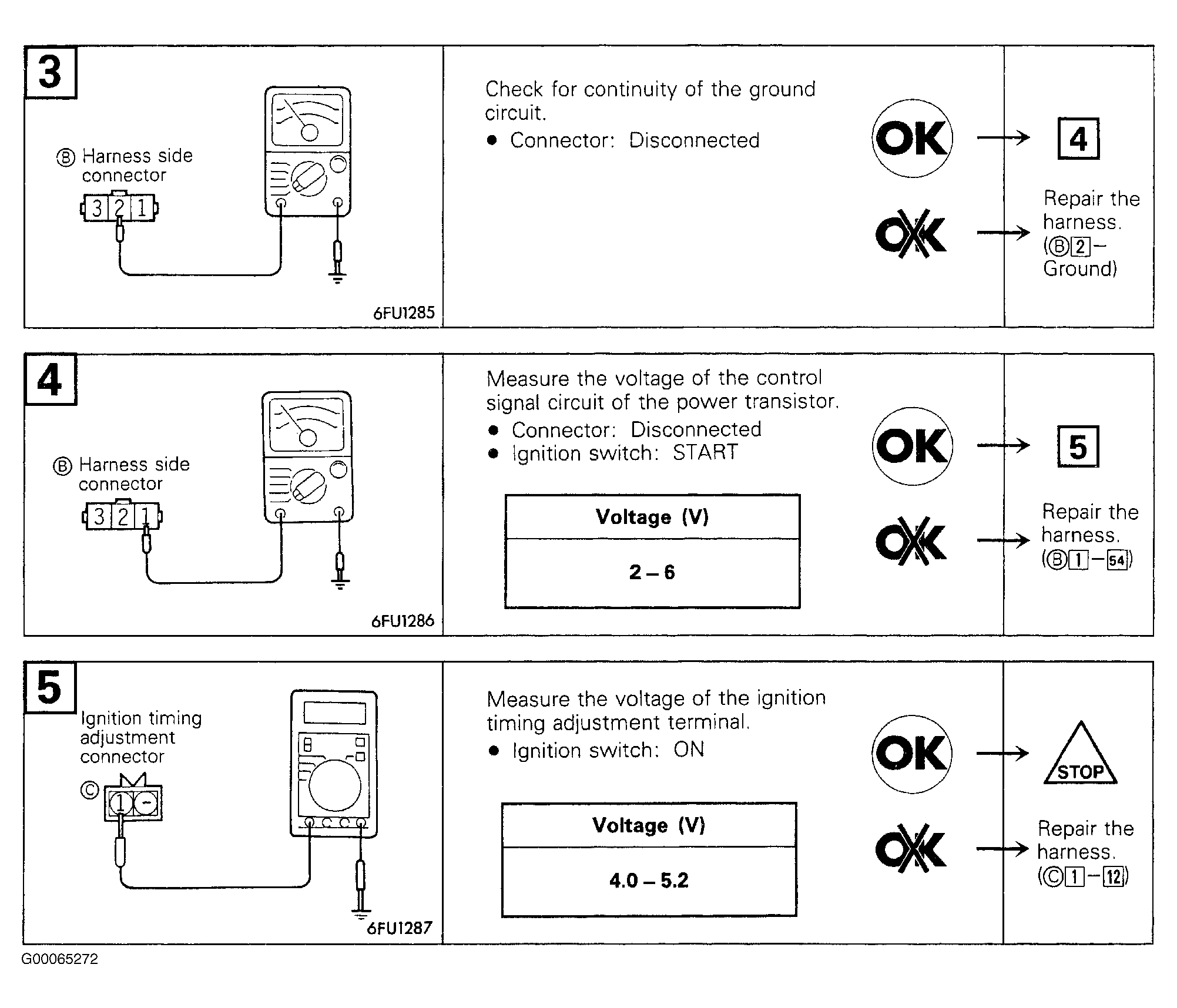

Fig 3: Ignition Coil & Power Transistor - Steps 3-5 (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
