Engine Controls - Self-Diagnostics
>>
Checking Input & Output Signals At ECM Using Scan Tool (3.0L)
>>
Data Display 45: Idle Speed Control Servo (Stepper Motor)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Data Display 45: Idle Speed Control Servo (Stepper Motor)

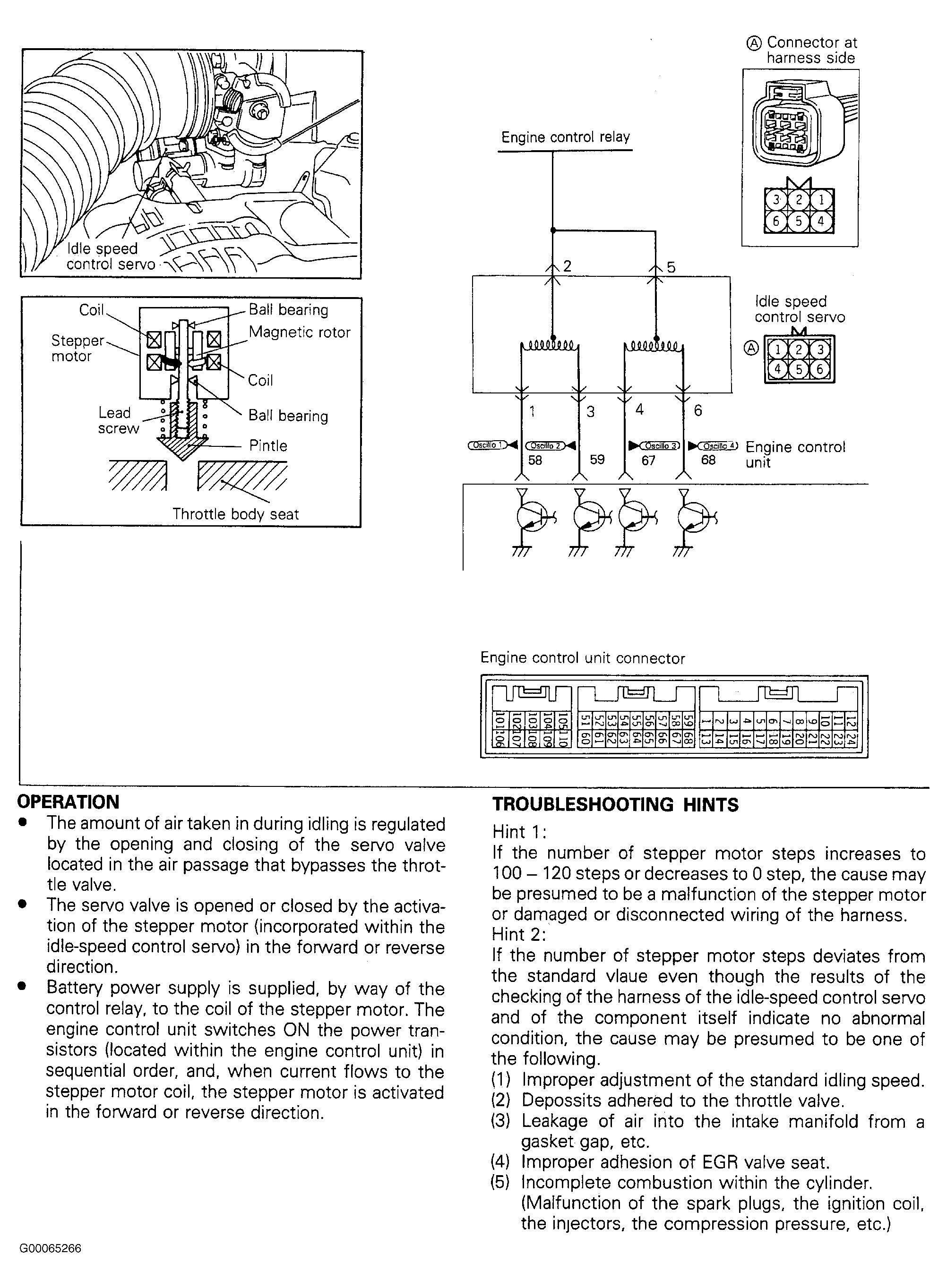

Fig 1: Idle Speed Control Servo (Stepper Motor) (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

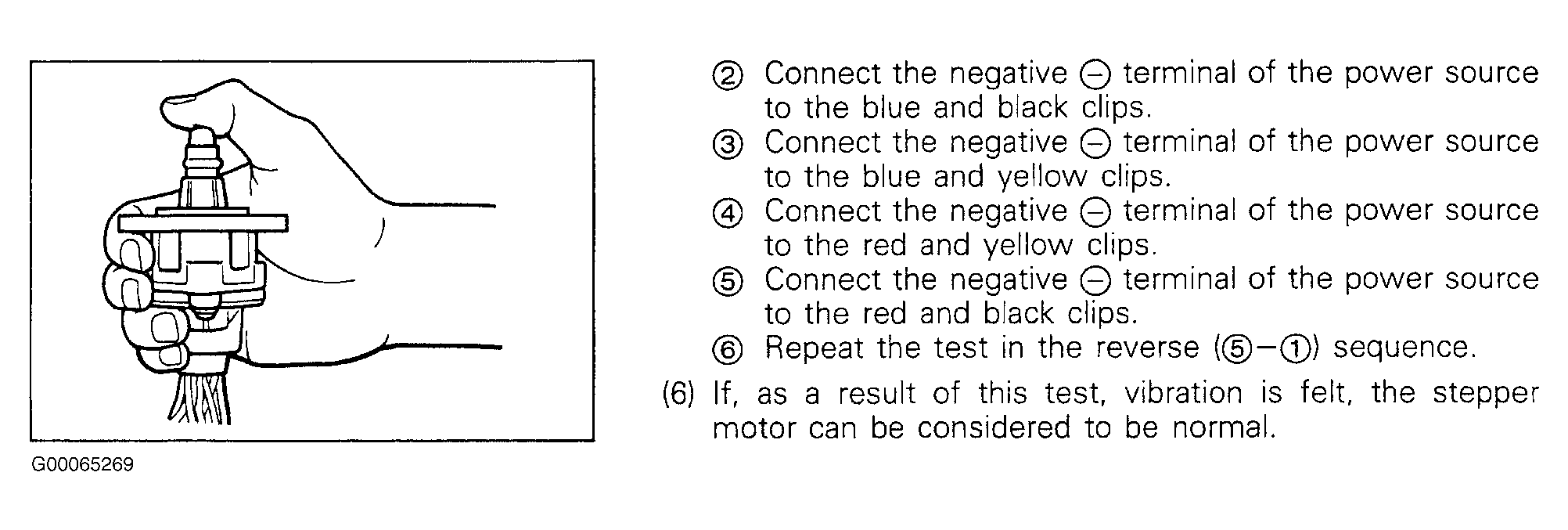

Fig 2: Idle Speed Control Servo (Stepper Motor) - Steps 1 & 2 (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

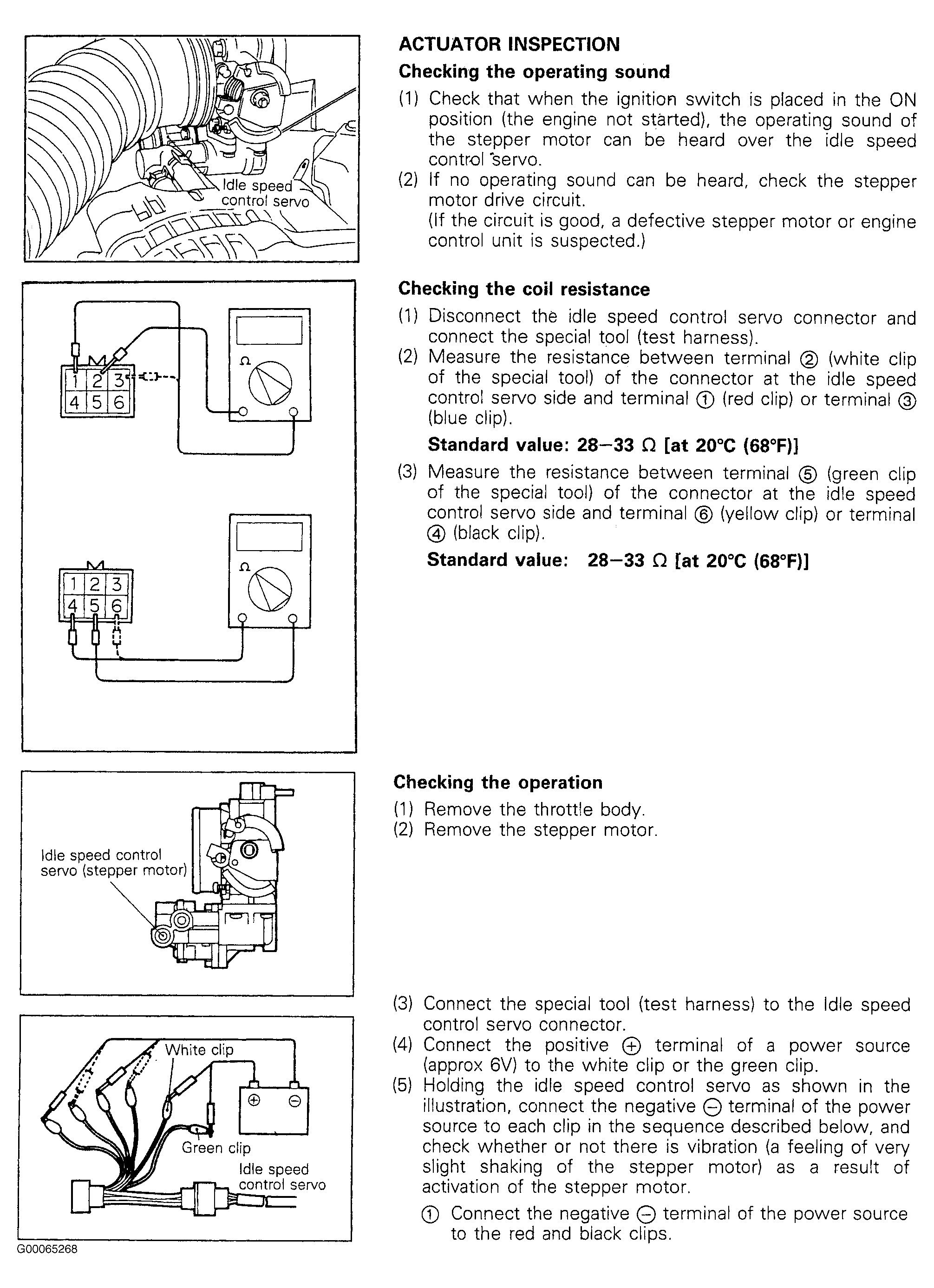

Fig 3: Idle Speed Control Servo (Stepper Motor) (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

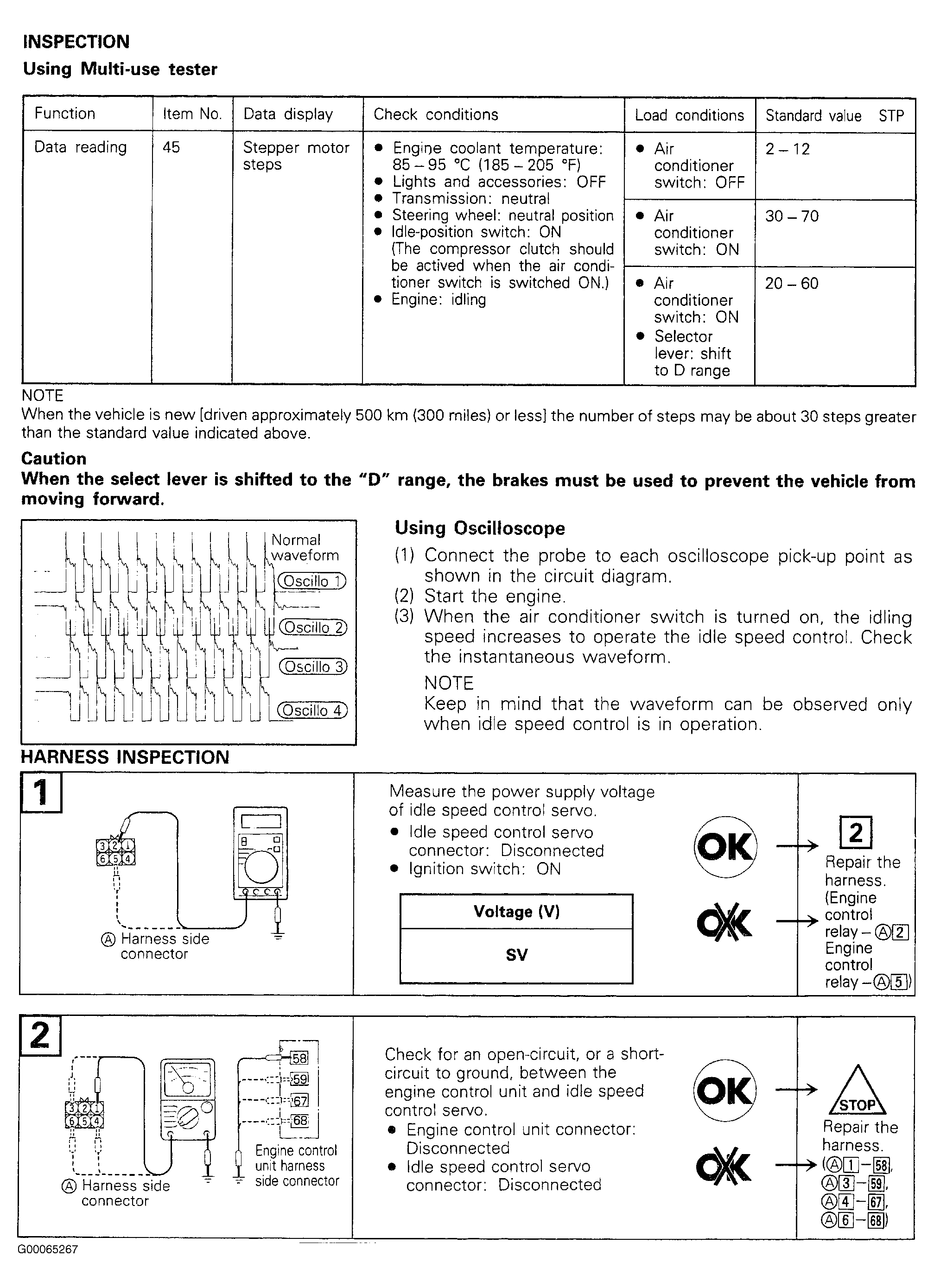

Fig 4: Idle Speed Control Servo (Stepper Motor) (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
