Scan Tool & Multi-Meter Diagnostics

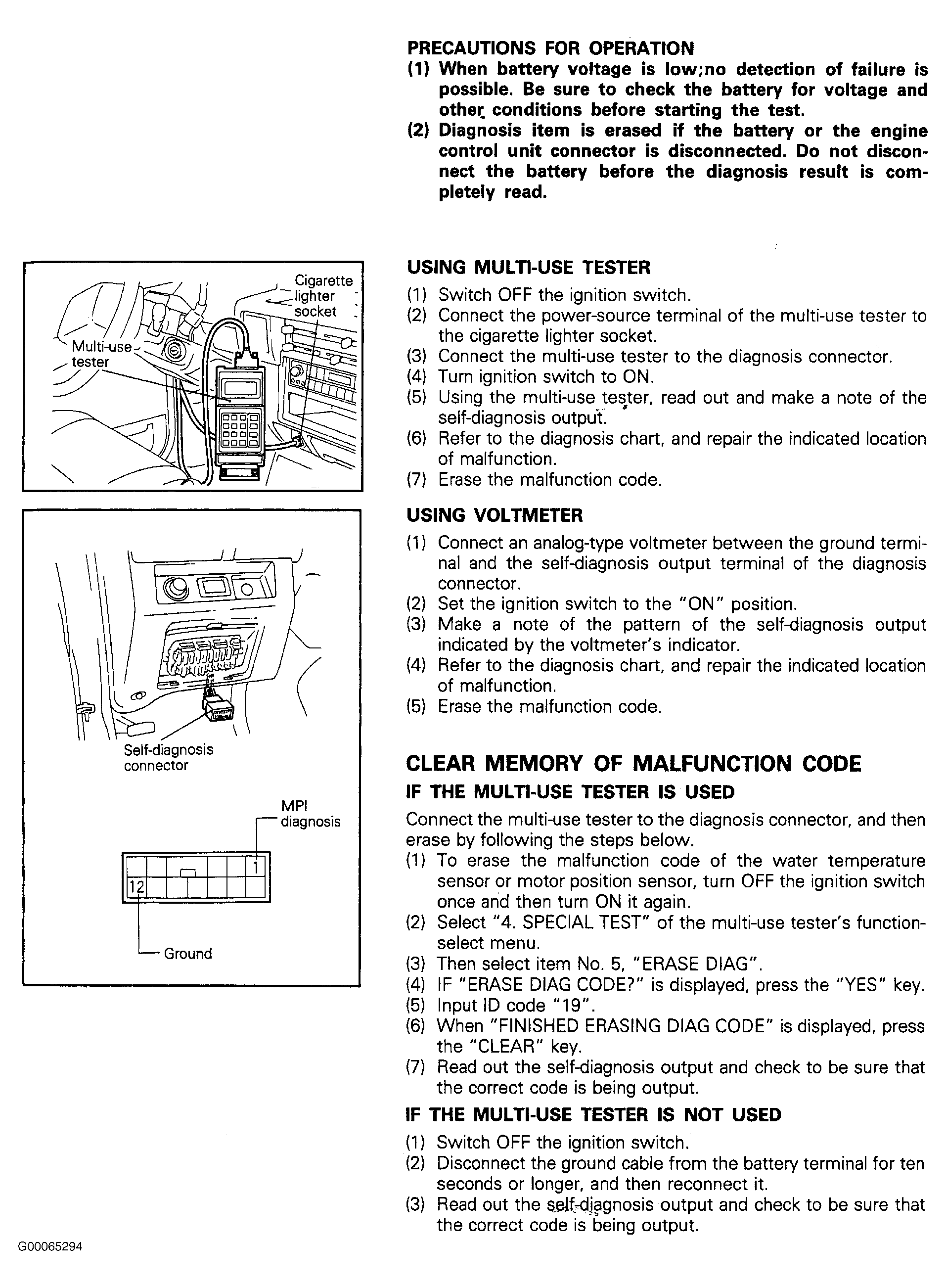

Fig 1: Scan Tool & Multi-Meter Diagnostics
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
