Home
>>
Mitsubishi
>>
1991
>>
Pickup Mighty Max 1 Ton
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Self-Diagnostics
>>
Service Adjustment Procedures (2.4L)
>>
Throttle Position Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Throttle Position Sensor

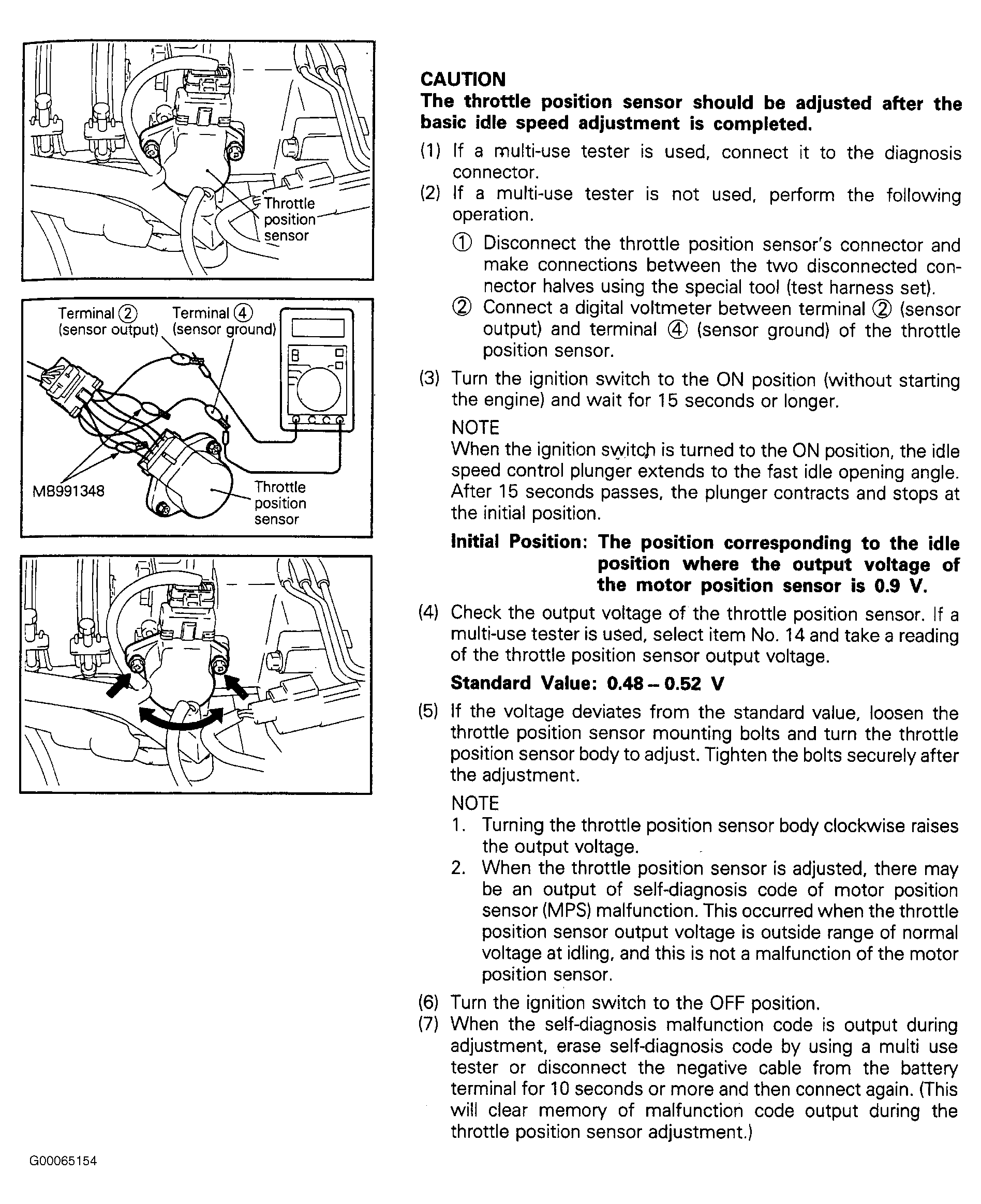

Fig 1: Throttle Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
