Transmission Throttle Control Adjustment: Montero
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1989 Mitsubishi Van, 1989 Mitsubishi Starion, 1989 Mitsubishi Sigma, 1989 Mitsubishi Precis, and 1989 Mitsubishi Pickup. However, it is still accessible from the selected car via links, so may be relevant.

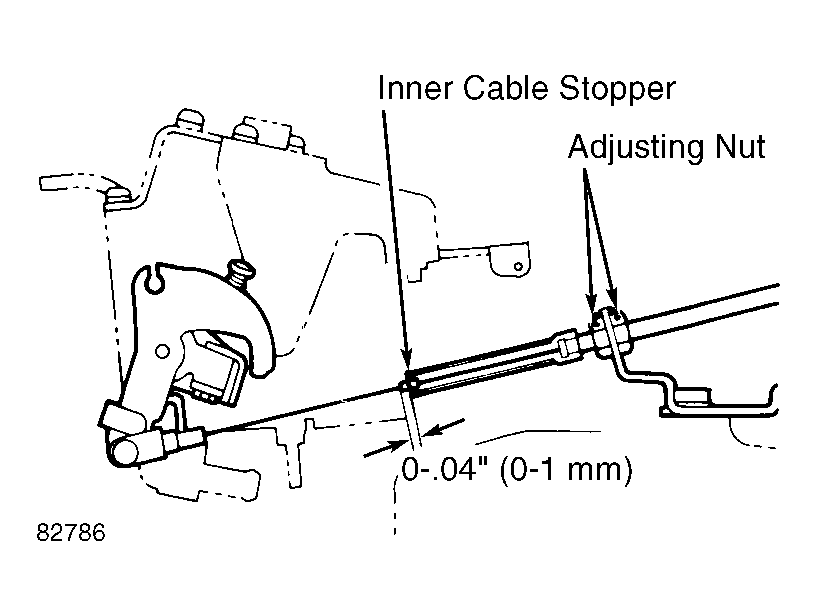

Ensure throttle lever and throttle cable bracket are not bent. Ensure distance between inner cable stopper end and dust cover is within 0-.04" (0-1.0 mm). See Fig 1.
