Excel, SCOUPE & Precis

NOTE: A scan tool connected to diagnostic connector is required for the following charts. See Figure . Item No. indicates Scan Tool Code No.
Fig 1: Code Charts - 1 of 8 (Excel, Scoupe & Precis)
G91F16407Courtesy of HYUNDAI MOTOR CO.
Fig 2: Code Charts - 2 of 8 (Excel, Scoupe & Precis)
G91G16408Courtesy of HYUNDAI MOTOR CO.
Fig 3: Code Charts - 3 of 8 (Excel, Scoupe & Precis)
G91H16409Courtesy of HYUNDAI MOTOR CO.
Fig 4: Code Charts - 4 of 8 (Excel, Scoupe & Precis)
G91A16410Courtesy of HYUNDAI MOTOR CO.
Fig 5: Code Charts - 5 of 8 (Excel, Scoupe & Precis)
G91B16411Courtesy of HYUNDAI MOTOR CO.

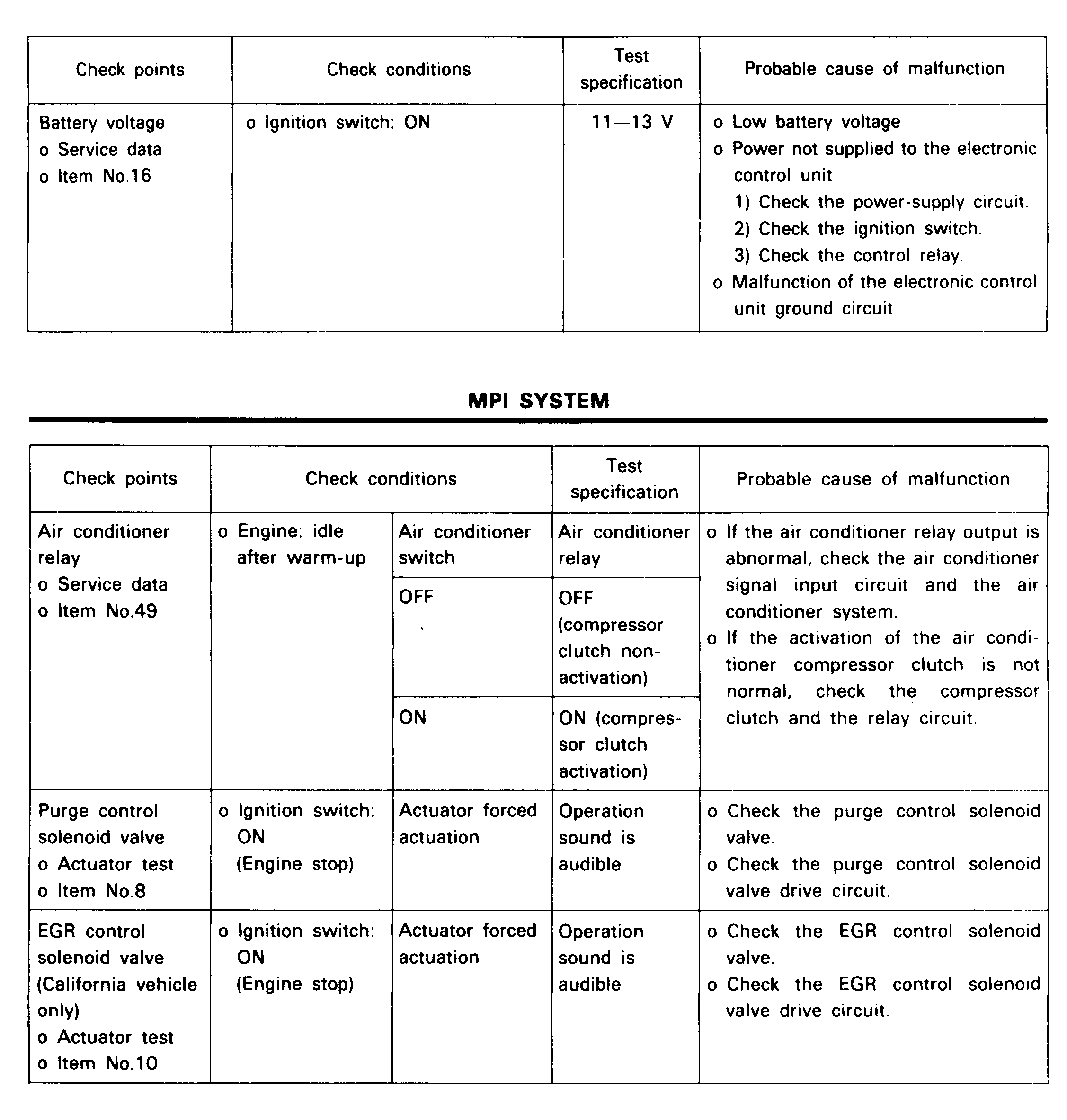

Fig 6: Code Charts - 6 of 8 (Excel, Scoupe & Precis)
G91C16412Courtesy of HYUNDAI MOTOR CO.
Fig 7: Code Charts - 7 of 8 (Excel, Scoupe & Precis)
G91D16413Courtesy of HYUNDAI MOTOR CO.
Fig 8: Code Charts - 8 of 8 (Excel, Scoupe & Precis)
G91E16414Courtesy of HYUNDAI MOTOR CO.
