Dr-3: Code 12, Airflow Sensor Circuit

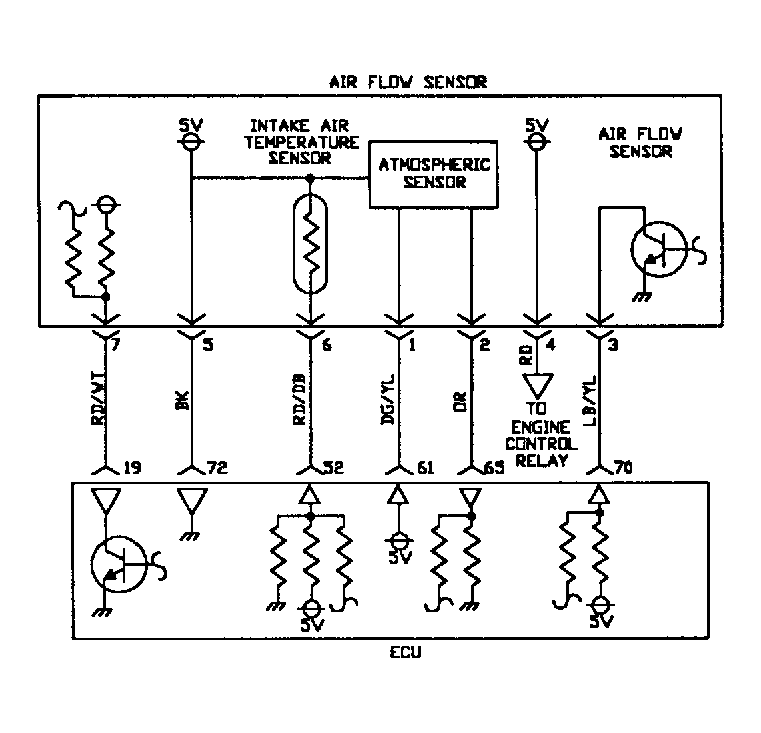

Fig 1: Test DR-3 Schematic - Code 12 - DOHC Airflow Sensor Circuit
G92J26335

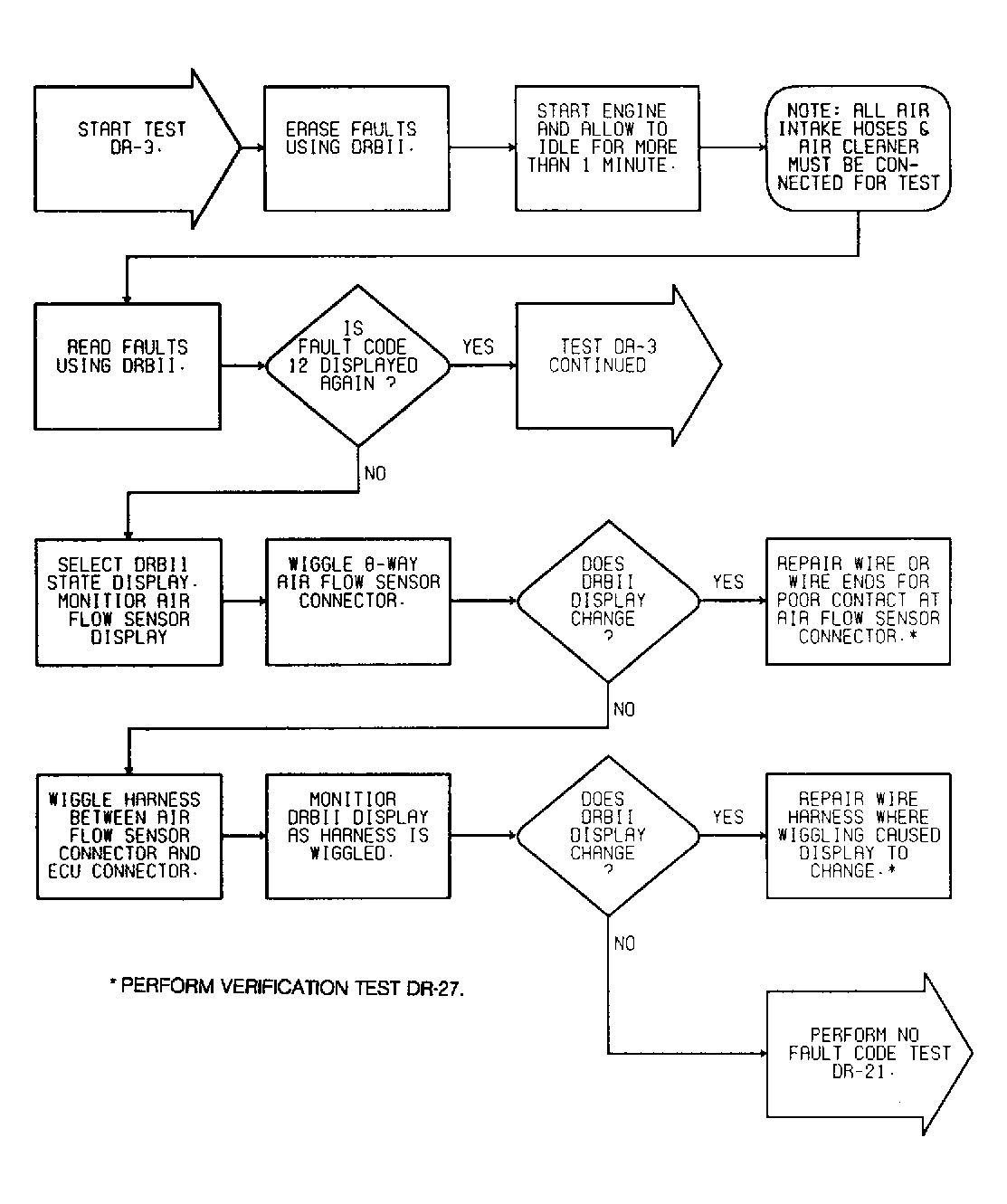

Fig 2: Test DR-3 Flow Chart - Code 12 - DOHC (1 Of 3) Airflow Sensor Circuit
G92A26336

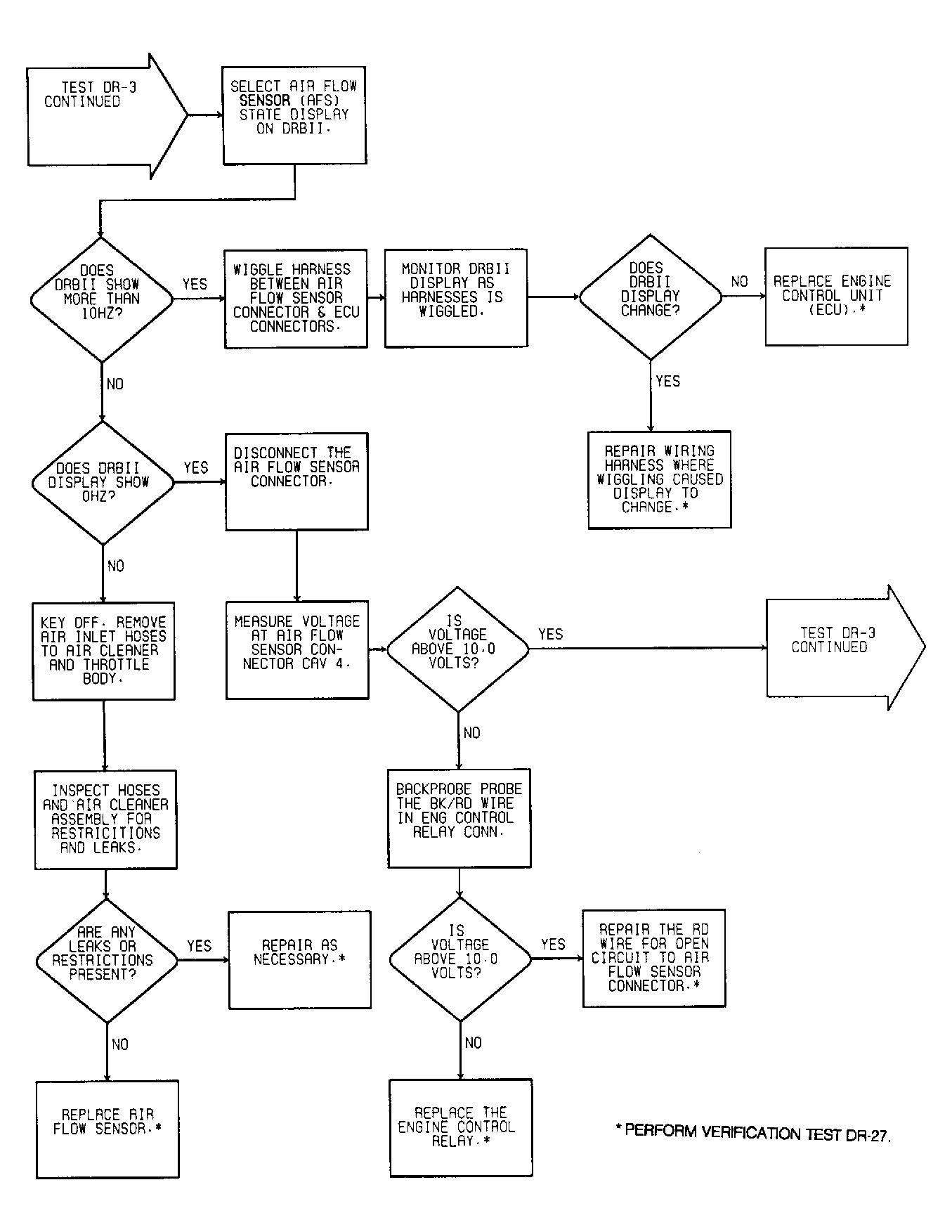

Fig 3: Test DR-3 Flow Chart - Code 12 - DOHC (2 Of 3) Airflow Sensor Circuit
G92B26337

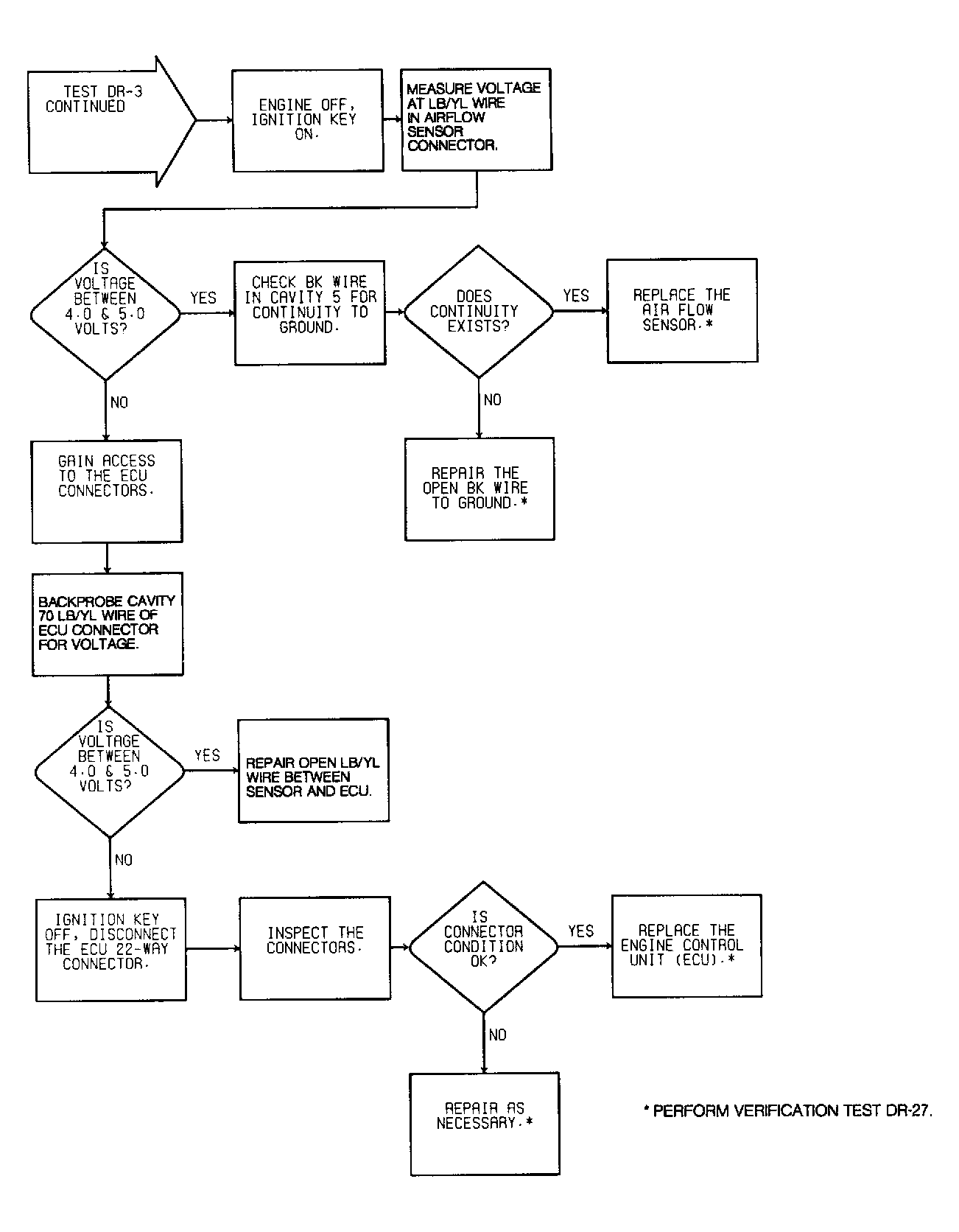

Fig 4: Test DR-3 Flow Chart - Code 12 - DOHC (3 Of 3) Airflow Sensor Circuit
G92C26338
