Dr-4: Code 13, Air Temperature Sensor Circuit

Fig 1: Test DR-4 Schematic - Code 13 - DOHC Air Temp. Sensor Circuit

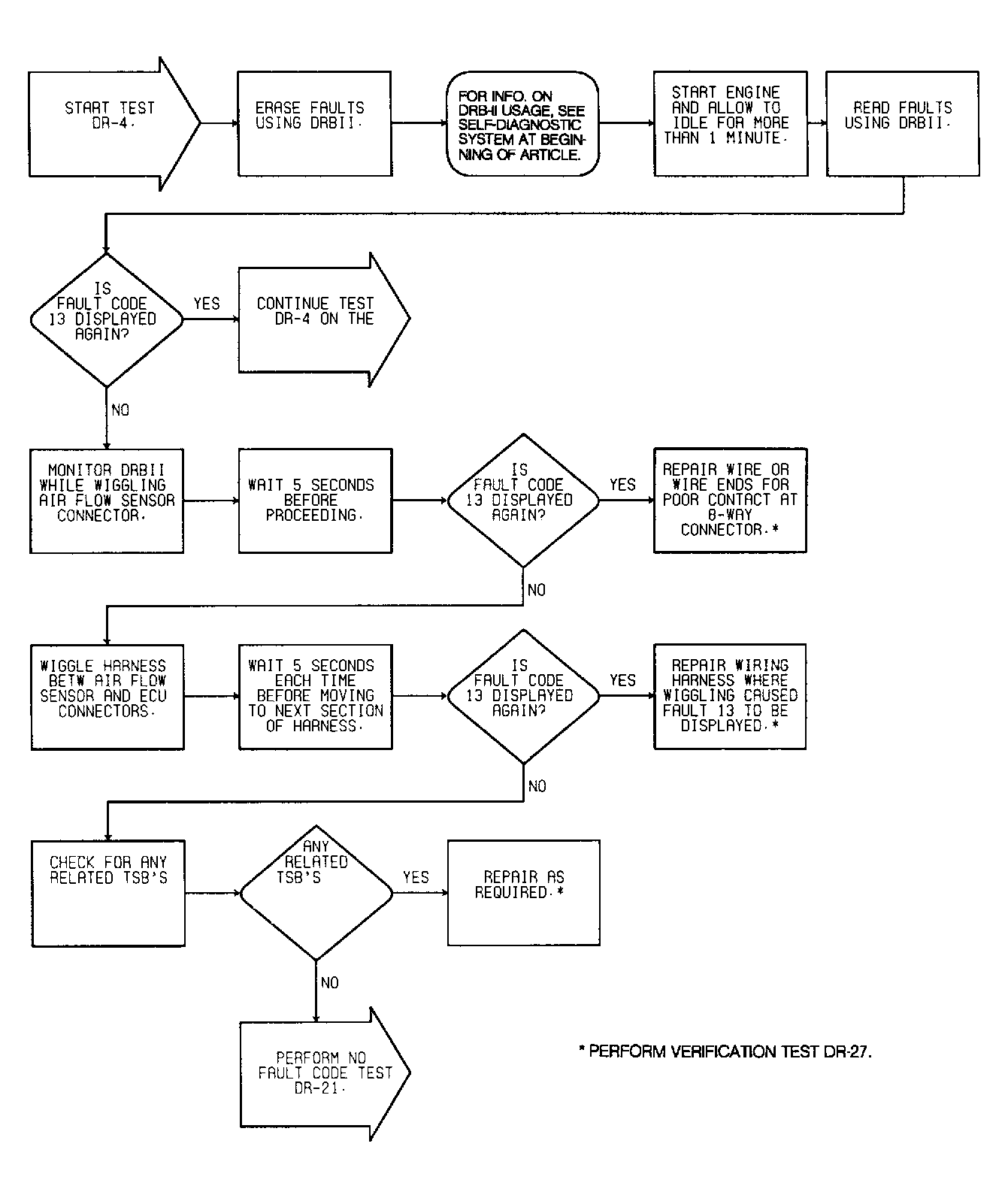

Fig 2: Test DR-4 Flow Chart - Code 13 - DOHC (1 Of 3) Air Temp. Sensor Circuit

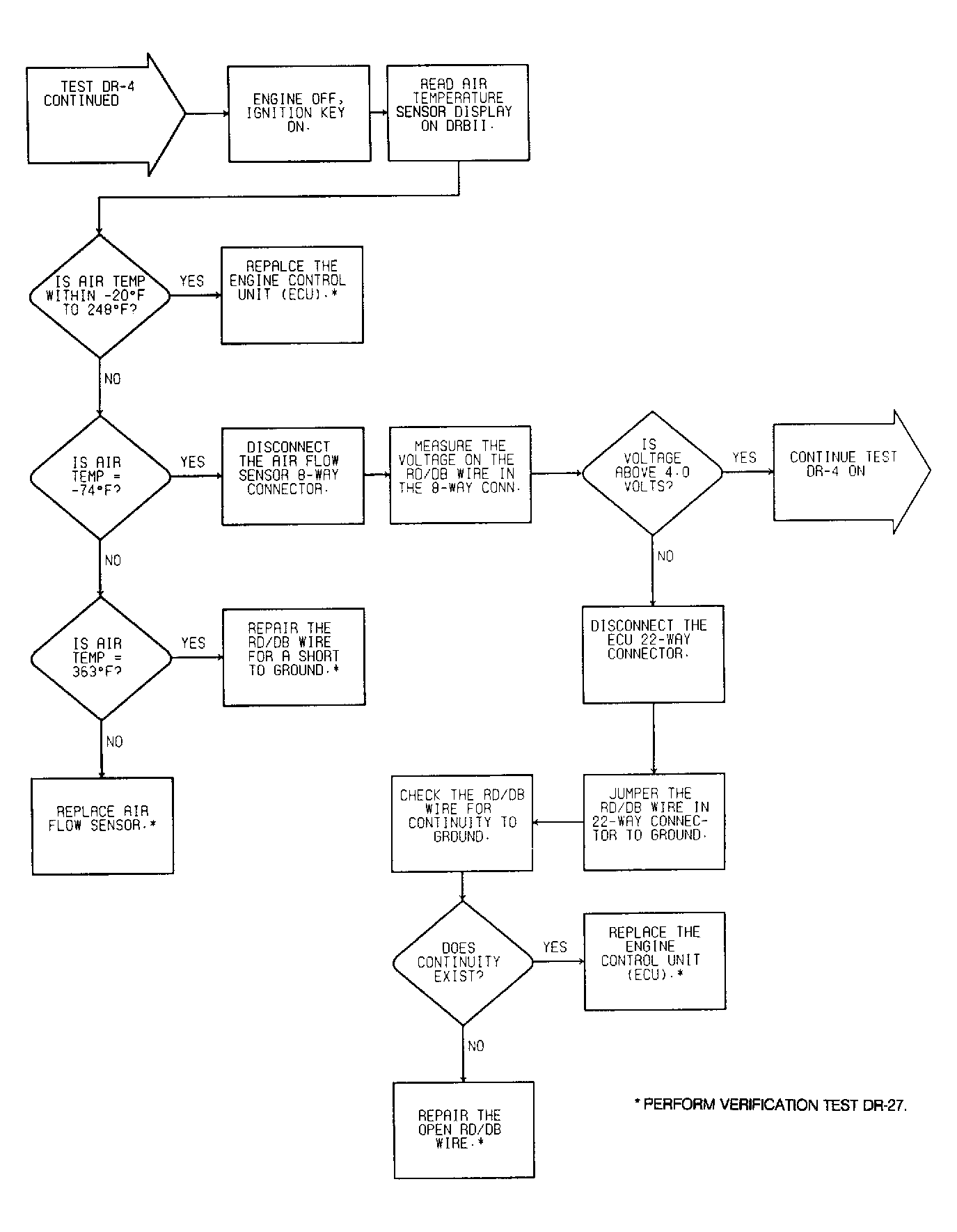

Fig 3: Test DR-4 Flow Chart - Code 13 - DOHC (2 Of 3) Air Temp. Sensor Circuit

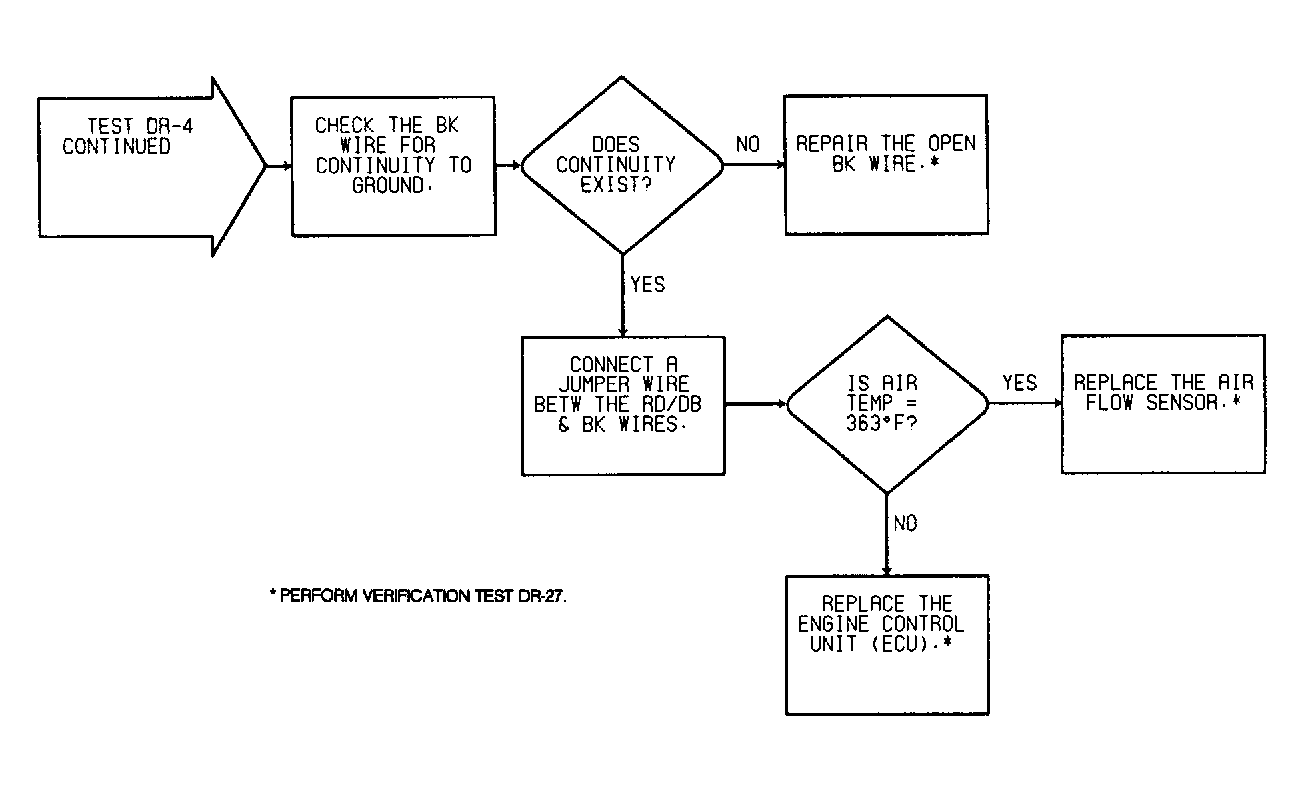

Fig 4: Test DR-4 Flow Chart - Code 13 - DOHC (3 Of 3) Air Temp. Sensor Circuit
