Dr-6: Code 21, Coolant Temperature Sensor

Fig 1: Test DR-6 Schematic - Code 21 - DOHC Coolant Temperature Sensor
G92E26348

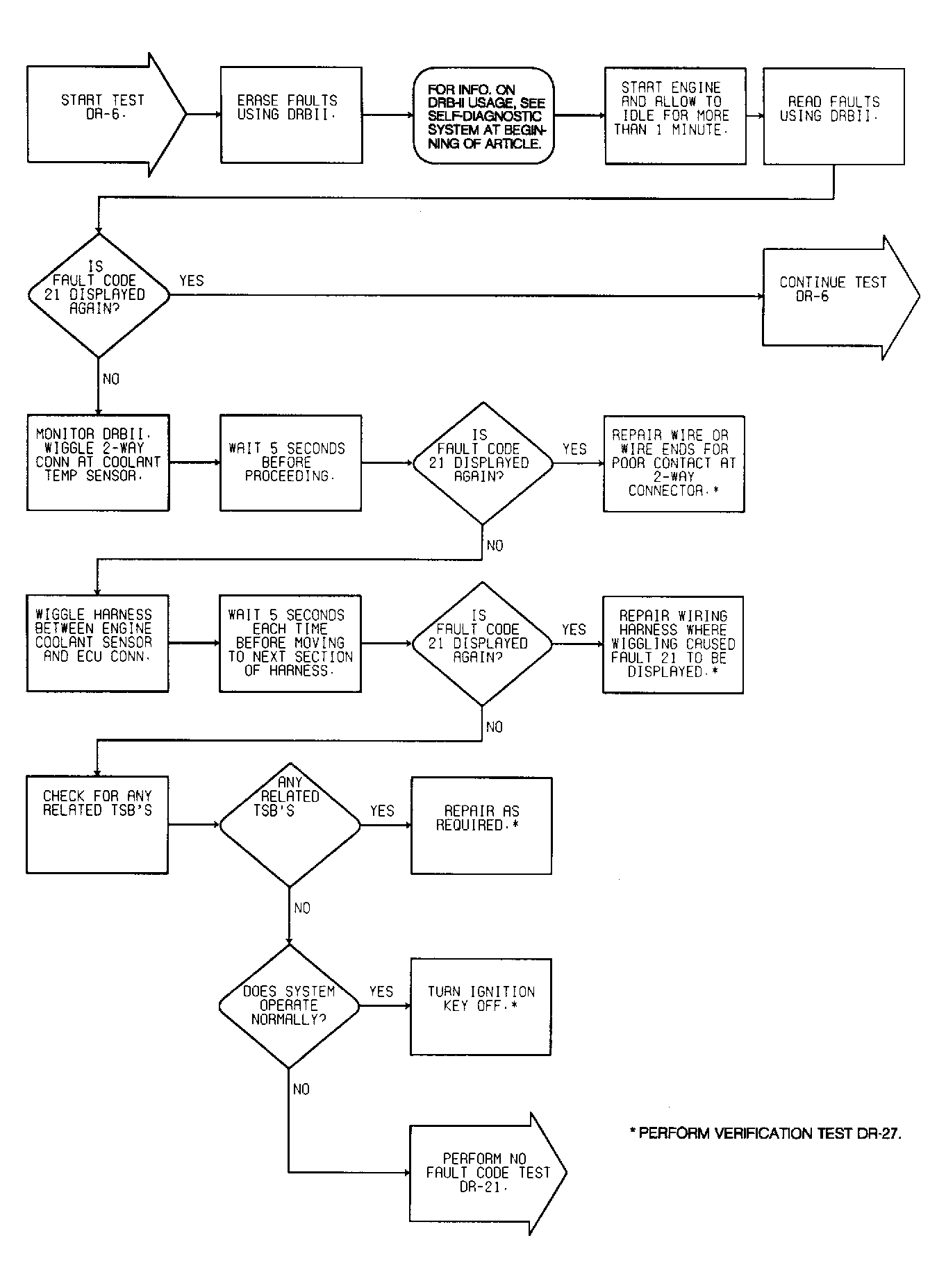

Fig 2: Test DR-6 Flow Chart - Code 21 - DOHC (1 Of 2) Coolant Temperature Sensor
G92F26349

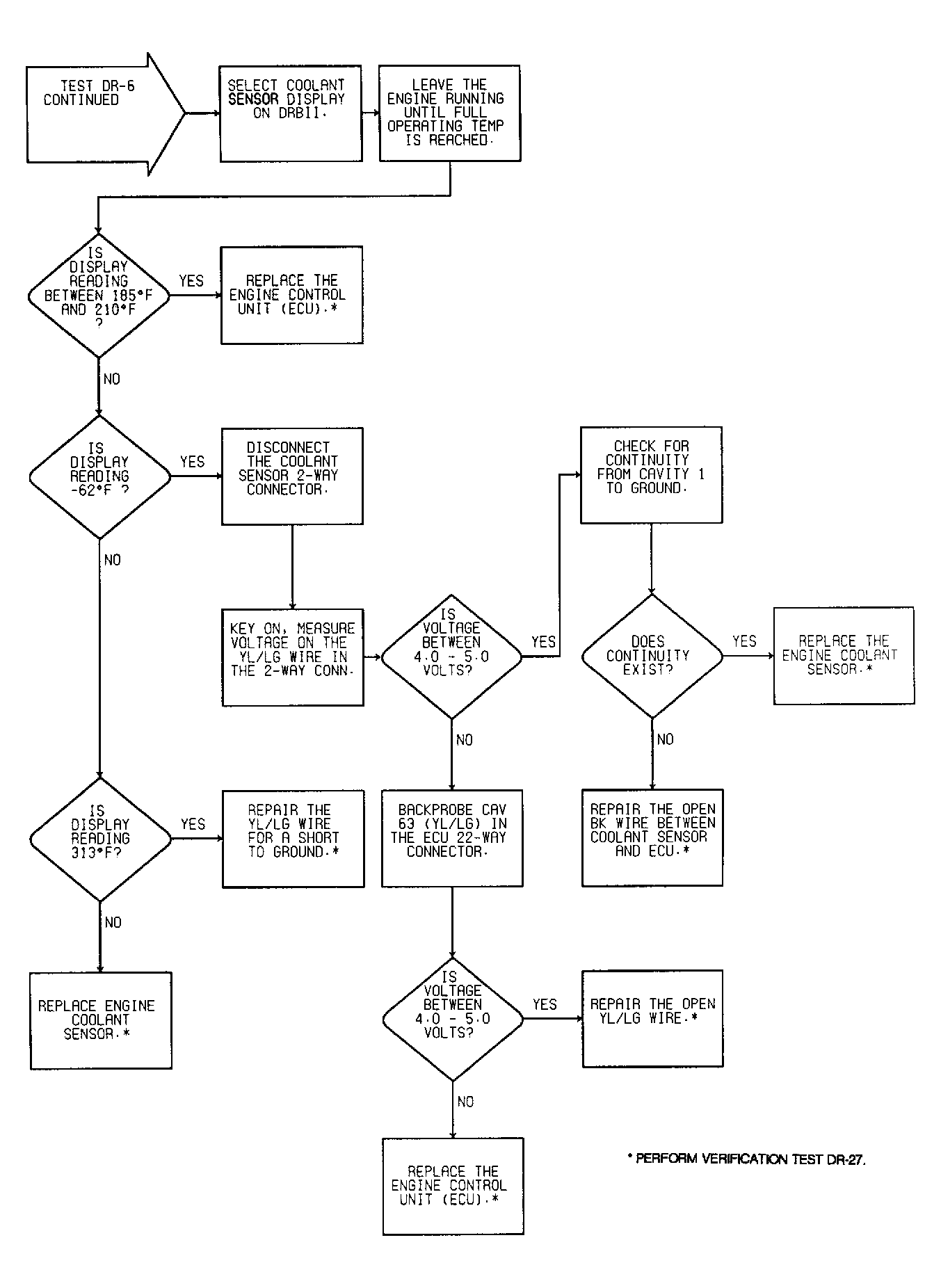

Fig 3: Test DR-6 Flow Chart - Code 21 - DOHC (2 Of 2) Coolant Temperature Sensor
G92J26350
