Testing Circuit Breaker

  1. Press the UP switch to fully close the window glass, and continue to press the switch for 10 seconds.
  2. At the moment that the UP switch is released, press the DOWN switch. The circuit breaker can be considered good at this time the door window glass begins to open within 60 seconds.

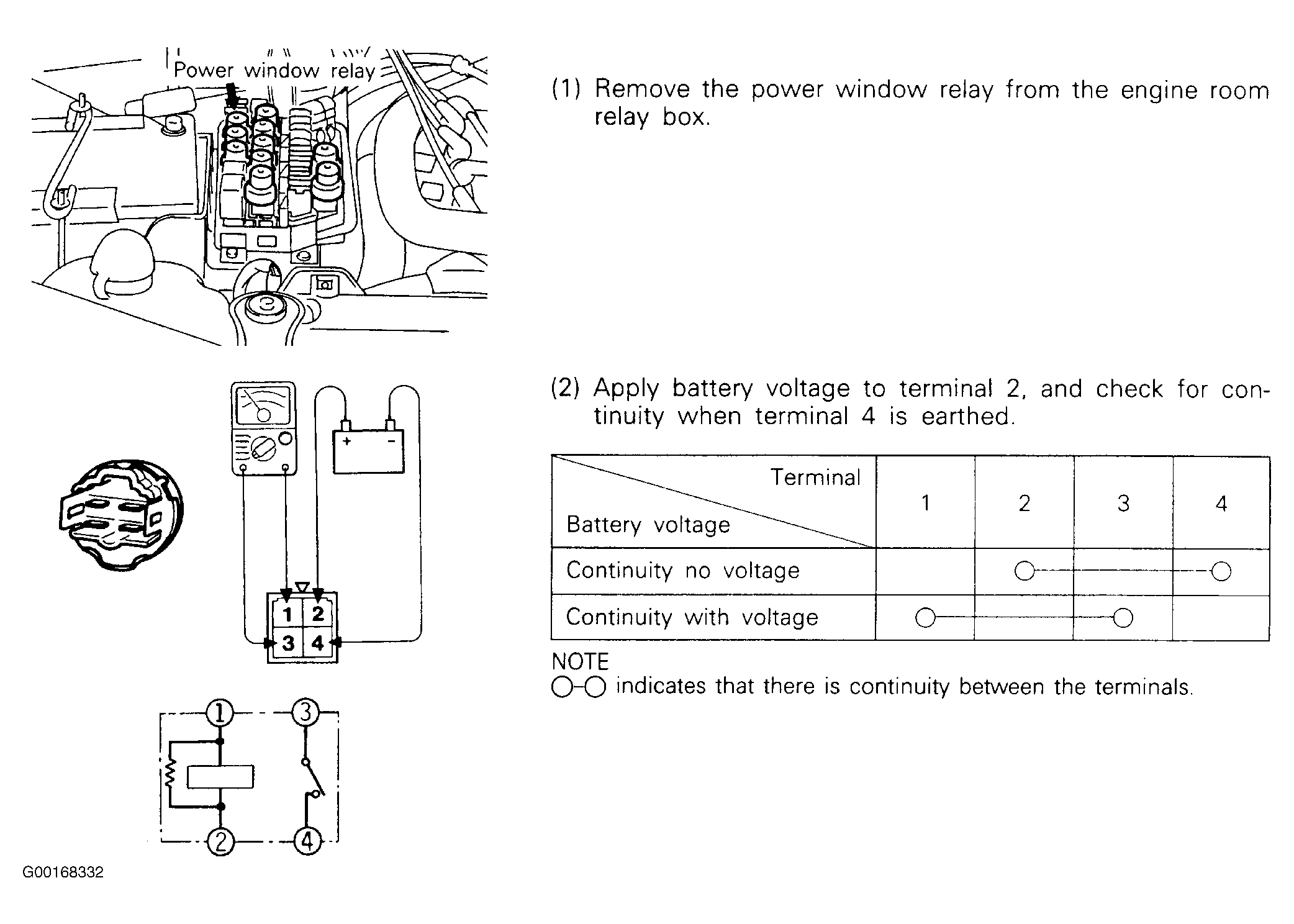

Fig 1: Testing Power Window Relay
G00168332Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
