Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Anti-Theft Alarm Dedicated Fuse Taped to wiring harness, under left side of dash.
Fuse Block Under left side of dash.
Fuse/Relay Blocks

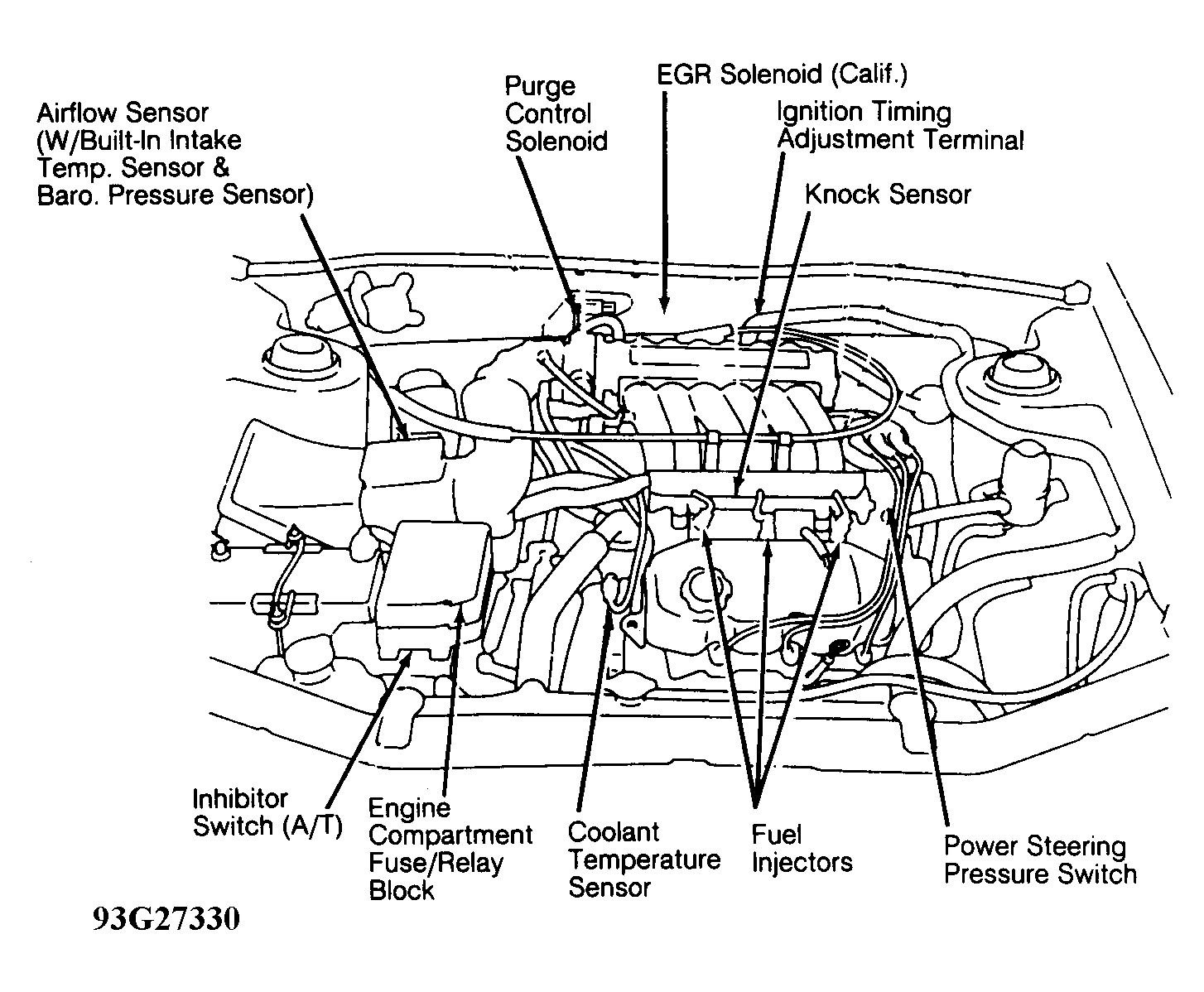

Engine Compartment On right front fender panel, near battery. See Figure .
Passenger Compartment Under left side of dash.
Fusible Links In engine compartment fuse/relay block.
