Engine Block Heater Update (TSB-99-11-009)

Publication date: 2001-05-01
Reference number: TSB-99-11-009
Supersedes refnos: TSB-01-11-002

ENGINE BLOCK HEATER UPDATE

ENGINE BLOCK HEATER UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TSB-01-11-002, Date of Issue: May, 2001

MITSUBISHI:	All Models
GROUP:	11 - Engine

Superceded Bulletin(s): TSB-99-11-009, Date of Issue: November, 1999

DESCRIPTION

Engine Block Heater Update

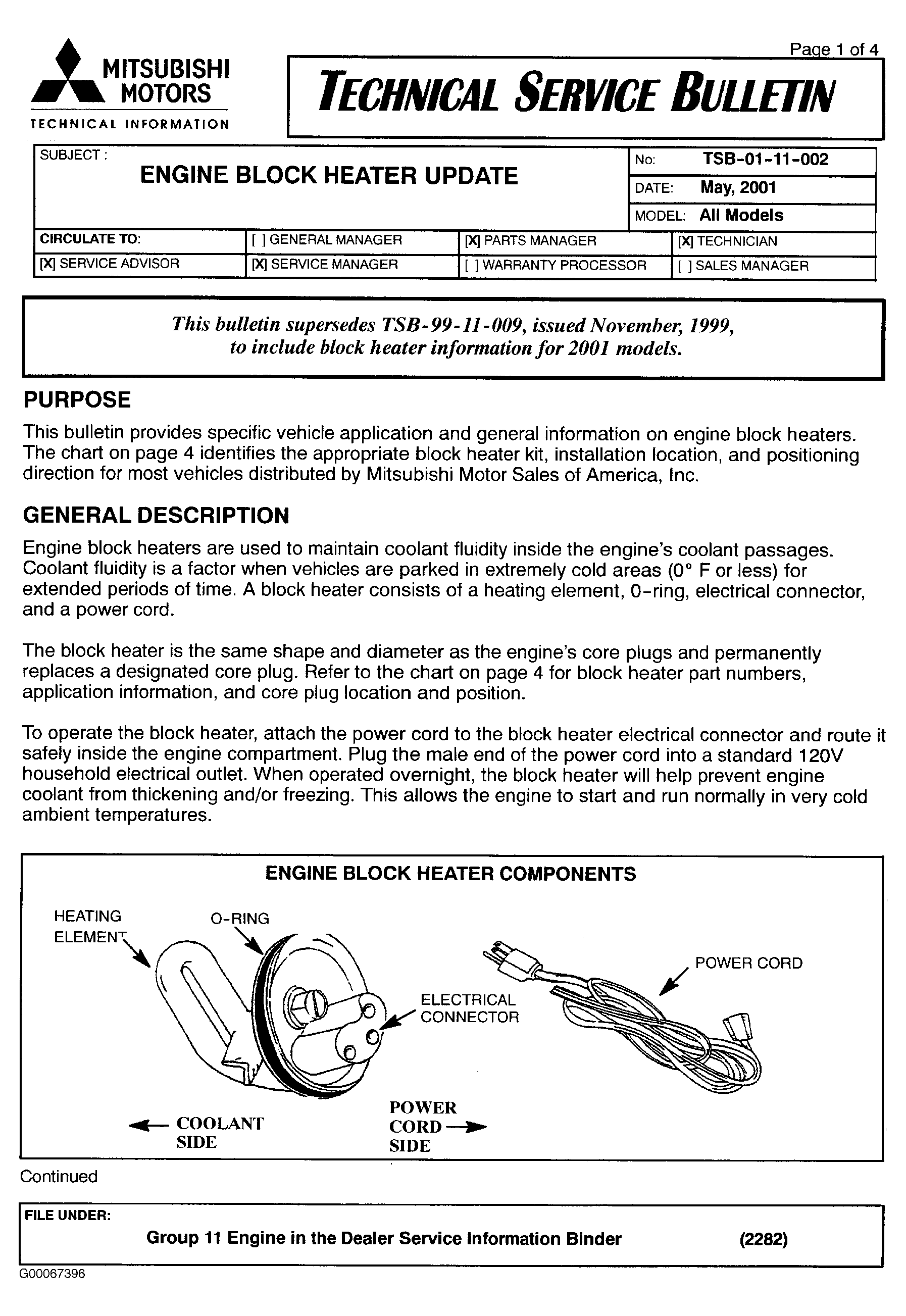

Fig 1: Page 1

G00067396

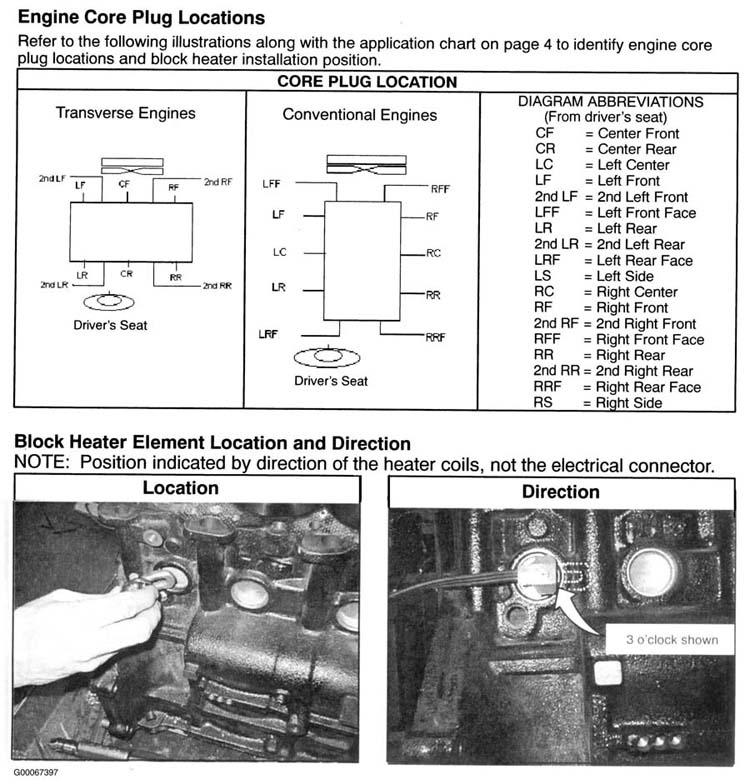

Fig 2: Page 2

G00067397

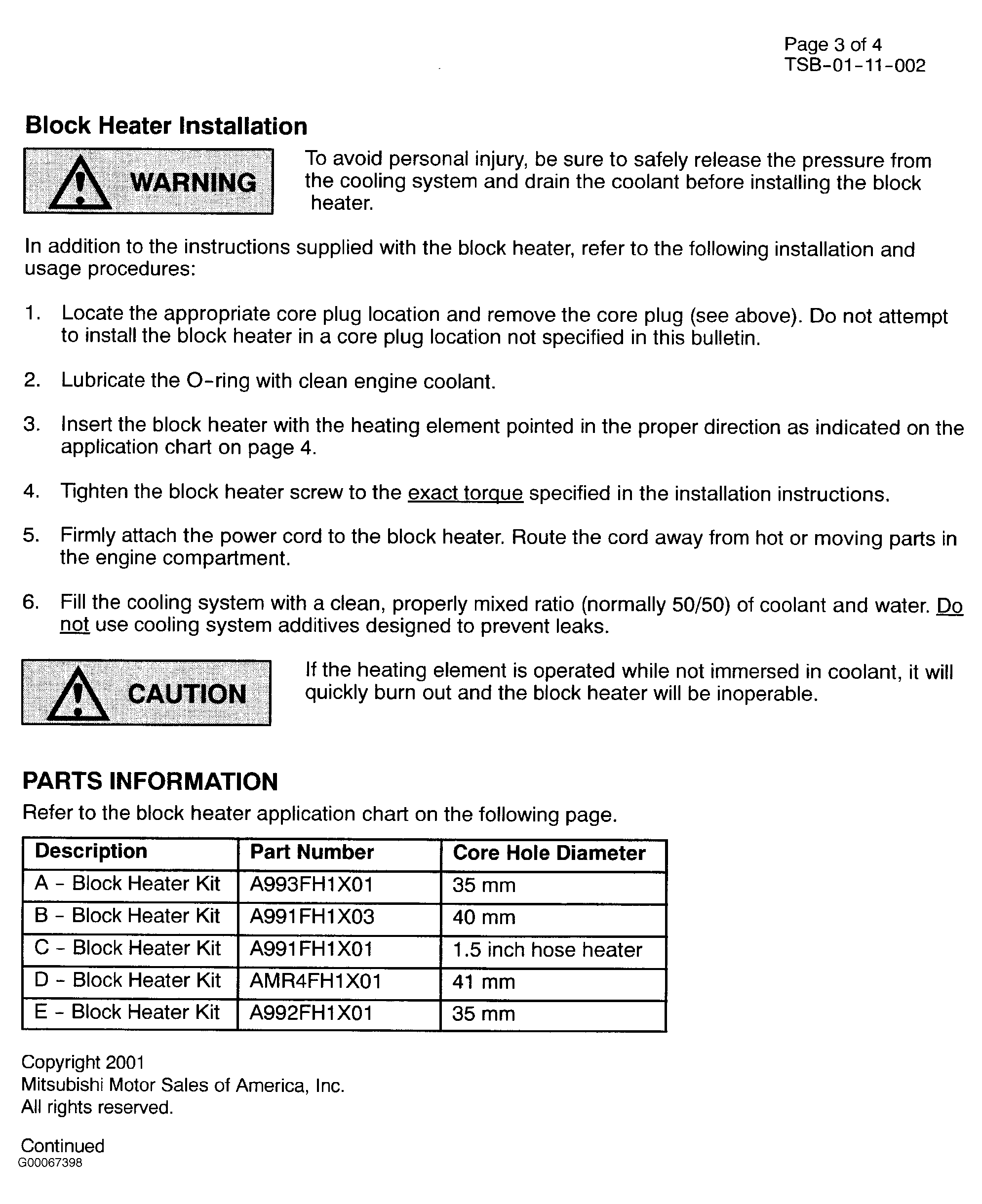

Fig 3: Page 3

G00067398

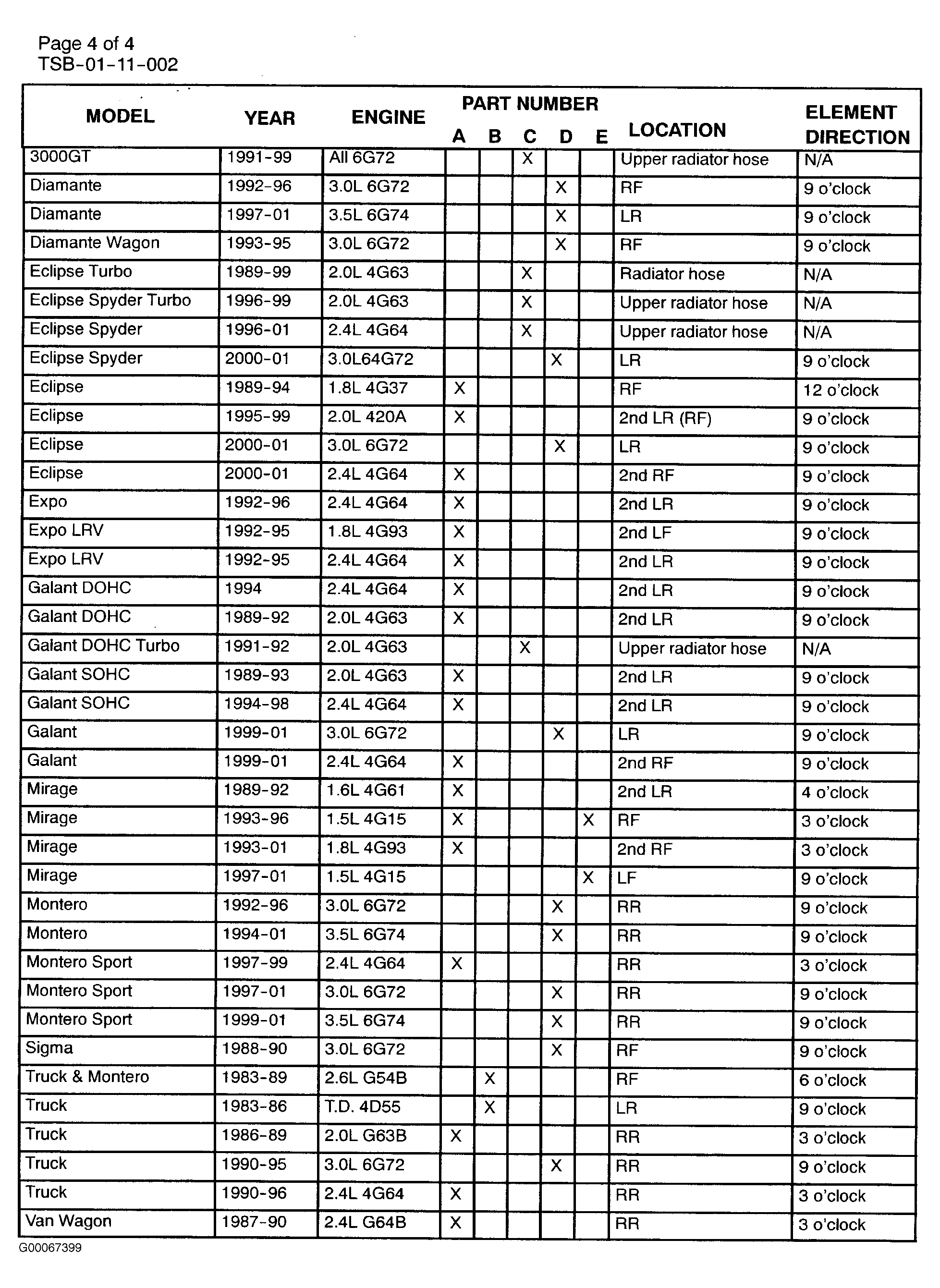

Fig 4: Page 4

G00067399
