Electric Remote Controlled Mirror Assembly

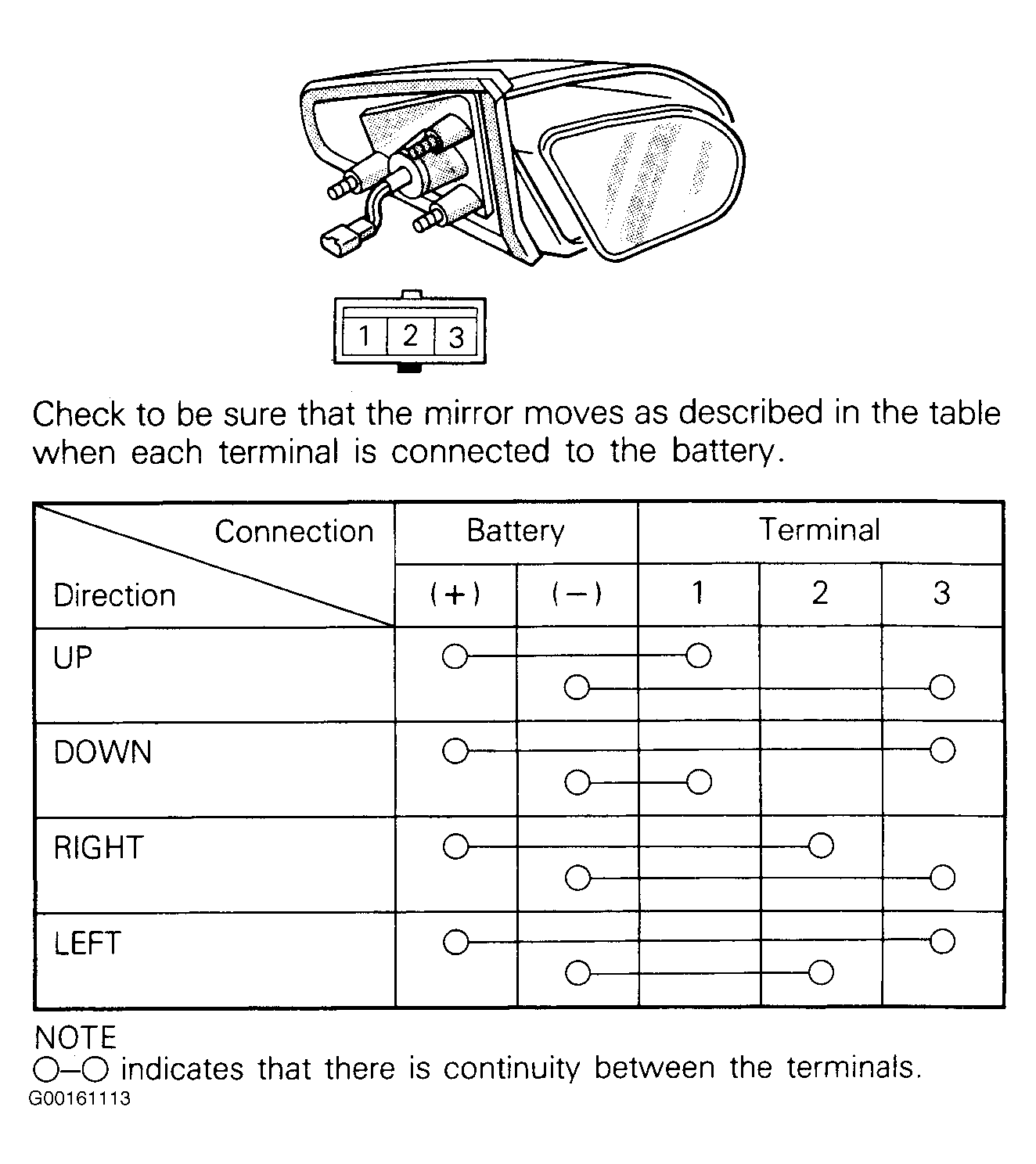

Fig 1: Testing Electric Controlled Mirror Assembly
G00161113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
