Scan Tool (All Models)

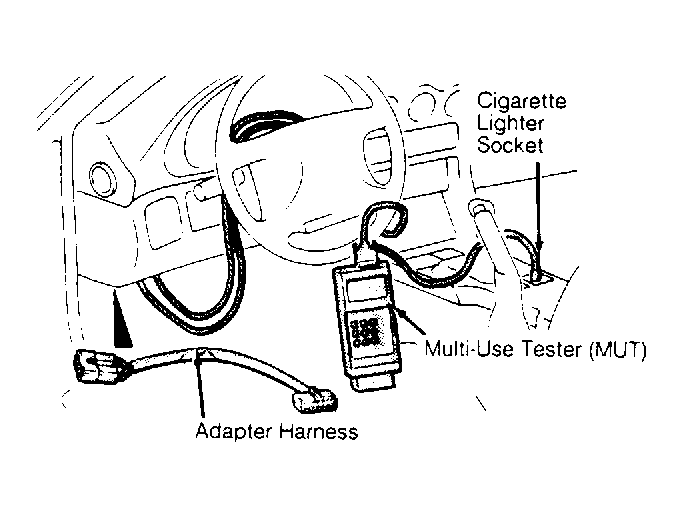

- With ignition off, connect Multi-Use Tester (MB991341) and ROM pack (MB991423) to self-diagnostic connector, located under driver side of dash, and to cigarette lighter socket. See Fig 1. Stealth and 3000GT vehicles may require Adapter Harness (MB991377).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Turn ignition on. ABS warning light should come on as ABS goes into self-diagnostic mode. Read and record all diagnostic output (trouble) codes from ECU memory. Refer to Multi-Use Tester (MUT) manufacturer's instructions for specific trouble code retrieval procedure.
- After all trouble codes have been retrieved and recorded, clear codes from ECU memory. Refer to Multi-Use Tester (MUT) manufacturer's instructions for specific trouble code clearing instructions. See TROUBLE CODE DEFINITION and appropriate CODE under DIAGNOSIS & TESTING for servicing procedure.
- If trouble codes cannot be cleared, ECU is currently detecting a malfunction. If codes can be cleared, problem is either intermittent or only appears while driving.
